Call Us Today: (800) 462-7733
Dale Electric Supply Co Inc

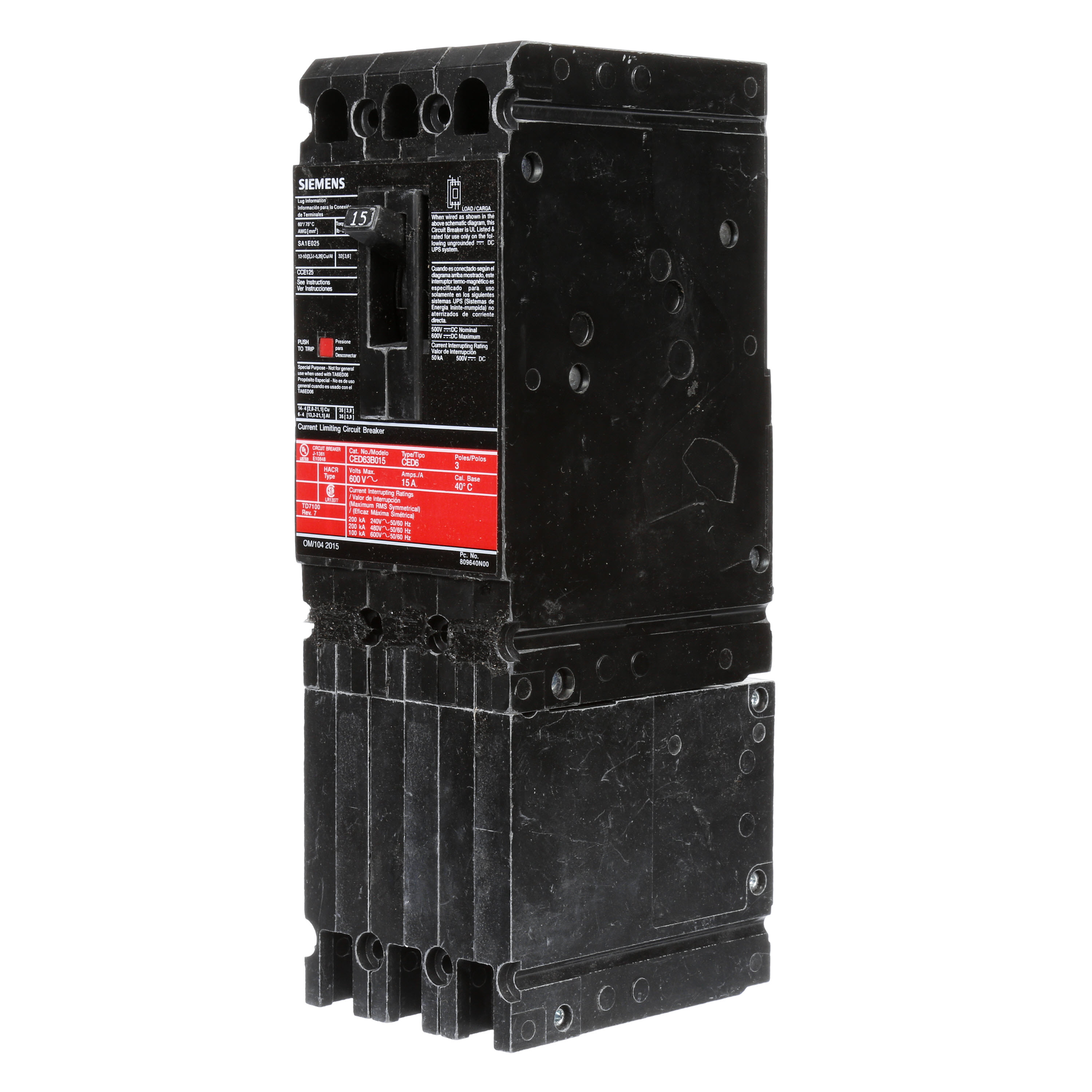

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 15A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 15A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

CED63B015

$9,572.15 / EA

manufacturer discounts
learn about discounts

  • $8,581.92 for $1,500.00+
  • $8,251.85 for $2,500.00+
  • $7,921.78 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 15A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 15A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.

150

UPC
783643210660
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
3
Type:
CED6
Voltage Rating:
600//500 VAC//VDC
Actuator:
Varying
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
ED
Frequency Rating:
50/60 Hz
Height:
10.2 in
Interrupt Rating:
100KAIC
Length:
5.500
Load Rating:
N/A
Material:
N/A
Number Of Poles:
3
Operating Temperature:
40C
Standard:
HACR
Sub Brand:
Sentron
Trip Range:
N/A
Trip Type:
Thermal-Magnetic
Type:
CED6
Voltage Rating:
600//500 VAC//VDC
Width:
3.400
