$16,369.53 / EA
manufacturer discounts
learn about discounts
- $14,676.13 for $1,500.00+
- $14,111.66 for $2,500.00+
- $13,547.20 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

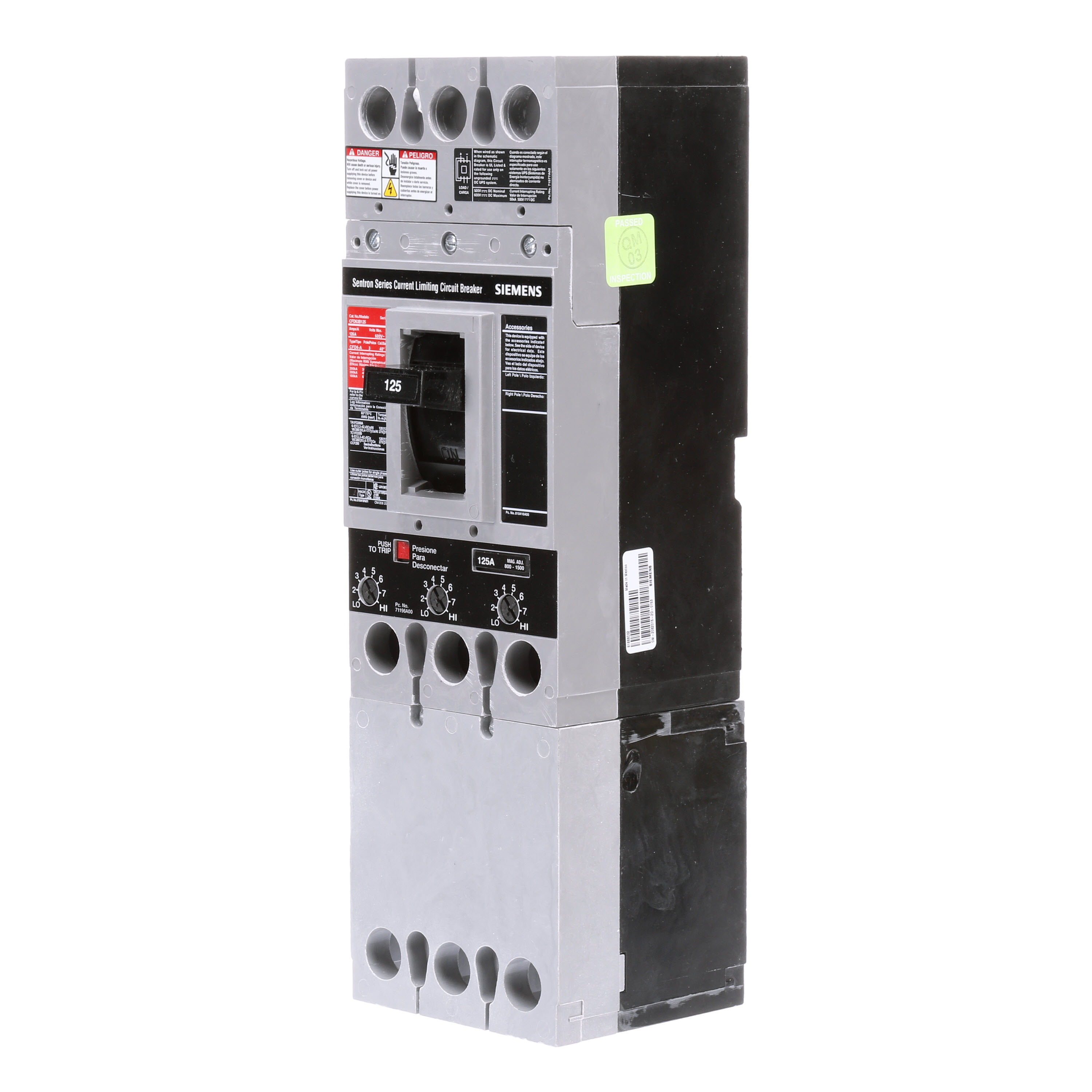

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 125A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 4.50 x 14.3 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 125A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 4.50 x 14.3 x 4.00.
150
- UPC
- 783643212169
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material:
- N/A
- Number Of Poles:
- 3
- Type:
- CFD6
- Voltage Rating:
- 600//500 VAC//VDC
- Actuator:
- Varying
- Auxiliary Contacts:
- N/A
- Connection:
- N/A
- Enclosure:
- Varying
- Environmental Conditions:
- N/A
- Frame:
- FD
- Frequency Rating:
- 50/60 Hz
- Height:
- 15 in
- Interrupt Rating:
- 100KAIC
- Length:
- 7.000
- Load Rating:
- N/A
- Material:
- N/A
- Number Of Poles:
- 3
- Operating Temperature:
- 40C
- Standard:
- UL/HACR
- Sub Brand:
- Sentron
- Trip Range:
- 800-1500
- Trip Type:
- Thermal-Magnetic
- Type:
- CFD6
- Voltage Rating:
- 600//500 VAC//VDC
- Width:
- 6.000
