CH30J2
SKU: CH30J2
MPN: CH30J2
Key specs
View all- Amperage Rating
- 30 A
- Material
- Tin-plated copper clipThermoplastic housing
- Size
- 2.56 In Length X 2.83 In Width X 4.59 In Height
- Type
- Modular fuse holder
- Voltage Rating
- 600 VAC//VDC
- Wattage
- 85 CEL
Description
Product overview

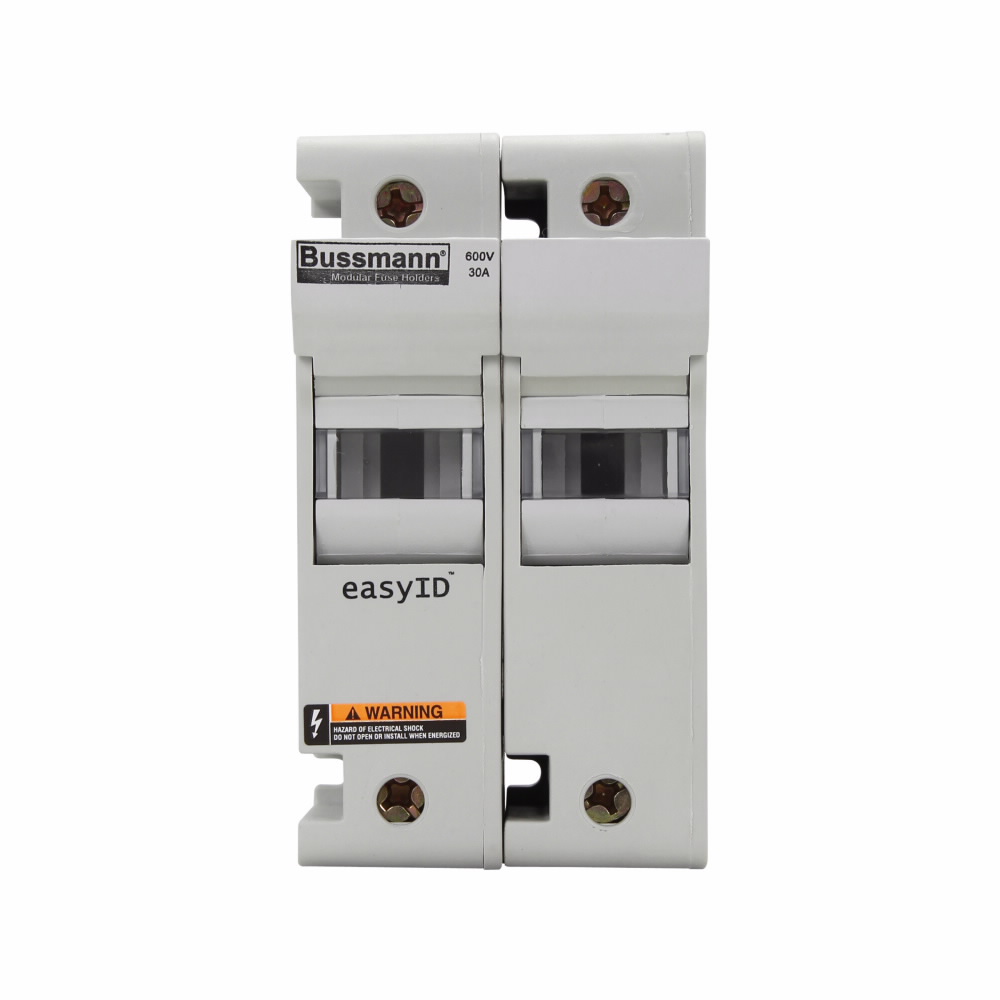

Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Two-pole
Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Two-pole
Manufacturer highlights
Eatons Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented desig...
Eatons Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS CH30J2 30AJ MODULEAR FUSEHOLDE
- Invoice description
- 30AJ MODULEAR FUSEHOLDER 2 POLE
Specifications
- UPC
- 051712630849
- UNSPSC
- 39121624
- Country of Origin
- CN
- Amperage Rating
- 30 A
- Material
- Tin-plated copper clipThermoplastic housing
- Size
- 2.56 In Length X 2.83 In Width X 4.59 In Height
- Type
- Modular fuse holder
- Voltage Rating
- 600 VAC//VDC
- Wattage
- 85 CEL
- Amperage Rating
- 30 A
- Class
- J
- Dimensions
- 4.5000 IN X 4.0000 IN X 2.0000 IN
- Material
- Tin-plated copper clipThermoplastic housing
- Mounting
- 35 mm DIN Rail/Panel
- Operating Temperature
- 85 Deg C
- Size
- 2.56 In Length X 2.83 In Width X 4.59 In Height
- Standard
- Contact Manufacturer,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- Modular fuse holder
- Voltage Rating
- 600 VAC//VDC
- Wattage
- 85 CEL
