$136.49 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

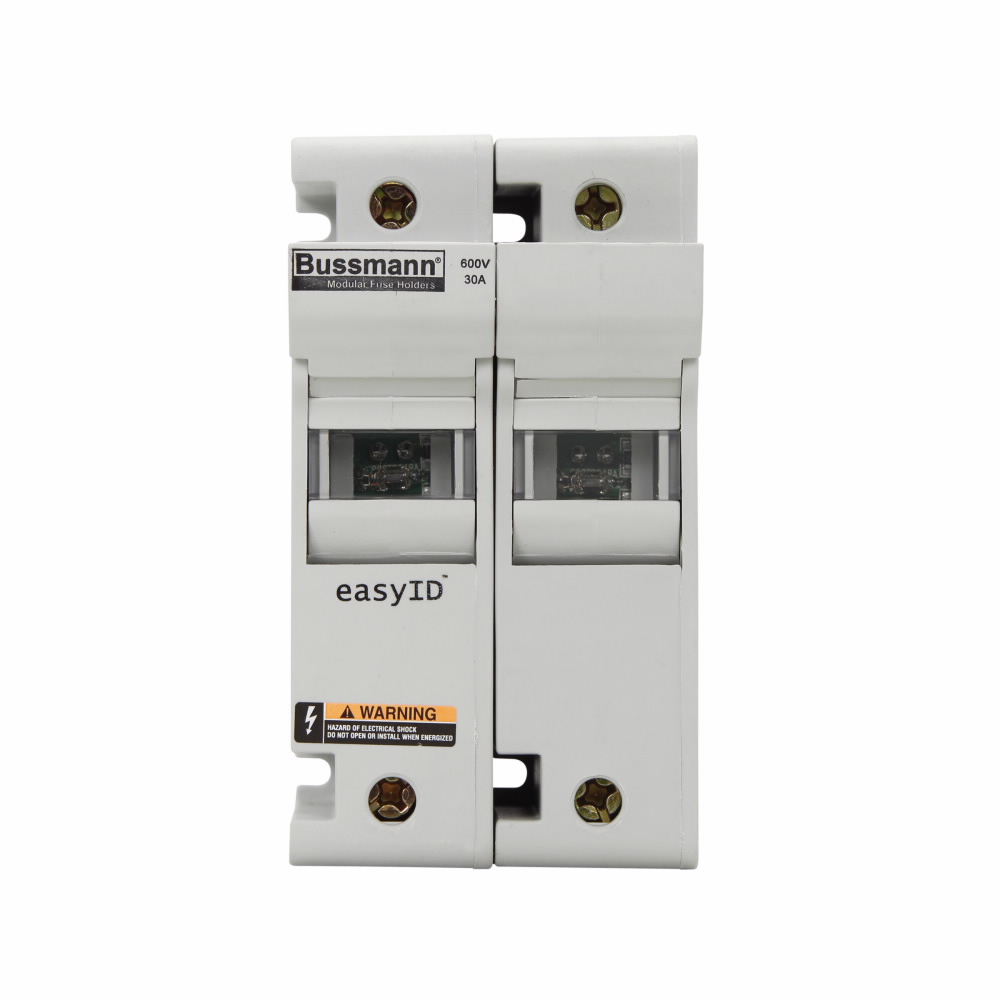

Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Two-pole, Neon lamp
Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Two-pole, Neon lamp
Eaton�s Bussmann� series power distribution fuse blocks (PDFB) combine a fuse block and power distri...150
Eaton�s Bussmann� series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
- UPC
- 051712630856
- UNSPSC
- 39121624
- Country of Origin
- CN
- Amperage Rating:
- 30 A
- Material:
- Tin-plated copper clipThermoplastic housing
- Size:
- 2.56 In Length X 2.83 In Width X 4.59 In Height
- Type:
- Modular fuse holder
- Voltage Rating:
- 600 VAC//VDC
- Wattage:
- 85 CEL
- Amperage Rating:
- 30 A
- Class:
- J
- Dimensions:
- 2.5600 IN X 2.8300 IN X 4.5900 IN
- Material:
- Tin-plated copper clipThermoplastic housing
- Mounting:
- 35 mm DIN Rail/Panel
- Operating Temperature:
- 85 Deg C
- Size:
- 2.56 In Length X 2.83 In Width X 4.59 In Height
- Standard:
- Contact Manufacturer,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Modular fuse holder
- Voltage Rating:
- 600 VAC//VDC
- Wattage:
- 85 CEL
BG3032B-EDF
$84.17 /ea
Eaton Bussmann series BG open fuse block, 480V, 25-30A, Box lug, Two-pole
| Attributed Data | Included |
|---|---|
| Class | G Yes |
| Connection | Box lug Yes |
| Dimensions | 3.0000 IN X 1.6300 IN X 1.2200 IN Yes |
| Material | Thermoplastic Yes |
| Mounting | Din Rail Yes |
| Size | 3.00 In Length X 1.63 In Width X 1.22 In Height Yes |
| Standard | Contact Manufacturer,RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Open fuse block Yes |
DIS10-GY
$5.28 /ea
10AMP 300V DISCONNECT FDTHRU TERM BLCK
| Attributed Data | Included |
|---|---|
| Color | Gray Yes |
| Connection | M3 Screw Yes |
| Material | Zinc Plated Steel Screw Yes |
| Size | 5.10 mm Width X 59.00 mm Depth X 46.70 mm Height Yes |
| Standard | UL, IEC Yes |
| Type | Disconnect Feed Through Yes |
S-8301-10-EDF
$63.81 /ea
30A 300V 1/4" x 1-1/4" 10 Pole Fuseblock, Screw Terminal
| Attributed Data | Included |
|---|---|
| Connection | Screw Yes |
| Material | Bronze/Tin/Thermoplastic Yes |
| Mounting | Bolt-In Yes |
| Operating Temperature | 130 Deg C Yes |
| Size | 2.16 In Length X 0.50 In Width X 0.56 In Height Yes |
| Standard | UL, CSA, CE Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
BG3032B-EDF
Eaton Bussmann series BG open fuse block, 480V, 25-30A, Box lug, Two-pole
$84.17 / EA
|
DIS10-GY
10AMP 300V DISCONNECT FDTHRU TERM BLCK
$5.28 / EA
|
S-8301-10-EDF
30A 300V 1/4" x 1-1/4" 10 Pole Fuseblock, Screw Terminal
$63.81 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 10/16 A 10/16 A | 25 to 30 A 25 to 30 A | 25/30 A 25/30 A |
| Class | G G | ||
| Color | Gray Gray | ||
| Connection | Box lug Box lug | M3 Screw M3 Screw | Screw Screw |
| Dimensions | 3.0000 IN X 1.6300 IN X 1.2200 IN 3.0000 IN X 1.6300 IN X 1.2200 IN | ||
| Material | Bronze/Tin/Thermoplastic Bronze/Tin/Thermoplastic | Thermoplastic Thermoplastic | Zinc Plated Steel Screw Zinc Plated Steel Screw |
| Mounting | Bolt-In Bolt-In | Din Rail Din Rail | |
| Operating Temperature | 130 Deg C 130 Deg C | ||
| Size | 2.16 In Length X 0.50 In Width X 0.56 In Height 2.16 In Length X 0.50 In Width X 0.56 In Height | 3.00 In Length X 1.63 In Width X 1.22 In Height 3.00 In Length X 1.63 In Width X 1.22 In Height | 5.10 mm Width X 59.00 mm Depth X 46.70 mm Height 5.10 mm Width X 59.00 mm Depth X 46.70 mm Height |
| Standard | Contact Manufacturer,RoHS Compliant Contact Manufacturer,RoHS Compliant | UL, CSA, CE UL, CSA, CE | UL, IEC UL, IEC |
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Disconnect Feed Through Disconnect Feed Through | Open fuse block Open fuse block | |
| Voltage Rating | 300 VAC//VDC 300 VAC//VDC | 300/800 V 300/800 V | 480 V 480 V |
