CHCC3DIU
SKU: CHCC3DIU
MPN: CHCC3DIU
Key specs
View all- Amperage Rating
- 30 A
- Size
- 2.067 In Width X 3.275 In Depth X 2.909 In Height
- Type
- Modular fuse holder
- Voltage Rating
- 48 VDC
- Wattage
- -20 CEL
Description
Product overview

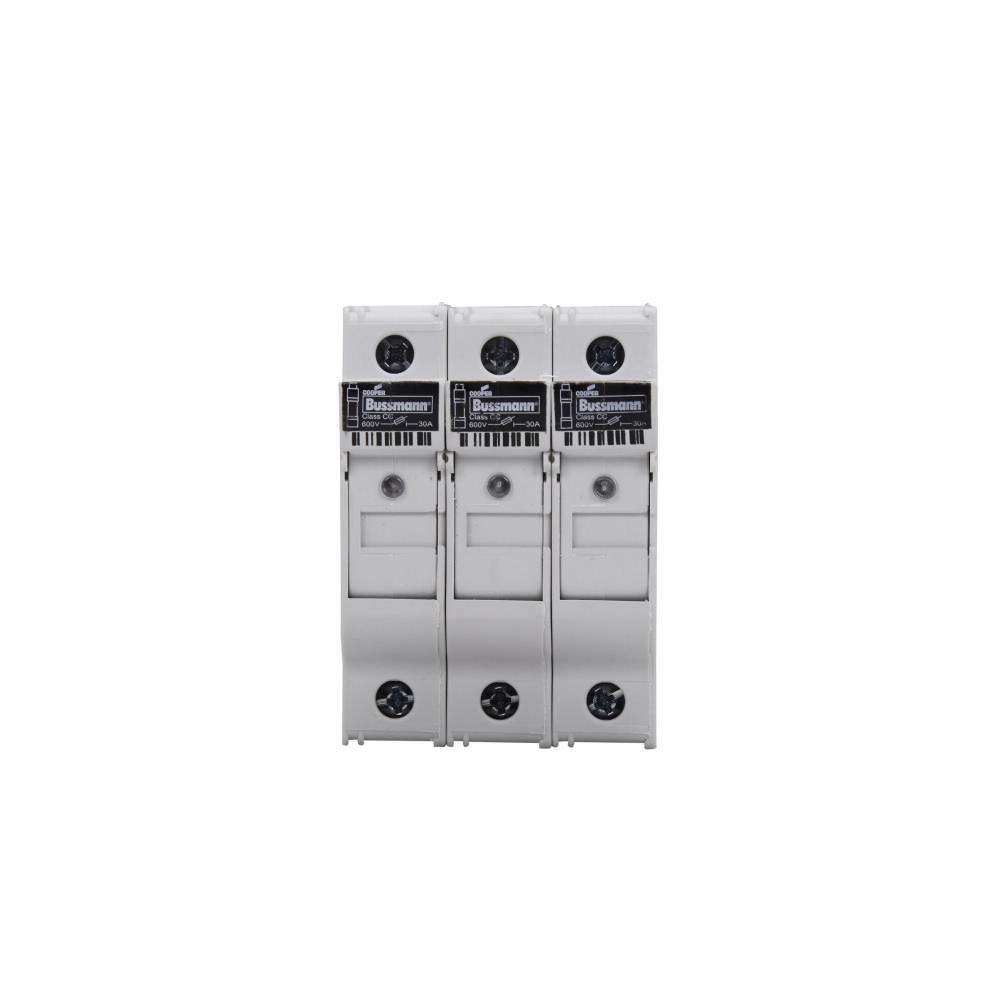

Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30A, Three-pole, With indicator
Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30A, Three-pole, With indicator
Manufacturer highlights
Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has...
Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS CHCC3DIU CCP
- Invoice description
- CCP
Specifications
- UPC
- 051712362702
- UNSPSC
- 39121624
- Country of Origin
- CN
- Amperage Rating
- 30 A
- Size
- 2.067 In Width X 3.275 In Depth X 2.909 In Height
- Type
- Modular fuse holder
- Voltage Rating
- 48 VDC
- Wattage
- -20 CEL
- Amperage Rating
- 30 A
- Class
- CC
- Dimensions
- 2.7000 IN X 3.2800 IN X 2.9100 IN
- Operating Temperature
- -20 To 90 Deg C
- Size
- 2.067 In Width X 3.275 In Depth X 2.909 In Height
- Standard
- Contact Manufacturer,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- Modular fuse holder
- Voltage Rating
- 48 VDC
- Wattage
- -20 CEL
