CRLD37BEG
SKU: CRLD37BEG
MPN: CRLD37BEG
Key specs
View all- Material
- Steel
- Type
- nVent CADDY Rod Lock Duct Brackets
Description
Product overview

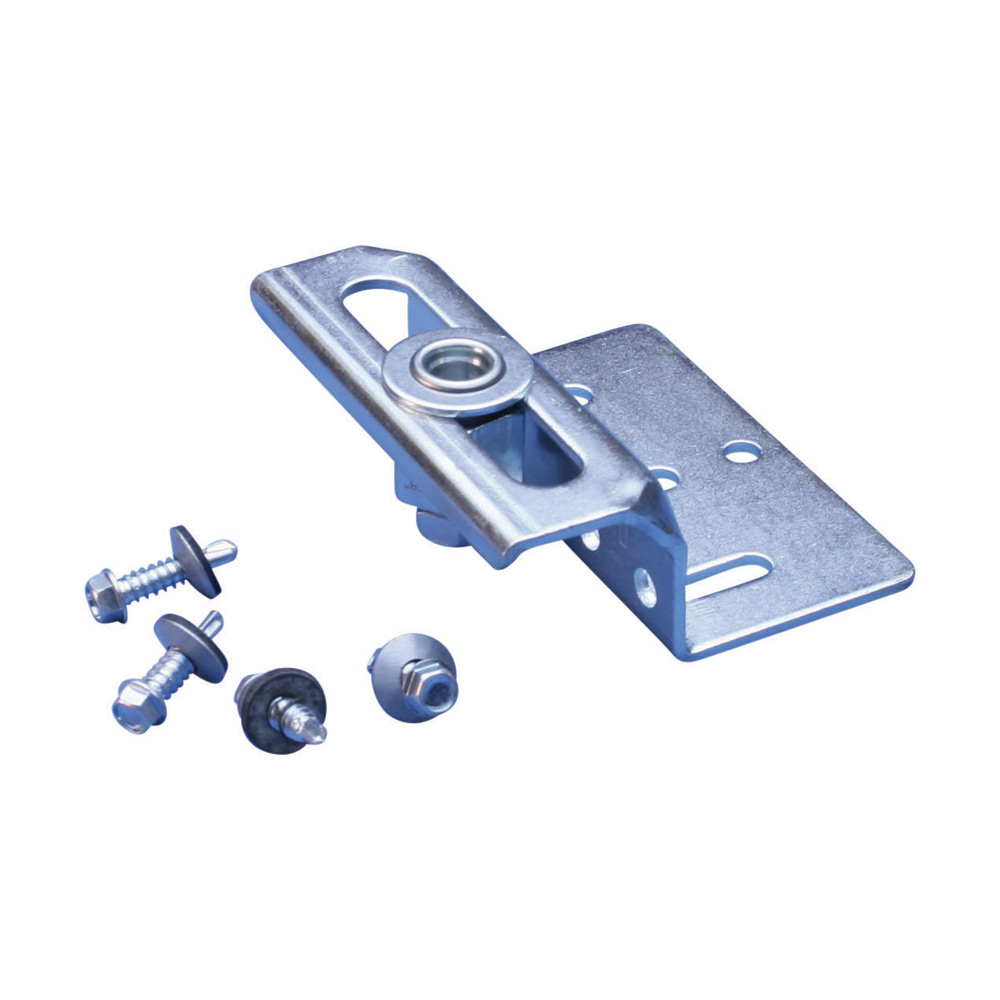

nVent CADDY Rod Lock Bottom-Mount Duct Bracket, 3/8" Rod
nVent CADDY Rod Lock Bottom-Mount Duct Bracket, 3/8" Rod
Manufacturer highlights
- Ideal for modular assembly allows attachment of brackets to sections of duct while safely on the ground
- Slotted holes in bracket allow for horizontal adjustment of the bracket relative to the duct
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Ready to use out of the box and eliminates the need for cutting and preparing sections of strut, angle iron, or strap
- Integrated adjustment nut enables fine tuning the system height up or down
- Lock nut can be finger tightened, locking the rod in place
- Extremely useful in tight spaces where wrenches are difficult to use
- Includes self-tapping sheet metal screws to attach bracket to duct
Additional manufacturer notes
- Short description
- 3/8" ROD LOCK BOTTOM DUCT BRAC
- Short name
- EFS
- Feed description
- NVENT EFS CRLD37BEG 3/8" ROD LOCK B
- Label description
- 3/8" ROD LOCK BOTTOM DUCT BRACKET
Specifications
- UPC
- 782856793946
- UNSPSC
- 40141725
- Country of Origin
- CN
- Material
- Steel
- Type
- nVent CADDY Rod Lock Duct Brackets
- Finish
- Electrogalvanized
- Height (Imperial) <Nom>
- 1.700 in
- Length (imperial) <Nom>
- 3 1/2 in
- Material
- Steel
- Rod Size (Imperial)
- 3/8 in
- Standard
- SMACNA
- Static Load (lb)
- 650 lb
- Sub Brand
- CADDY
- Type
- nVent CADDY Rod Lock Duct Brackets
- Width (Imperial) <Nom>
- 4 in
- Manufacturer keywords
- Air Duct, Duct Bracket, Duct Hanger, Duct Support: Bottom Mount, Height adjustable, Prefabrication, Push to Install, Rectangular Air Duct
