CRLL37EG
SKU: CRLL37EG
MPN: CRLL37EG
Key specs
View all- Material
- Steel
- Type
- nVent CADDY Rod Lock Structural Attachments
Description
Product overview

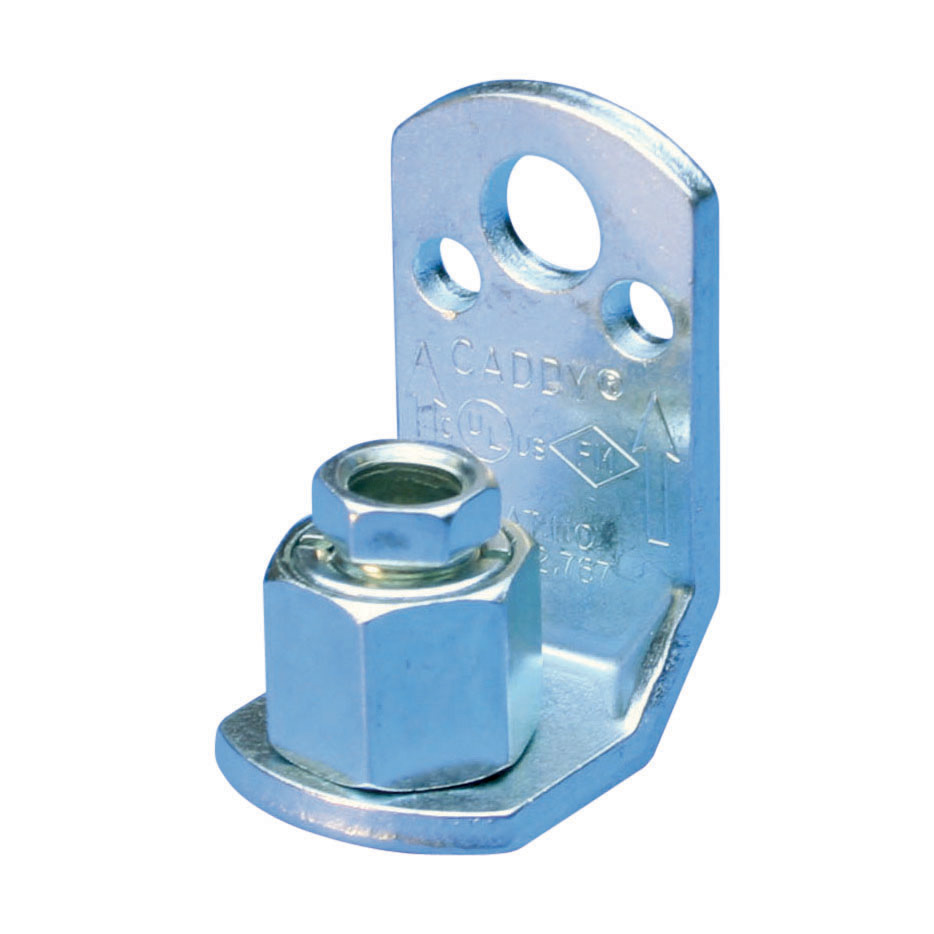

nVent CADDY Rod Lock L-Bracket, 3/8" Rod
nVent CADDY Rod Lock L-Bracket, 3/8" Rod
Manufacturer highlights
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Prefabricated assemblies easily lift and lock into place, helping to save time and money
- Multiple attachment holes support the use of either self-drilling screws or bolts, offering installation options for concrete, wood, and steel structures
- Lock nut can be finger tightened, locking the rod in place
- Integrated adjustment nut enables fine tuning the system height up or down
- Extremely useful in tight spaces where wrenches are difficult to use
- Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI'/MSS-SP-58 (Type 19 and 23)
Additional manufacturer notes
- Short description
- 3/8" ROD LOCK L-BRACKET
- Short name
- EFS
- Feed description
- NVENT EFS CRLL37EG 3/8" ROD LOCK L-
Specifications
- UPC
- 782856719113
- UNSPSC
- 40141725
- Country of Origin
- CN
- Material
- Steel
- Type
- nVent CADDY Rod Lock Structural Attachments
- Finish
- Electrogalvanized
- Height (Imperial) <Nom>
- 2.410 in
- Length (imperial) <Nom>
- 1.700 in
- Material
- Steel
- Rod Size (Imperial)
- 3/8 in
- Standard
- FM, UL, cUL, UL, cUL
- Static Load (lb)
- 700 lb
- Sub Brand
- CADDY
- Type
- nVent CADDY Rod Lock Structural Attachments
- Width (Imperial) <Nom>
- 1.400 in
- Manufacturer keywords
- Angle bracket, Angle bracket with captive hardware, Prefabrication, Push to install
