CS6369A
SKU: CS6369A
MPN: CS6369A
Key specs
View all- Amperage Rating
- 50 A
- Color
- Black
- Material
- Composite
- Number Of Poles
- 3
- Size
- 3.28 in x 2.12 in x 2.44 in
- Type
- Receptacle
Description
Product overview

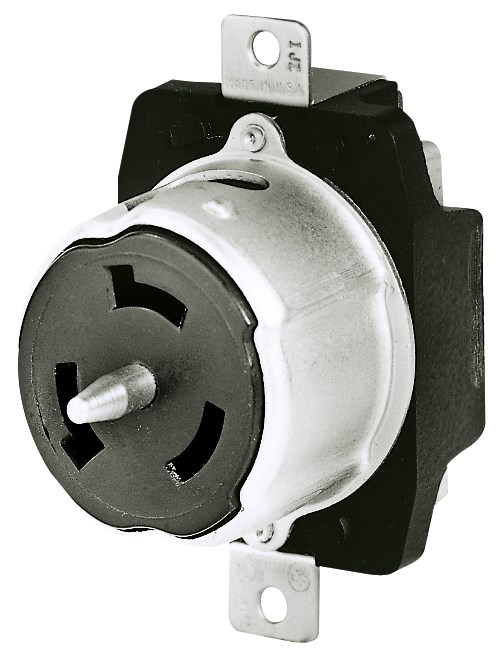

Locking Devices, Industrial, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Locking Devices, Industrial, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Manufacturer highlights
Additional manufacturer notes
- Short name
- BRYANT
- Feed description
- BRYANT CS6369A LKG RCPT, 3P4W, 50A
- Invoice description
- LKG RCPT, 3P4W, 50A 125/250V
Specifications
- UPC
- 781786253094
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating
- 50 A
- Color
- Black
- Material
- Composite
- Number Of Poles
- 3
- Size
- 3.28 in x 2.12 in x 2.44 in
- Type
- Receptacle
- Voltage Rating
- 125/250 VAC
- Wattage
- 12,500 W
- Amperage Rating
- 50 A
- Brand ID
- BRYANT
- Carton Quantity
- 10
- Catalog Number
- CS6369A
- Color
- Black
- Current Rating
- 50 A
- Description - Long
- Locking Devices, Industrial, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
- Description - Short
- Locking Devices, Industrial, Receptacle, 50A 125/250, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
- EU RoHS Indicator
- No
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets
- Thermoset construction offers high heat resistance;Armored housing provides superior impact resistance;One piece contacts provide low operating temperatures
- FV_Current/Amperage Rating Description
- 50 Amp
- FV_Voltage Rating Description
- 125/250V AC
- Item Type
- 50A Single Armored Nylon Receptacle
- Material
- Composite
- Material - Mounting Hardware
- Screw Mounting
- Number Of Poles
- 3
- Number Of Wires
- 4
- OEM Brand Name
- Hubbell Bryant
- Phase
- 1
- Product Name
- CS6369A
- Size
- 3.28 in x 2.12 in x 2.44 in
- Type
- Receptacle
- UPC
- 781786253094
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250V AC
- Wattage
- 12,500 W
- Wire Size
- #10 AWG to #4 AWG
