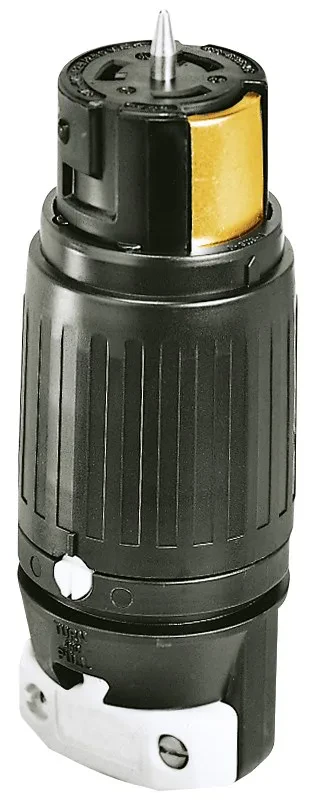

Bryant Electric CS8164 Electrical Connector Assembly product image

Bryant Electric CS8164 Electrical Connector Assembly product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

CS8164

SKU: CS8164

MPN: CS8164

Purchase options

$180.60 / EA

manufacturer discounts
learn about discounts

$162.54 for $300.00+
$154.80 for $500.00+
$148.35 for $1,000.00+

In stock (1)

Over 7 working days if you need more than what we have in stock.

Over 7 working days if you need more than what we have in stock.
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 50 A
Color: Black
Material: Composite
Number Of Poles: 3
Size: 6.50 in x 2.56 in x 2.56 in
Type: Connector Body

Description

Product overview

Locking Devices, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Manufacturer highlights

Additional manufacturer notes

Feed description: BRYANT CS8164 LKG CONN, 3P4W, 50A 3
Invoice description: LKG CONN, 3P4W, 50A 3PH 480V

Specifications

UPC: 781786831100

UNSPSC: 39121421

Country of Origin: US

Amperage Rating: 50 A

Color: Black

Material: Composite

Number Of Poles: 3

Size: 6.50 in x 2.56 in x 2.56 in

Type: Connector Body

Voltage Rating: 3 Phase 480 VAC

Amperage Rating: 50 A

Brand ID: BRYANT

Carton Quantity: 5

Catalog Number: CS8164

Color: Black

Conductor Range: #6 AWG

Cord Diameter: 0.830-1.250 in

Current Rating: 50 A

Description - Long: Locking Devices, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Description - Short: Locking Devices, Industrial, Female Connector Body, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

EU RoHS Indicator: No

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FEATURES - Bullets: Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands;Thermoplastic polyester interior provides heat resistance and impact strength;Oversized contacts minimize operating temperature

FV_Current/Amperage Rating Description: 50 Amp

FV_Voltage Rating Description: 3 Phase 480 VAC

Insulation: Insulated Body

Item Type: 50A Heavy Duty Connector

Material: Composite

Material - Mounting Hardware: Cord Mounted

Number Of Conductors: 4-Wire Grounding

Number Of Poles: 3

OEM Brand Name: Hubbell Bryant

Product Name: CS8164

Size: 6.50 in x 2.56 in x 2.56 in

Temperature Rating: Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.

Type: Connector Body

UPC: 781786831100

Voltage Rating: 3 Phase 480 VAC

Voltage Rating Description: 3 Phase 480 VAC
