$139.51 / EA
manufacturer discounts
learn about discounts
- $125.56 for $300.00+
- $119.58 for $500.00+
- $114.60 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

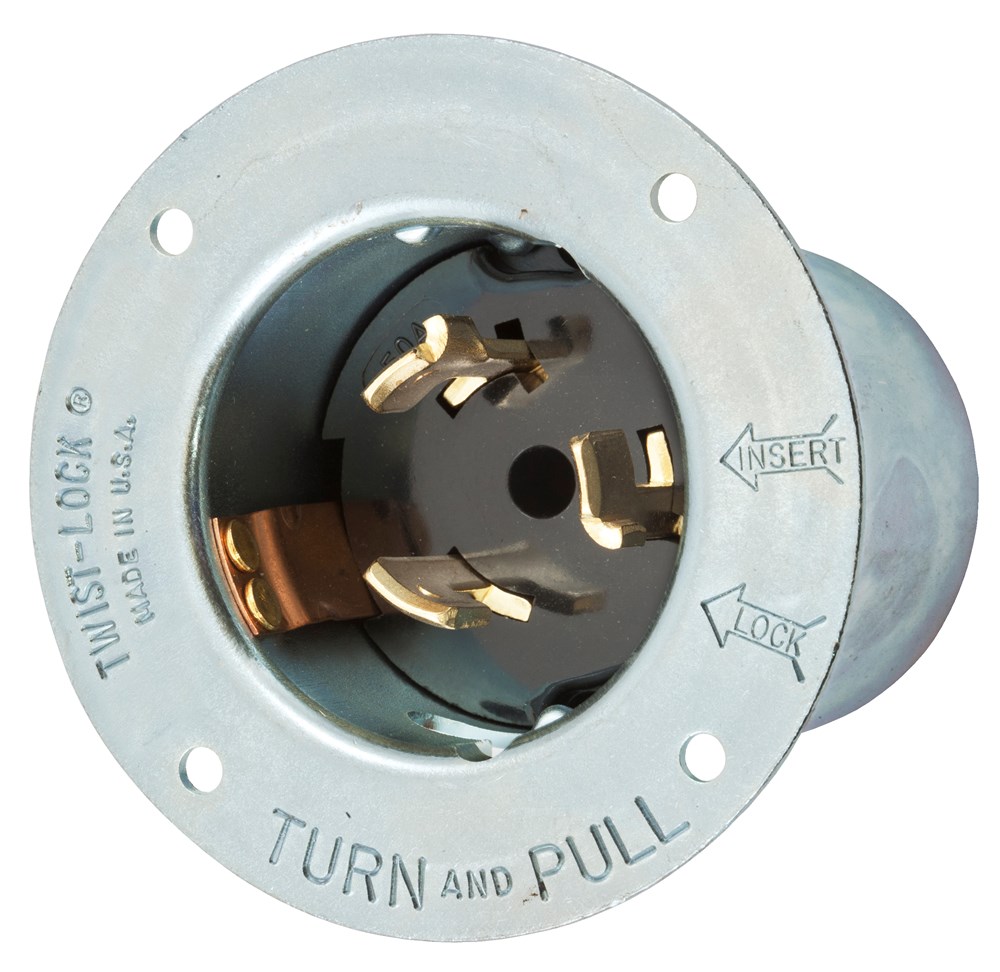

Locking Devices, Industrial, Flanged Inlet, 50A Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Locking Devices, Industrial, Flanged Inlet, 50A Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
150
- UPC
- 781786253148
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 50 A
- Color:
- Metallic
- Material:
- Composite
- Number Of Poles:
- 3
- Size:
- 2.77 in x 3.50 in x 3.50 in
- Type:
- Flanged Inlet
- Voltage Rating:
- 3 Phase 480 VAC
- Wattage:
- 24k W
- Amperage Rating:
- 50 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- CS8175A
- Color:
- Metallic
- Current Rating:
- 50 A
- Description - Long:
- Locking Devices, Industrial, Flanged Inlet, 50A Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
- Description - Short:
- Locking Devices, Industrial, Flanged Inlet, 50A Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
- Dielectric Strength:
- Withstands 3000V Minimum in
- EU RoHS Indicator:
- No
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Metallic flanged casing provides maximum strength and protection;Thermoset interior provides superior heat resistance
- FV_Current/Amperage Rating Description:
- 50 Amp
- FV_Voltage Rating Description:
- 3 Phase 480V AC
- Insulation:
- Insulated Body
- Item Type:
- 50A Male Flanged Inlet
- Material:
- Composite
- Material - Mounting Hardware:
- Screw Mounting
- Number Of Poles:
- 3
- Number Of Wires:
- 4
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- CS8175A
- Size:
- 2.77 in x 3.50 in x 3.50 in
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact
- Type:
- Flanged Inlet
- UPC:
- 781786253148
- Voltage Rating:
- 3 Phase 480 VAC
- Voltage Rating Description:
- 3 Phase 480V AC
- Wattage:
- 24k W
- Wire Size:
- #18 AWG to #8 AWG
