$12.11 / EA
manufacturer discounts
learn about discounts
- $10.90 for $300.00+
- $10.38 for $500.00+
- $9.95 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

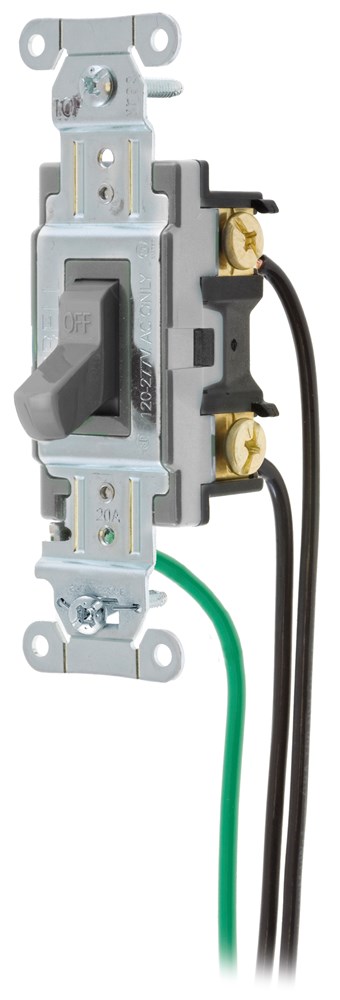

Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
150
- UPC
- 783585187457
- UNSPSC
- 39122211
- Country of Origin
- CN
- Action:
- Positive Snap
- Amperage Rating:
- 20 A
- Color:
- Gray
- Material:
- Nylon
- Number Of Poles:
- 1
- Size:
- 4.18 in x 1.34 in x 1.83 in
- Type:
- Toggle
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 5,540 W
- Action:
- Positive Snap
- Actuator:
- Toggle
- Amperage Rating:
- 20 A
- Catalog Number:
- CSL220GY
- Color:
- Gray
- Connection:
- Wire Leads
- Contact Configuration:
- Two Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 20 A
- Current Rating:
- 20 A
- Description - Long:
- Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- Description - Short:
- Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Labor Saving;Thread cleaning captive mounting screw;Abuse resistant nylon toggle
- Insulation:
- None
- Item Type:
- Double Pole Pre-Wired Toggle Switch
- Material:
- Nylon
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Product Name:
- CSL220GY
- Series:
- General Purpose
- Size:
- 4.18 in x 1.34 in x 1.83 in
- Standard:
- UL Listed
- Sub Brand:
- AC Toggle Switches
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Toggle
- UPC:
- 783585187457
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 5,540 W
