CT-300

SKU: CT-300

MPN: CT-300

Key specs

View all
Size
7.8"L x 4"W x 2.3"H (19.5 cm x 10.1 cm x 5.9 xm)
Type
Transformer Tester

Description

Product overview

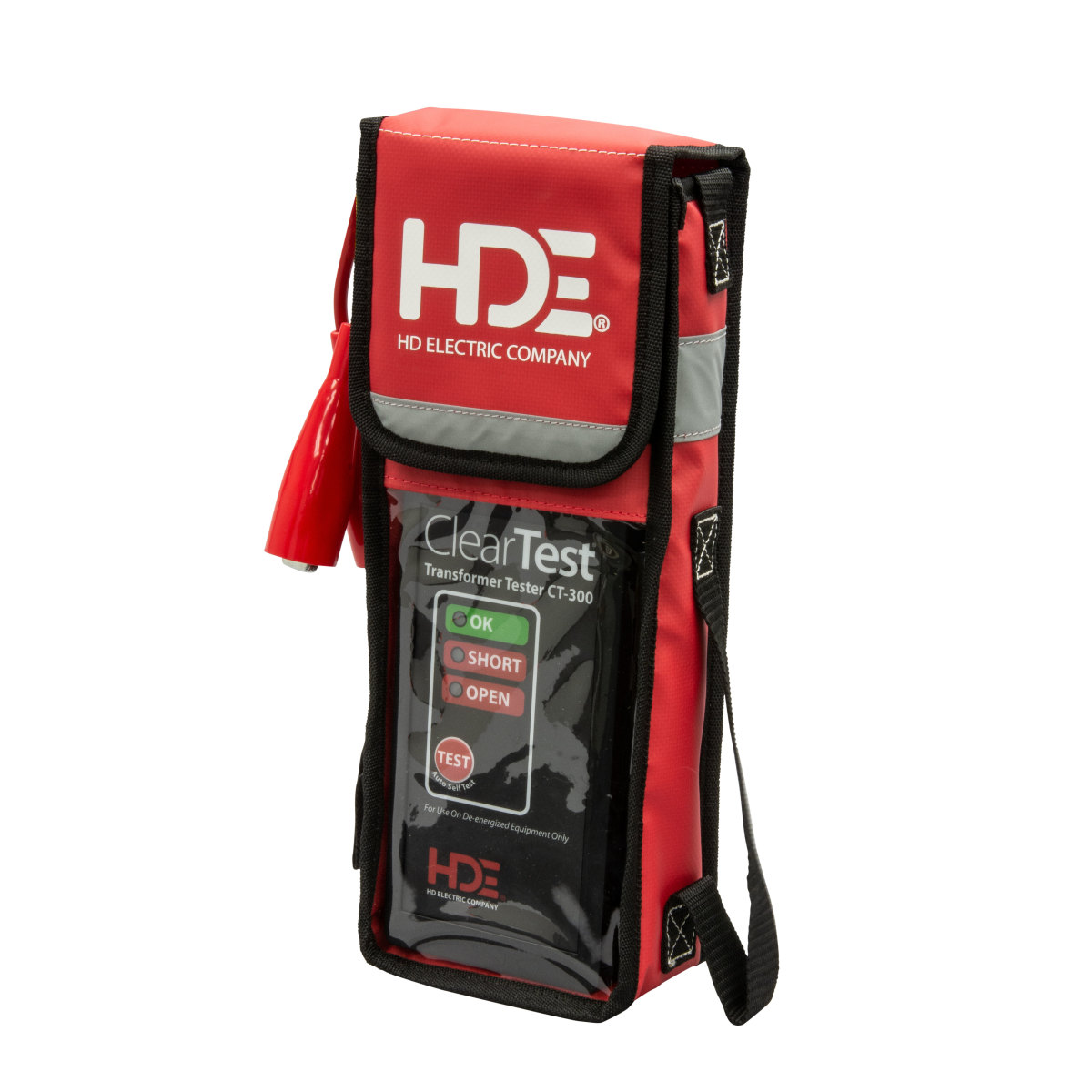

Quickly tests deenergized power distribution transformers. Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal. Tests overhead, pad-mount and distribution transformers. Audible alarm confirms successful test. Improve SAIDI statistics by quickly testing and getting the transformer back in service. Auto self-test performed with every test. Compact, lightweight and easy-to-use

Quickly tests deenergized power distribution transformers. Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal. Tests overhead, pad-mount and distribution transformers. Audible alarm confirms successful test. Improve SAIDI statistics by quickly testing and getting the transformer back in service. Auto self-test performed with every test. Compact, lightweight and easy-to-use

Manufacturer highlights

Additional manufacturer notes

Short name
GRN
Feed description
GRN CT-300 CLEARTEST TRANSFORMER TE
Invoice description
CLEARTEST TRANSFORMER TESTER

Specifications

UPC
783310556961
Size
7.8"L x 4"W x 2.3"H (19.5 cm x 10.1 cm x 5.9 xm)
Type
Transformer Tester
Enclosure
ABS UL 94-HB
Included
CT-300 Tester, B-9 Carrying Bag
Model
ClearTest
Mounting
Magnet
Output
500VDC or 5,000VDC nominal
Size
7.8"L x 4"W x 2.3"H (19.5 cm x 10.1 cm x 5.9 xm)
Sub Brand
HDE
Supply Current
1,000µA on 500VDC range; 100µA on 5,000VDC range; 2,000µA max
Temperature Range
-20°F to +140°F (-29°C to +60°C)
Type
Transformer Tester
