Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$625.50 / EA
manufacturer discounts
learn about discounts
- $543.54 for $500.00+
- $517.66 for $1,000.00+
- $500.40 for $2,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

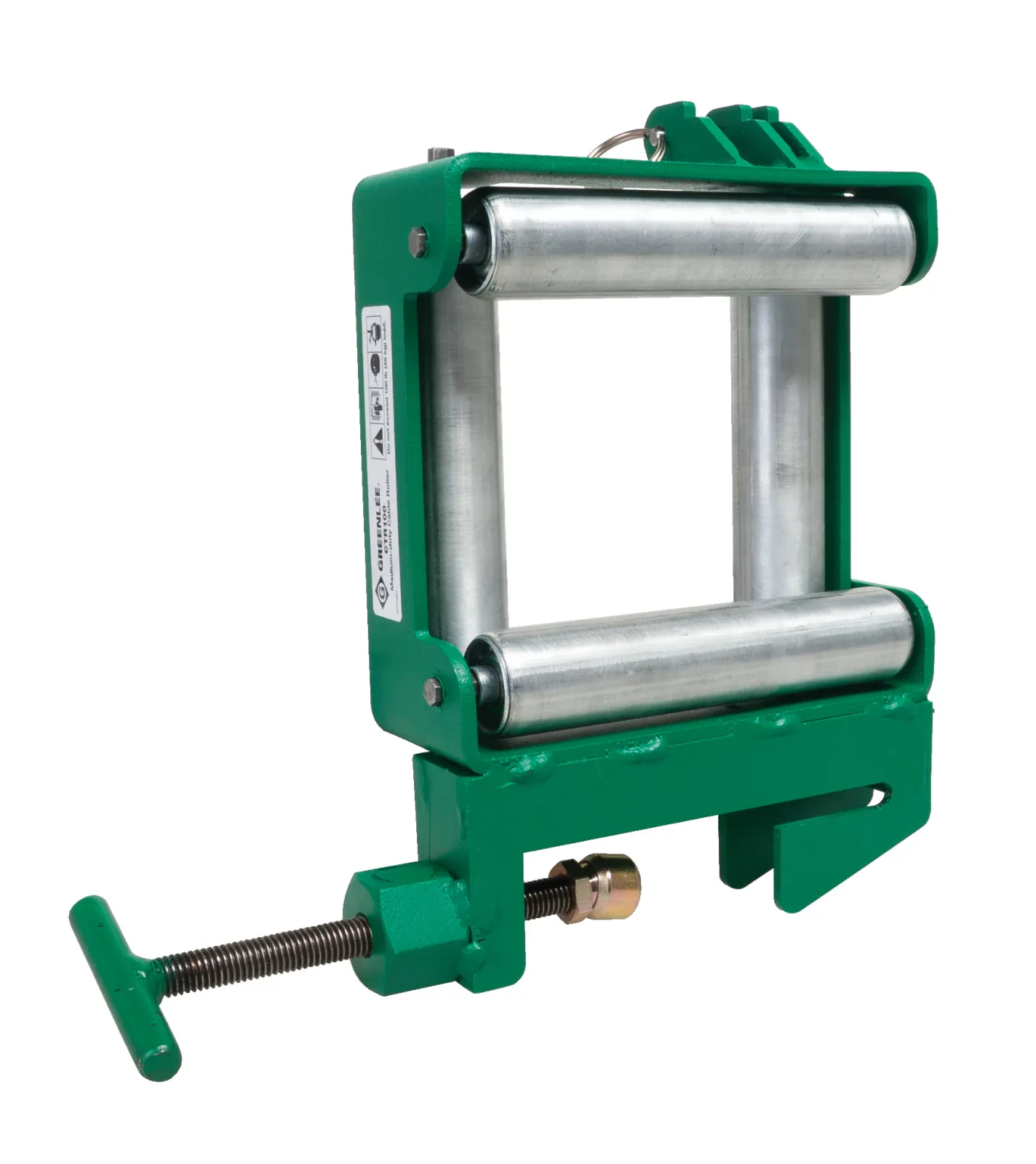

2x faster setup and disconnect. No loose pieces. Quick adjust push button to tightly fasten onto tray. 4 conveyer roller guide with retained spring pull-pin release to easily remove cable. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. Easily handle forces of up to 100 lbs (45.4 kg). Designed and Assembled in USA.
2x faster setup and disconnect. No loose pieces. Quick adjust push button to tightly fasten onto tray. 4 conveyer roller guide with retained spring pull-pin release to easily remove cable. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. Easily handle forces of up to 100 lbs (45.4 kg). Designed and Assembled in USA.
150
- UPC
- 783310028109
- UNSPSC
- 31171804
- Country of Origin
- US
- Material:
- Steel
- Cable Size:
- 4'' (101 MM)
- Capacity:
- 100 lb (45 kg)
- Material:
- Steel
- Overall Height:
- 11-1/8'' (282.6 mm)
- Overall Length:
- Retracted: 9-1/4'' (235 mm) Extended: 13-3/4'' (349.3 mm)
- Pitch Diameter:
- Roller Opening Size : 4" (101.6 mm) square
- Pulling Capability:
- 100 lb (45 kg)
- Roller Opening Size:
- 4'' (101.6 mm) square
652
$633.30 /ea
Hook-Type Sheave 4,000 Pound Capacity. 18" (457.2 mm) hook sheave with 7" (177.8 mm) minimum radius. Strong, welded steel frames. Forged steel closure-type hooks with 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves with self-lubricating bearings. Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force.
| Attributed Data | Included |
|---|---|
| Capacity | 4000.000 LB (17.800 KN) Yes |
| Groove | R3.00" Yes |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15363 UPC 15363 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16801 UPC 16801 Yoke Frame Yes |
| Keyway | None Yes |
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings Yes |
| Pitch Diameter | Between 14" and 18" Yes |
| Standard | SHEAVE-CABLE 18" HOOK TYPE Yes |
| Type | Sheave Assembly Yes |
01442
$436.58 /ea
SHEAVE ASSEMBLY ( G6 ) (52059427)
650-GRNL
$312.66 /ea
Hook-Type Sheave 4,000 Pound Capacity. 6" (152.4 mm) hook sheave with 1-1/2" (38.1 mm) minimum radius. Strong, welded steel frames. Forged steel closure-type hooks with 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves with self-lubricating bearings. Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force.
| Attributed Data | Included |
|---|---|
| Bore Diameter | 0.76" Yes |
| Capacity | 4000.000 LB (17.800 KN) Yes |
| Groove | R2.50" Yes |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16799 UPC 16799 Yoke Frame Yes |
| Keyway | None Yes |
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings Yes |
| Pitch Diameter | Between 6" and 3" Yes |
| Standard | 6" (152.4 mm) dia. Hook Sheave with 1-1/2" (38.1 mm) minimum radius Yes |
| Type | Sheave Assembly Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
652
Hook-Type Sheave 4,000 Pound Capacity. 18" (457.2 mm) hook sheave with 7" (177.8 mm) minimum radius. Strong, welded steel frames. Forged steel closure-type hooks with 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves with self-lubrica...
$633.30 / EA
|
01442
SHEAVE ASSEMBLY ( G6 ) (52059427)
$436.58 / EA
|
650-GRNL
Hook-Type Sheave 4,000 Pound Capacity. 6" (152.4 mm) hook sheave with 1-1/2" (38.1 mm) minimum radius. Strong, welded steel frames. Forged steel closure-type hooks with 1" (25.4 mm) opening. 5" (127 mm) wide aluminum alloy sheaves with self-lubri...
$312.66 / EA
|
|
| Attributed Data | |||
| Bore Diameter | 0.76" 0.76" | ||
| Capacity | 4000.000 LB (17.800 KN) 4000.000 LB (17.800 KN) | ||
| Groove | R2.50" R2.50" | R3.00" R3.00" | |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16799 UPC 16799 Yoke Frame 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16799 UPC 16799 Yoke Frame | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15363 UPC 15363 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16801 UPC 16801 Yoke Frame 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15363 UPC 15363 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16801 UPC 16801 Yoke Frame | |
| Keyway | None None | ||
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings | ||
| Outside Diameter | 6 in 6 in | 18 in 18 in | |
| Pitch Diameter | Between 6" and 3" Between 6" and 3" | Between 14" and 18" Between 14" and 18" | |
| Standard | 6" (152.4 mm) dia. Hook Sheave with 1-1/2" (38.1 mm) minimum radius 6" (152.4 mm) dia. Hook Sheave with 1-1/2" (38.1 mm) minimum radius | SHEAVE-CABLE 18" HOOK TYPE SHEAVE-CABLE 18" HOOK TYPE | |
| Type | Sheave Assembly Sheave Assembly | ||
