DG200A
SKU: DG200A
MPN: DG200A
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 365-7 Day Time Switch
Description
Product overview

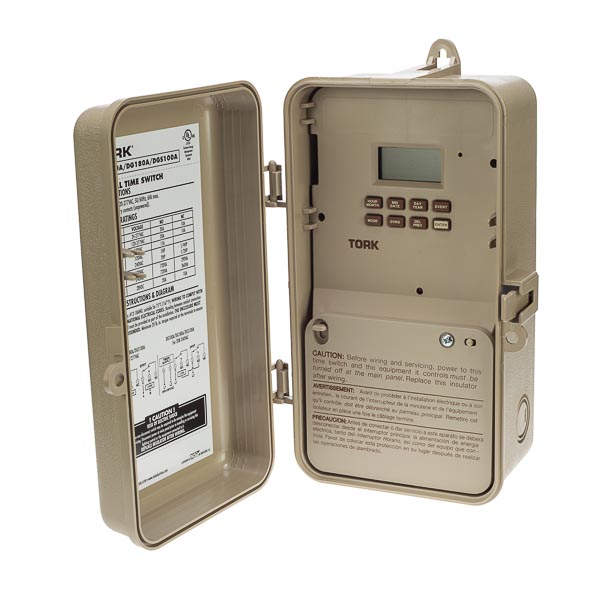

Tork 365/7 Day 2 Channel SPDT Digital Time Switch APPLICATIONS: Indoor/Outdoor Lighting HVAC Equipment School Warning and Other Traffic Lights Water Heaters in Offices, Churches and Factories FEATURES: TIMING ACCURACY: Line Frequency INPUT VOLTAGE: 120-277 50/60Hz DRY CONTACTS: SPDT TERMINAL RANGE: #14-#18AWG OPERATING TEMPERATURE: -31 degrees to +131 degrees F (-35 degrees to 55 degrees C) POWER CONSUMPTION: 6VA Max SCHEDULING: 56 ON & OFF set points provide individual programs for each day of...
Tork 365/7 Day 2 Channel SPDT Digital Time Switch APPLICATIONS: Indoor/Outdoor Lighting HVAC Equipment School Warning and Other Traffic Lights Water Heaters in Offices, Churches and Factories FEATURES: TIMING ACCURACY: Line Frequency INPUT VOLTAGE: 120-277 50/60Hz DRY CONTACTS: SPDT TERMINAL RANGE: #14-#18AWG OPERATING TEMPERATURE: -31 degrees to +131 degrees F (-35 degrees to 55 degrees C) POWER CONSUMPTION: 6VA Max SCHEDULING: 56 ON & OFF set points provide individual programs for each day of the week. Minimum setting is 1 minute. BLOCK HOLIDAY: 9 holiday blocks can be set for individual days or for duration of any number of days. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM or Military time. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 7 days of real time backup. ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. BRAND EQUIVALENT: Paragon EL7200PC/208-240 UPC: 786261822093 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Contact Rating NO: 20A NC: 10A BALLAST: 120VAC. Contact Rating NO: 20A NC: 10A 277VAC. Contact Rating NO: 20A NC: 10A TUNGSTEN: 120VAC. Contact Rating NO: 15A PILOT DUTY: 120VAC. Contact Rating NO: 720VA NC: 290VA 240VAC. Contact Rating NO: 720VA NC: 360VA MOTOR LOAD: 120VAC. Contact Rating NO: 1HP NC: 1/4HP 240VAC. Contact Rating NO: 2HP NC: 1/2HP RESISTIVE: 28VDC. Contact Rating NO: 20A NC: 10A
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- TORK DG200A MULTIVOLT 20A 7 DAY 2 C
- Invoice description
- 365 Day Digital Timer 2CH Title 24
Specifications
- UPC
- 786261822093
- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 365-7 Day Time Switch
- Action
- SPDT
- Base
- Screw
- Contact Rating
- 120-277 VAC
- Enclosure
- NEMA 3R Noryl Indoor-Outdoor
- Environmental Conditions
- -31 to + 131 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Temperature
- -31 to + 131 F
- Phase
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Standard
- cULus
- Sub Brand
- Digital Time Controls
- Timing Range
- 365-7 Day
- Type
- 365-7 Day Time Switch
