DG280A
SKU: DG280A
MPN: DG280A
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
Description
Product overview

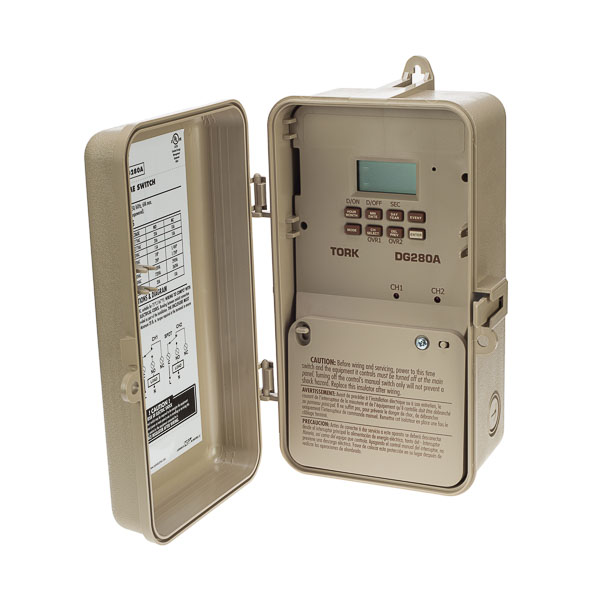

Tork 24 Hour 2 Channel SPDT Digital Time Switch with Skip-A-Day APPLICATIONS: Signaling Duty Cycle FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 120-277 VAC 50/60Hz OUTPUT DRY CONTACTS: SPDT NO. OF CHANNELS: 2 Channel SCHEDULING: 56 ON/OFF set points provide individual daily programs. Minimum Setting 1 minute. DUTY CYCLE: Two different ON/OFF patterns or signal durations may be programmed. The durations can be up to 23 hours, 59 minutes and 59 seconds in length. SKIP FUNCTION: Each...
Tork 24 Hour 2 Channel SPDT Digital Time Switch with Skip-A-Day APPLICATIONS: Signaling Duty Cycle FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 120-277 VAC 50/60Hz OUTPUT DRY CONTACTS: SPDT NO. OF CHANNELS: 2 Channel SCHEDULING: 56 ON/OFF set points provide individual daily programs. Minimum Setting 1 minute. DUTY CYCLE: Two different ON/OFF patterns or signal durations may be programmed. The durations can be up to 23 hours, 59 minutes and 59 seconds in length. SKIP FUNCTION: Each channel can be set for ACTIVE/SKIP operations that alternate from 1-31 days. This becomes an effective way to cycle loads on varying days within the month. Using this time clock, two loads can be set to operate on alternate days in a simple manner. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM or 24 hour. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 4 days of real time backup. ENCLOSURE: Plastic Indoor/Outdoor NEMA 3R with lockable hasp. UPC: 786261822079 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Rating NO: 40A NC: 10A BALLAST: 120VAC. Rating NO: 20A NC: 10A 277VAC. Rating NO: 20A NC: 10A TUNGSTEN: 120VAC. Rating NO: 15A PILOT DUTY: 120VAC. Rating NO: 720VA NC: 290VA 240VAC. Rating NO: 720VA NC: 290VA MOTOR LOAD: 120VAC. Rating NO: 1HP NC: 1/4HP 240VAC. Rating NO: 2 HP NC: 1/2HP RESISTIVE: 28VDC. Rating NO: 20A NC: 10A
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- TORK DG280A MULTIVOLT 20A 2 CH DUTY
- Invoice description
- 24 Hr Digital Cycle Timer 2CH
Specifications
- UPC
- 786261822079
- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
- Action
- SPDT
- Base
- Screw
- Contact Rating
- 120-277 VAC
- Enclosure
- NEMA 3R Noryl Indoor-Outdoor With Lockable Hasp
- Environmental Conditions
- -31 to + 131 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Temperature
- -31 to + 131 F
- Phase
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Standard
- cULus
- Sub Brand
- Digital Time Controls
- Timing Range
- 0-24 h
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
