DGS100A

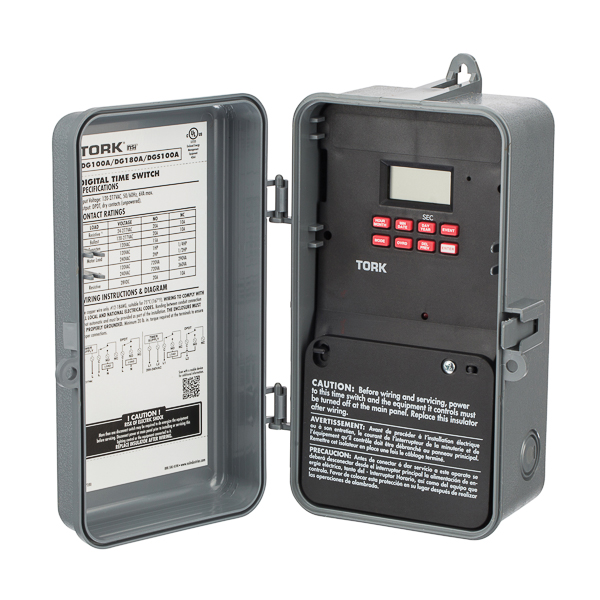

Tork 7 Day 1 Channel DPDT Digital Time Switch APPLICATIONS: Signaling Duty Cycle FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 12-277 VAC 50/60Hz OUTPUT DRY CONTACTS: DPDT NO. OF CHANNELS: 1 Channel SCHEDULING: 56 ON/OFF set points provide individual programs for each day of the week. Minimum Setting 1 minute. DUTY CYCLE: Two different ON/OFF patterns or signal durations may be programmed. The durations can be up to 23 hours, 59 minutes and 59 seconds in length. DAYLIGHT SAVINGS: Au... read more

Tork 7 Day 1 Channel DPDT Digital Time Switch APPLICATIONS: Signaling Duty Cycle FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 12-277 VAC 50/60Hz OUTPUT DRY CONTACTS: DPDT NO. OF CHANNELS: 1 Channel SCHEDULING: 56 ON/OFF set points provide individual programs for each day of the week. Minimum Setting 1 minute. DUTY CYCLE: Two different ON/OFF patterns or signal durations may be programmed. The durations can be up to 23 hours, 59 minutes and 59 seconds in length. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM or 24 hour. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 4 days of real time backup. ENCLOSURE: Plastic Indoor/Outdoor NEMA 3R with lockable hasp. BRAND EQUIVALENT: Paragon EL7001 UPC: 786261822055 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Rating NO: 40A NC: 10A BALLAST: 120VAC. Rating NO: 20A NC: 10A 277VAC. Rating NO: 20A NC: 10A TUNGSTEN: 120VAC. Rating NO: 15A PILOT DUTY: 120VAC. Rating NO: 720VA NC: 290VA 240VAC. Rating NO: 720VA NC: 290VA MOTOR LOAD: 120VAC. Rating NO: 1HP NC: 1/4HP 240VAC. Rating NO: 2 HP NC: 1/2HP RESISTIVE: 28VDC. Rating NO: 20A NC: 10A read less

150

read less
