Videos & documents
Documents
DM-200A
SKU: DM-200A
MPN: DM-200A
Key specs
View all- Type
- Digital
Description
Product overview

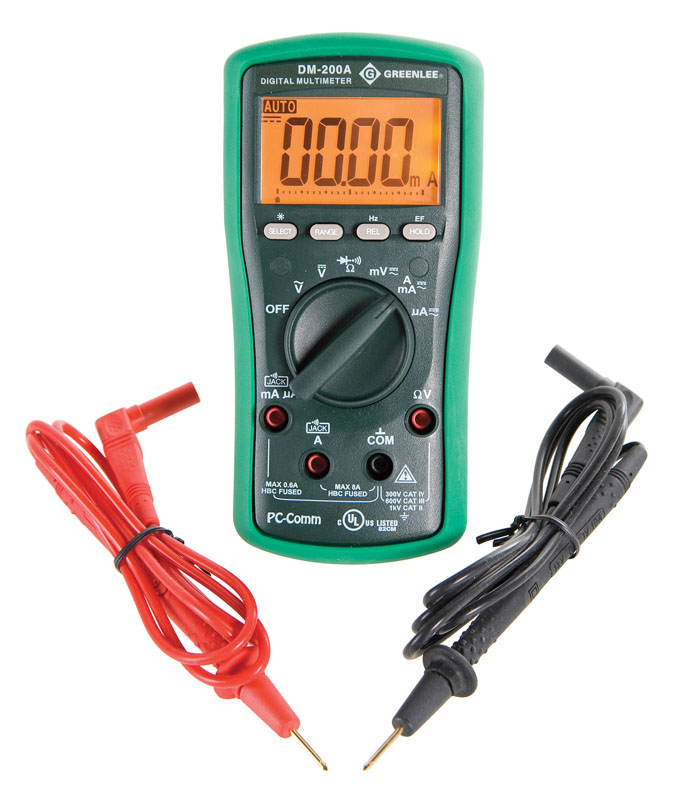

ESM™ Series Digital Multimeters. Measures voltage, current, resistance and frequency. Tests continuity and diodes. Backlit LCD with 6,000 count display. Two voltage detection modes - non-contact or using a single test lead. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging. Lif...
ESM™ Series Digital Multimeters. Measures voltage, current, resistance and frequency. Tests continuity and diodes. Backlit LCD with 6,000 count display. Two voltage detection modes - non-contact or using a single test lead. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging. Lifetime Limited Warranty. Accessories included: (2)1.5V AAA batteries, test leads and protective boot.
Manufacturer highlights
Additional manufacturer notes
- Feed description
- GRN DM-200A DMM, 1000V AC/DC (DM-20
- Label description
- Digital Multimeter
- Invoice description
- DMM, 1000V AC/DC (DM-200A)
Specifications
- UPC
- 783310087403
- UNSPSC
- 41113630
- Country of Origin
- TW
- Type
- Digital
- Amperage Measurement
- 600, 6000μA; 60, 600mA; 6, 8A
- Battery
- (2) 1.5 V AAA
- Capacitance
- 60, 600 nF; 6, 60, 600, 3000μF
- Display
- Backlit LCD With 6,000 Count
- Frequency Measurement
- 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
- Includes
- (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
- Measurement Category
- CAT IV 300 V, CAT III 600 V, CAT II 1000 V
- Replacement Part
- TSG-3 Sure-Grip Test Leads
- Resistance Measurement
- 600 Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Standard
- CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
- Sub Brand
- ESM
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Type
- Digital
- Voltage Measurement
- 60, 600 mV; 6, 60, 600, 1000V
- Manufacturer keywords
- DM200A,'08740,DM-200A
Rate this product
Do you have a question about DM-200A?
Videos & documents
Documents
DM-200A
$126.27 / EA
Similar items
Compare alternates in this category before ordering.
Similar item
CM-1360
1000A AC True RMS Clamp Meter. Measures AC current. AC voltage measurement with digital low pass filter for accurate readings on variable...
$328.19 / EA
Available to order
Similar item
CMI-1000-C
CLAMPMETER,AC/DC-CALIBRATED(CMI-1000-C) (52066397)
$591.54 / EA
Available to order
Similar item
CMI-1000
1000A Industrial Clamp Meter. Measures AC+DC current and DC microamps. AC and AC+DC voltage measurements with digital low pass filter for...
$468.76 / EA
Available to order
Similar item
DM-820A-C
ESM™ Series Digital Multimeters. True RMS for no-compromise accuracy. Measures voltage, current,resistance, capacitance and frequency. Te...
$436.94 / EA
Available to order
Similar item

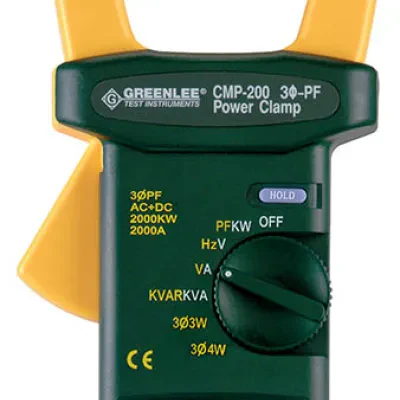

CMP-200-C
