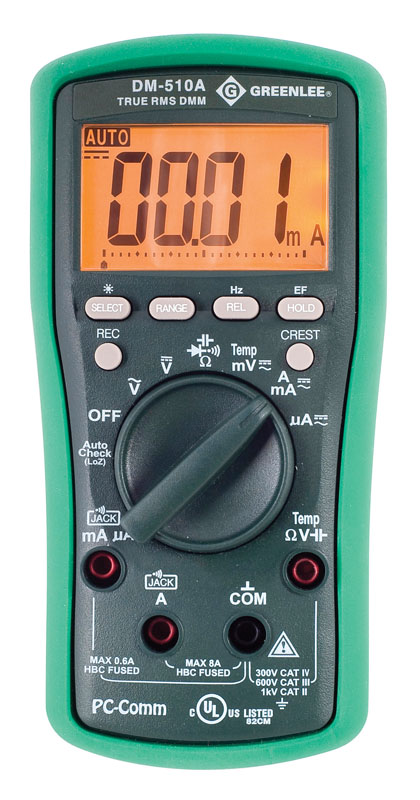

DM-510A
SKU: DM-510A
MPN: DM-510A
Key specs
View all- Type
- Professional Plant Digital
Description
Product overview
Measures voltage, current, resistance and frequency. Tests continuity and diodes. Backlit LCD with 6,000 count display. Two voltage detection modes - non-contact or using a single test lead. BeepJack warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging. Lifetime Limited Warranty. Accessorie...
Measures voltage, current, resistance and frequency. Tests continuity and diodes. Backlit LCD with 6,000 count display. Two voltage detection modes - non-contact or using a single test lead. BeepJack warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging. Lifetime Limited Warranty. Accessories included: (2)1.5V AAA batteries, bead temperature probe 400°F/204°C max, test leads, protective boot. True RMS for no-compromise accuracy. Crest capture (peak hold) plus recording of max, min, max-min and average. Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup. Measures capacitance. Measures temperature using a type K thermocouple.
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN DM-510A DMM,TRMS,AC/DC,CAP,TEMP
- Label description
- Professional Plant Digital Multimeter
- Invoice description
- DMM,TRMS,AC/DC,CAP,TEMP(DM-510A)
Specifications
- UPC
- 783310087427
- UNSPSC
- 41113630
- Country of Origin
- TW
- Type
- Professional Plant Digital
- Amperage Measurement
- 600, 6000μA; 60, 600mA; 6, 8A
- Battery
- (2) 1.5 V AAA
- Capacitance
- 60, 600 nF; 6, 60, 600, 3000μF
- Display
- Backlit LCD With 6,000 Count
- Frequency Measurement
- 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
- Includes
- (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot
- Measurement Category
- CAT IV 300 V, CAT III 600 V, CAT II 1000 V
- Replacement Part
- TSG-3 Sure-Grip Test Leads
- Resistance Measurement
- 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Standard
- CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
- Sub Brand
- ESM
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Type
- Professional Plant Digital
- Voltage Measurement
- 60, 600 mV, 6, 60, 600, 1000V
- Manufacturer keywords
- DM510A,'08742,DM-510A
