Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

DM-65

SKU: DM-65

MPN: DM-65

Purchase options

$183.64 / EA

manufacturer discounts
learn about discounts

$159.58 for $500.00+
$151.98 for $1,000.00+
$146.91 for $2,000.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Amperage Rating: 600, 6000 μA; 60, 600 mA; 6, 10 A
Type: Auto/Manual Ranging
Voltage Rating: 1k V

Description

Product overview

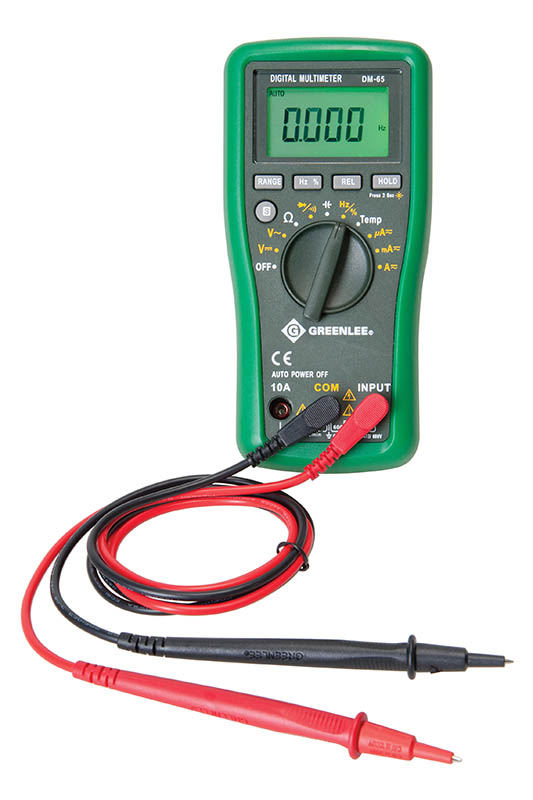

Digital AC/DC Multimeter CatIII 1000V Auto Ranging. Measures AC/DC voltage, AD/DC current, resistance, temperature, frequency, duty cycle and capacitance. Diode and audible continuity tests. Relative offset mode to see changes in measurements. Data hold. Backlit, 6000 count LCD with bar graph. Lifetime Limited Warrranty.

Manufacturer highlights

Additional manufacturer notes

Short name: GRN
Feed description: GRN DM-65 DMM, 1000V AC/DC, 10A, CA
Label description: CATIII 1000V CATIV 600V Auto-Ranging Digital Multimeter
Invoice description: DMM, 1000V AC/DC, 10A, CAP, TEMP (DM-65)

Specifications

UPC: 783310003397

UNSPSC: 41113630

Country of Origin: CN

Amperage Rating: 600, 6000 μA; 60, 600 mA; 6, 10 A

Type: Auto/Manual Ranging

Voltage Rating: 1k V

Amperage Rating: 600, 6000 μA; 60, 600 mA; 6, 10 A

Capacitance: 40, 400 nF; 4, 40, 400, 4000 μF

Counts: 6000

Diode Test: Yes

Display: Digital With Bar Graph

Duty Cycle: 5 - 95 PCT

Field Replaceable Fuses: Yes

Resistance: 600 Ω. 6, 60, 600 kΩ 6, 60 MΩ

Standard: C/US ETL Listed, CATIII, CATIV Approved

Type: Auto/Manual Ranging

Voltage Rating: 1k V

Manufacturer keywords: DM-65;DM65;00339;783310003397
