DM-810A
SKU: DM-810A
MPN: DM-810A
Key specs
View all- Type
- Digital
Description
Product overview

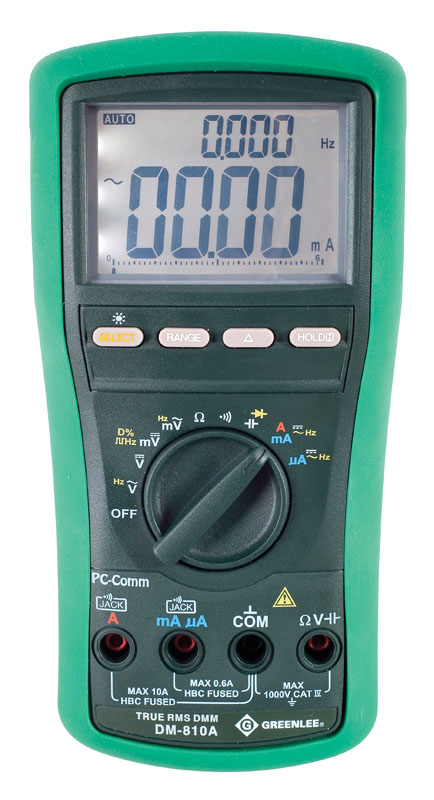

ESM™ Series Digital Multimeters. True RMS for no-compromise accuracy. Measures voltage, current,resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD with dual 10,000 count displays. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB interface DMSC-9U for direct-To-PC logging. Lifetime limited warranty....
ESM™ Series Digital Multimeters. True RMS for no-compromise accuracy. Measures voltage, current,resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD with dual 10,000 count displays. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB interface DMSC-9U for direct-To-PC logging. Lifetime limited warranty. Accessories included: (1)9V battery, test leads, protective boot, carrying case.
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN DM-810A DMM,TRMS,AC/DC,CAP(DM-8
- Label description
- Digital Multimeter
- Invoice description
- DMM,TRMS,AC/DC,CAP(DM-810A)
Specifications
- UPC
- 783310087434
- UNSPSC
- 41113630
- Country of Origin
- TW
- Type
- Digital
- Amperage Measurement
- 600, 6000μA; 60, 600mA; 6, 10A
- Battery
- (1) 9 V
- Capacitance
- 60, 600nF; 6, 60, 600μF; 6, 25 mF
- Conductance
- 99.99 nS
- Display
- Backlit LCD With Dual 10,000 Count
- Frequency Measurement
- 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
- Includes
- (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case
- Measurement Category
- CAT IV, 1000 V
- Replacement Part
- TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
- Resistance Measurement
- 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Standard
- CAT IV, C/UL US Listed, TRUE RMS, CE Listed
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Type
- Digital
- Voltage Measurement
- 60, 600 mV, 9.999, 99.99, 999.9 V
- Manufacturer keywords
- DM-810A;08743;DM810A;DM-810;07550;DM810;783310087434
