Videos & documents
Documents
DM-820A
SKU: DM-820A
MPN: DM-820A
Key specs
View all- Type
- Digital
Description
Product overview

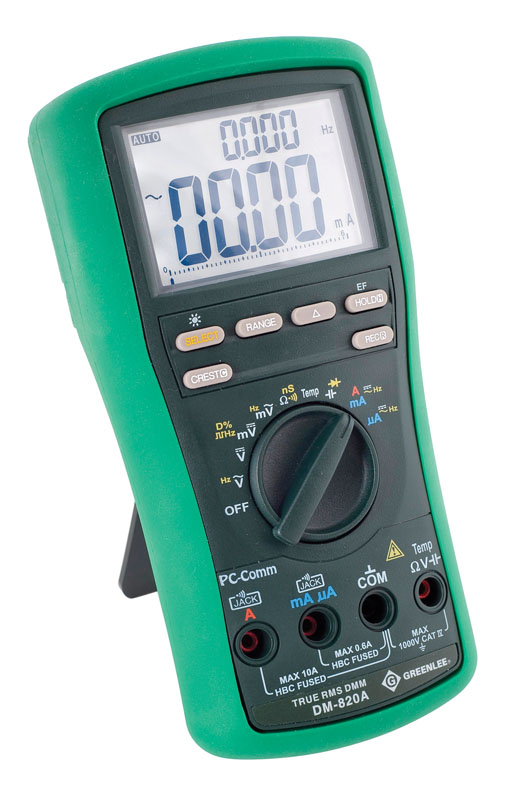

ESM™ Series Digital Multimeters. True RMS for no-compromise accuracy. Measures voltage, current,resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD with dual 10,000 count displays. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Crest capture (peak hold) plus recording of max, min, max-min and average. Two voltage d...
ESM™ Series Digital Multimeters. True RMS for no-compromise accuracy. Measures voltage, current,resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD with dual 10,000 count displays. BeepJack™ warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Crest capture (peak hold) plus recording of max, min, max-min and average. Two voltage detection modes, non-contact or using a single test lead. One temperature measurement using a type K thermocouple. Conductance measurement. Use optional USB interface DMSC-9U for direct-To-PC logging. Lifetime limited warranty. Accessories included: (1)9V battery, test leads, protective boot, carrying case.
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN DM-820A DMM, TRMS, AC/DC,CAP,TE
- Label description
- Digital Multimeter
- Invoice description
- DMM, TRMS, AC/DC,CAP,TEMP (DM-820A)
Specifications
- UPC
- 783310087441
- UNSPSC
- 41113630
- Country of Origin
- TW
- Type
- Digital
- Amperage Measurement
- 600, 6000μA; 60, 600mA; 6, 10A
- Battery
- (1) 9 V
- Capacitance
- 60, 600nF; 6, 60, 600μF; 6, 25 mF
- Conductance
- 99.99 nS
- Display
- Backlit LCD With Dual 10,000 Count
- Frequency Measurement
- 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
- Includes
- (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case
- Measurement Category
- CAT IV, 1000 V
- Replacement Part
- TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
- Resistance Measurement
- 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
- Standard
- CAT IV, C/UL US Listed, TRUE RMS, CE Listed
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Type
- Digital
- Voltage Measurement
- 60, 600 mV; 9.999, 99.99, 999.9 V
- Manufacturer keywords
- DM-820,'07551,DM820,DM-820A,'08744,DM820A
