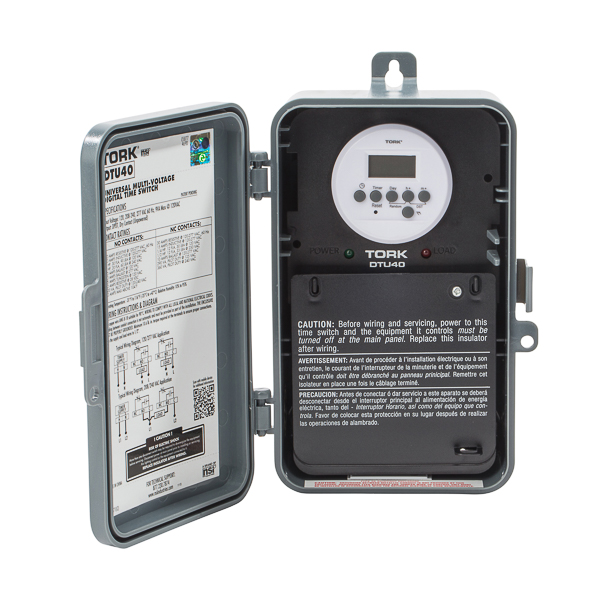

Tork 24 Hour or 7 Day Multi-Voltage Digital Time Switch APPLICATIONS: Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans FEATURES: TIMER SUPPLY: 120/208-24-277 VAC 60Hz DRY CONTACTS: DPDT MULTI-VOLTAGE: Automatic input voltage detection SCHEDULING: 7 ON &- OFF pairs of set points for individual programs on each day of the week. Minimum setting is 1 minute. 4 IN 1 CONTACTS: DPDT can also wire as SPST, SPDT &- DPST DAYLIGHT SAVINGS: Manual button push for one hour adjustment. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. RANDOM MODE: Varies ON and OFF times to create

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

DTU40

Manufacturer
Nsi Industries

$317.74 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

Tork 24 Hour or 7 Day Multi-Voltage Digital Time Switch APPLICATIONS: Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans FEATURES: TIMER SUPPLY: 120/208-24-277 VAC 60Hz DRY CONTACTS: DPDT MULTI-VOLTAGE: Automatic input voltage detection SCHEDULING: 7 ON &- OFF pairs of set points for individual programs on each day of the week. Minimum setting is 1 minute. 4 IN 1 CONTACTS: DPDT can also wire as SPST, SPDT &- DPST DAYLIGHT SAVINGS: Manual button push for one hour adjustment. MANU...

Tork 24 Hour or 7 Day Multi-Voltage Digital Time Switch APPLICATIONS: Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans FEATURES: TIMER SUPPLY: 120/208-24-277 VAC 60Hz DRY CONTACTS: DPDT MULTI-VOLTAGE: Automatic input voltage detection SCHEDULING: 7 ON &- OFF pairs of set points for individual programs on each day of the week. Minimum setting is 1 minute. 4 IN 1 CONTACTS: DPDT can also wire as SPST, SPDT &- DPST DAYLIGHT SAVINGS: Manual button push for one hour adjustment. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. RANDOM MODE: Varies ON and OFF times to create "lived-in" look when away. CLOCK FORMAT: AM/PM POWER OUTAGE BACKUP: Battery retains time and schedule. INDICATING LIGHTS: Power ON green and load ON red and LED indicators ENCLOSURE TYPE: Polycarbonate Indoor/Outdoor NEMA 3R BRAND EQUIVALENT: Intermatic GM40AVE MANUFACTURER: Tork, UPC: 786261240040 CONTACT RATINGS: GENERAL PURPOSE: 120-277VAC. NO Rating: 40A. NC Rating: 30A INDUCTIVE: 120-277VAC. NO Rating: 30A. NC Rating: 15A BALLAST: 120VAC. NO Rating: 30A. NC Rating: 10A 277VAC. NO Rating: 20A. NC Rating: 10A TUNGSTEN: 120VAC. NO Rating: 15A MOTOR LOAD: 120VAC. NO Rating: 1HP, 30FLA, 90LRA. NC Rating: 1/4HP, 12FLA, 30LRA 240VAC. NO Rating: 2HP, 20FLA, 60LRA. NC Rating: 1/2HP, 12FLA, 33LRA PILOT DUTY: 120VAC. NO Rating: 720VA. NC Rating: 290VA 240VAC. NO Rating: 720VA. NC Rating: 360VA RESISTIVE: 28VDC. NO Rating: 20A. MAX ABOVE 104°: 120-277VAC. NO Rating: 30A

150

UPC
786261240040
Action:
DPDT
Number Of Poles:
2
Size:
L=5.625 - H=8.312 - W=4.500 IN
Type:
7 Day Time Switch
Action:
DPDT
Base:
Screw
Contact Rating:
120-208-240-277
Enclosure:
NEMA 3R Polycarbonate Indoor-Outdoor
Environmental Conditions:
-31 to 116 F
Frequency Rating:
50-60 Hz
Initiation:
Contact
Mounting:
Screw Mount
Number Of Poles:
2
Operating Temperature:
-31 to 116 F
Phase:
1
Size:
L=5.625 - H=8.312 - W=4.500 IN
Standard:
cULus
Sub Brand:
Digital Time Controls
Timing Range:
0-168 h
Type:
7 Day Time Switch
