DVI-500T/K02

SKU: DVI-500T/K02

MPN: DVI-500T/K02

Key specs

View all
Type
Digital voltage kit indicates voltage up to 500kV with capacitive test point mode
Voltage Rating
100V - 500kV line-to-ground

Description

Product overview

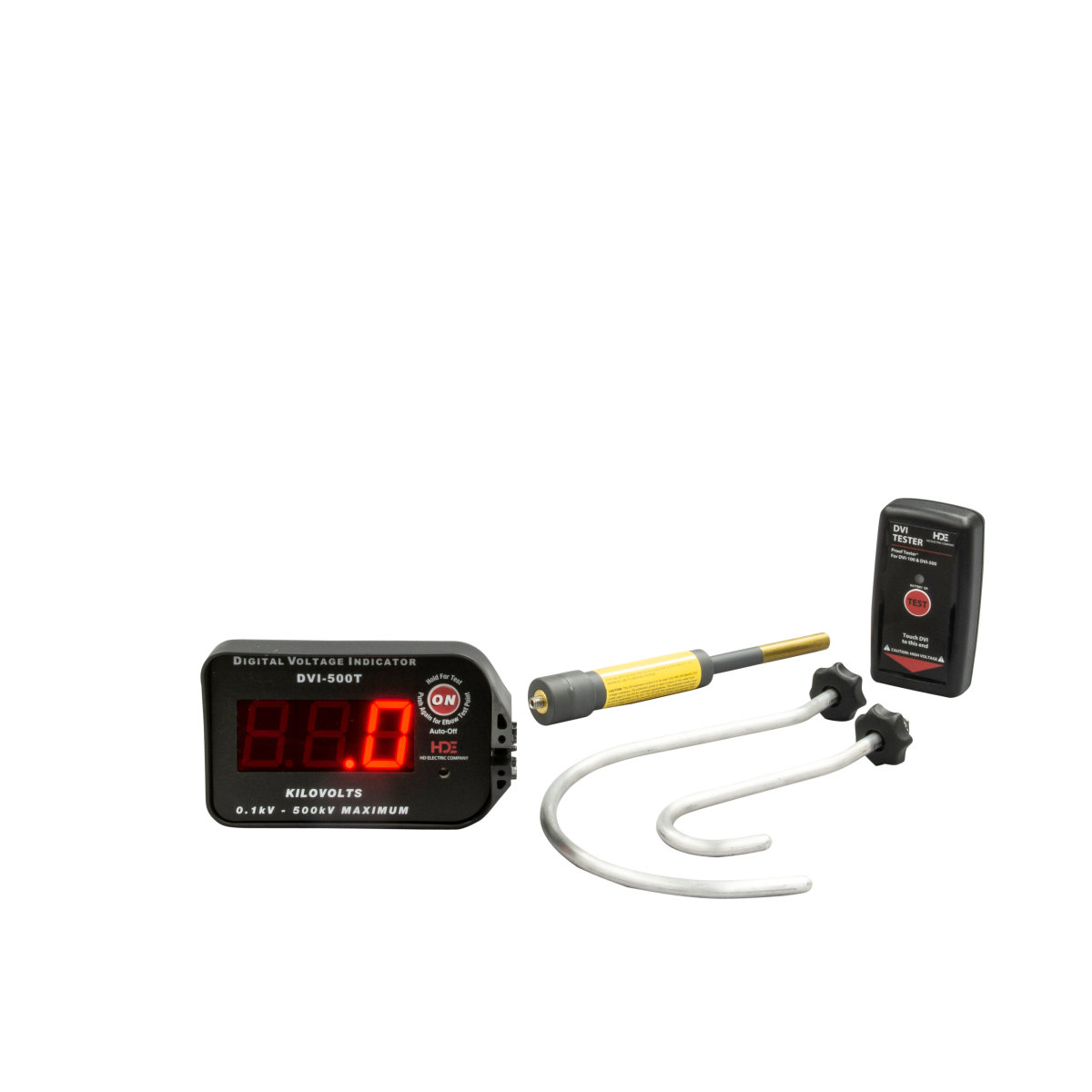

Digital voltage indicator with test point 500kV, OH/UG kit 2. Up to 500kV line-to-ground. Voltage readout distinguishes between nominal and induced voltages. Audible indication when voltage is detected. Test Point mode available. Auto-shutoff and low battery indication features. Versatile for overhead and underground applications

Digital voltage indicator with test point 500kV, OH/UG kit 2. Up to 500kV line-to-ground. Voltage readout distinguishes between nominal and induced voltages. Audible indication when voltage is detected. Test Point mode available. Auto-shutoff and low battery indication features. Versatile for overhead and underground applications

Manufacturer highlights

Additional manufacturer notes

Short name
GRN
Feed description
GRN DVI-500T/K02 DVI-500T HP-DVI-2,
Invoice description
DVI-500T HP-DVI-2,HP-DVI-6,IEP

Specifications

UPC
783310054863
Type
Digital voltage kit indicates voltage up to 500kV with capacitive test point mode
Voltage Rating
100V - 500kV line-to-ground
Accuracy
Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Display
LED display
Frequency Rating
AC 60Hz (50Hz model available)
Included
DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
Model
DVI-500T
Operating Temperature
-20°F to +140°F (-29°C to +60°C)
Sub Brand
HDE
Type
Digital voltage kit indicates voltage up to 500kV with capacitive test point mode
Voltage Rating
100V - 500kV line-to-ground

Do you have a question about DVI-500T/K02?

Request a quote

Videos & documents

Documents

Brochure Url Owners Manual
