DWZ100B
SKU: DWZ100B
MPN: DWZ100B
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 365 Day-7 Day Advanced - 1 Or 2 Channel
Description
Product overview

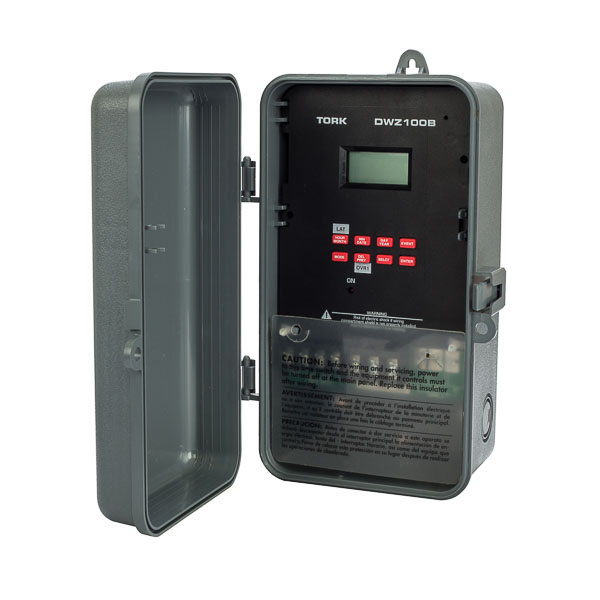

Tork 7/365 Day 1 Channel SPDT Astronomic Time Switch APPLICATIONS: Outdoor Lighting Security Lighting Parking Lot Lighting Canopy Lighting FEATURES: INPUT VOLTAGE: 120/208-240/277 50/60Hz DRY CONTACTS: SPDT NO. OF CHANNELS: 1 Channel SCHEDULING: 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 minute apart. SunSet ASTRONOMIC: Adjusts daily to changes in sunset times. Adjustable 10 - 60 degrees Northern or Southern latitudes. Can be individually offset +/- 1...
Tork 7/365 Day 1 Channel SPDT Astronomic Time Switch APPLICATIONS: Outdoor Lighting Security Lighting Parking Lot Lighting Canopy Lighting FEATURES: INPUT VOLTAGE: 120/208-240/277 50/60Hz DRY CONTACTS: SPDT NO. OF CHANNELS: 1 Channel SCHEDULING: 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 minute apart. SunSet ASTRONOMIC: Adjusts daily to changes in sunset times. Adjustable 10 - 60 degrees Northern or Southern latitudes. Can be individually offset +/- 1 to 240 minutes from both sunset and sunrise times. HOLIDAYS: 1 to 24 individual dates. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation scheduled ON or OFF, automatic operation then resumes. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM or Military time. POWER OUTAGE BACKUP: Permanent schedule retention. Super capacitor provides 7 days of real time backup. ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. BRAND EQUIVALENT: Intermatic ET70115CR Paragon EL-71 TORK UPC: 786261821898 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Contact Rating NO: 30A NC: 30A BALLAST: 120VAC. Contact Rating NO: 30A NC: 10A 277VAC. Contact Rating NO: 20A NC: 10A TUNGSTEN: 120-277VAC. Contact Rating NO: 15A NC: 2A PILOT DUTY: 120-277VAC. Contact Rating NO: 720VA NC: 720VA MOTOR LOAD: 120VAC. Contact Rating NO: 1HP NC: 1HP 208-277VAC. Contact Rating NO: 2HP NC: 2HP RESISTIVE: 28VDC. Contact Rating NO: 30A NC: 30A
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- TORK DWZ100B MULTIVOLT 365 DAY AST
- Invoice description
- 356 Day Astro Digital Timer 1CH Title 24
Specifications
- UPC
- 786261821898
- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Type
- 365 Day-7 Day Advanced - 1 Or 2 Channel
- Action
- SPDT
- Base
- Screw
- Contact Rating
- 120-208-240-277
- Enclosure
- NEMA 3R Noryl Indoor-Outdoor
- Environmental Conditions
- -40 to + 158 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Temperature
- -40 to + 158 F
- Phase
- 1
- Size
- L=5.000 - H=9.125 - W=4.500 IN
- Standard
- cULus
- Sub Brand
- Digital Time Controls
- Timing Range
- 365 Day-7 Day Advanced
- Type
- 365 Day-7 Day Advanced - 1 Or 2 Channel
