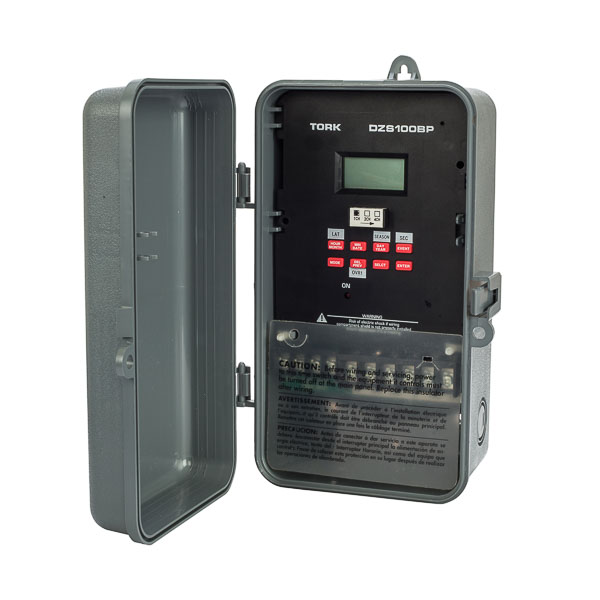

DZS100BP

Tork 365/7 Day Advanced 1 Channel DPDT Astronomic Time Switch APPLICATIONS: HVAC Equipment Horns and Bells Interior Lighting Electric Motors Outdoor Lighting and Signs FEATURES: TIMING ACCURACY: Line Frequency INPUT VOLTAGE: 120/208-240/277 50/60Hz DRY CONTACTS: DPDT NO. OF CHANNELS: 1 Channel TERMINAL RANGE: #14-#16AWG for Line Input #12-#16AWG Load Outputs OPERATING TEMPERATURE: -40 degrees to +158 degrees F (-40 degrees to 70 degrees C) POWER CONSUMPTION: 5VA Max SCHEDULING: 99 ON/OFF set poi... Read more

Tork 365/7 Day Advanced 1 Channel DPDT Astronomic Time Switch APPLICATIONS: HVAC Equipment Horns and Bells Interior Lighting Electric Motors Outdoor Lighting and Signs FEATURES: TIMING ACCURACY: Line Frequency INPUT VOLTAGE: 120/208-240/277 50/60Hz DRY CONTACTS: DPDT NO. OF CHANNELS: 1 Channel TERMINAL RANGE: #14-#16AWG for Line Input #12-#16AWG Load Outputs OPERATING TEMPERATURE: -40 degrees to +158 degrees F (-40 degrees to 70 degrees C) POWER CONSUMPTION: 5VA Max SCHEDULING: 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 minute apart. SunSet ASTRONOMIC: Adjusts daily to changes in sunset times. Adjustable 10 degrees - 60 degrees Northern or Southern latitudes can be individually offset +/-1 to 240 minutes from both sunset and sunrise times. SEASONS: 1 to 4 with different daily schedules which can wrap around into the new year. HOLIDAYS: 1 to 24 individual dates. SIGNAL/PULSE DURATION: 2 different settings per channel: each 1-99 seconds. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. In signal mode, activates pulse. CLOCK FORMAT: AM/PM or Military time. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 7 days of real time backup. MEMORY MODULE: Removable MM can be programmed at any one location and inserted into another DZS series unit. See Part #USB-MMP (Sold Separately). COPY FEATURE: Unit can be configured to copy program schedule to multiple memory modules. OPTION: Memory Module Programmer with software for computer connection programming. Also allows stand alone battery operation for portable copy feature. See Part #USB-MMP (Sold Separately). ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. MANUFACTURER: Tork UPC: 786261821829 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Contact Rating NO: 30A NC: 30A BALLAST: 120VAC. Contact Rating NO: 30A NC: 10A 277VAC. Contact Rating NO: 20A NC: 10A TUNGSTEN: 120-277VAC. Contact Rating NO: 15A NC: 2A PILOT DUTY: 120-277VAC. Contact Rating NO: 720VA NC: 720VA MOTOR LOAD: 120VAC. Contact Rating NO: 1HP NC: 1HP 208-277VAC. Contact Rating NO: 2HP NC: 2HP RESISTIVE: 28VDC. Contact Rating NO: 30A NC: 30A Read less
