E103B
SKU: E103B
MPN: E103B
Key specs
View all- Action
- DPST
- Number Of Poles
- 2
- Size
- L=5.062 - H-8.312 - W=3.062 IN
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
Description
Product overview

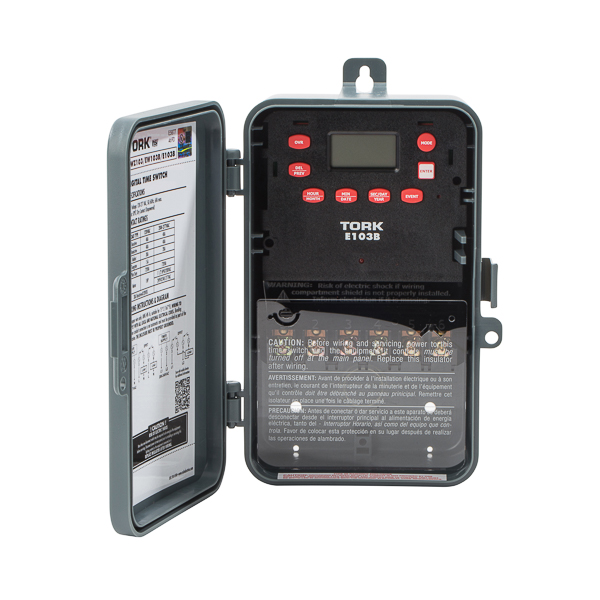

Tork 24 Hour 1 Channel DPST Digital Time Switch APPLICATIONS: Signs Air Conditioning Lighting Sump Pumps Ventilating Fans FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 12-277 VAC 50/60Hz OUTPUT DRY CONTACTS: DPST SCHEDULING: 20 ON/OFF set points repeat each day. Minimum Setting 1 minute. NO. OF CHANNELS: 1 Channel DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operatio...
Tork 24 Hour 1 Channel DPST Digital Time Switch APPLICATIONS: Signs Air Conditioning Lighting Sump Pumps Ventilating Fans FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 12-277 VAC 50/60Hz OUTPUT DRY CONTACTS: DPST SCHEDULING: 20 ON/OFF set points repeat each day. Minimum Setting 1 minute. NO. OF CHANNELS: 1 Channel DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 4 days of real time backup. ENCLOSURE: Plastic Indoor/Outdoor NEMA 3R with lockable hasp. MANUFACTURER: Tork, UPC: 786261824110 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Rating NO: 40A INDUCTIVE: 120-277VAC. Rating NO: 40A BALLAST: 120VAC. Rating NO: 30A 208-277VAC. Rating NO: 20A TUNGSTEN: 120VAC. Rating NO: 15A PILOT DUTY: 120-277VAC. Rating NO: 720VA MOTOR LOAD: 120VAC. Rating NO: 1HP 208VAC. Rating NO: 1.5 HP 240-277VAC. Rating NO: 2HP RESISTIVE: 28VDC. Rating NO: 30A
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- TORK E103B MULTIVOLT 24HR SUPERCAP
- Invoice description
- 24 Hr Digital Timer DPST
Specifications
- UPC
- 786261824110
- Action
- DPST
- Number Of Poles
- 2
- Size
- L=5.062 - H-8.312 - W=3.062 IN
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
- Action
- DPST
- Base
- Screw
- Contact Rating
- 120-277 VAC
- Enclosure
- NEMA 3R Plastic Indoor-Outdoor
- Environmental Conditions
- -40 to + 149 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Screw Mount
- Number Of Poles
- 2
- Operating Temperature
- -40 to + 149 F
- Phase
- 1
- Size
- L=5.062 - H-8.312 - W=3.062 IN
- Standard
- cULus
- Sub Brand
- Digital Time Controls
- Timing Range
- 0-24 h
- Type
- 24 Hour Time Switch - 1 Or 2 Channel
