Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$8,458.73 / EA
manufacturer discounts
learn about discounts
- $7,350.35 for $500.00+
- $7,000.33 for $1,000.00+
- $6,766.99 for $2,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

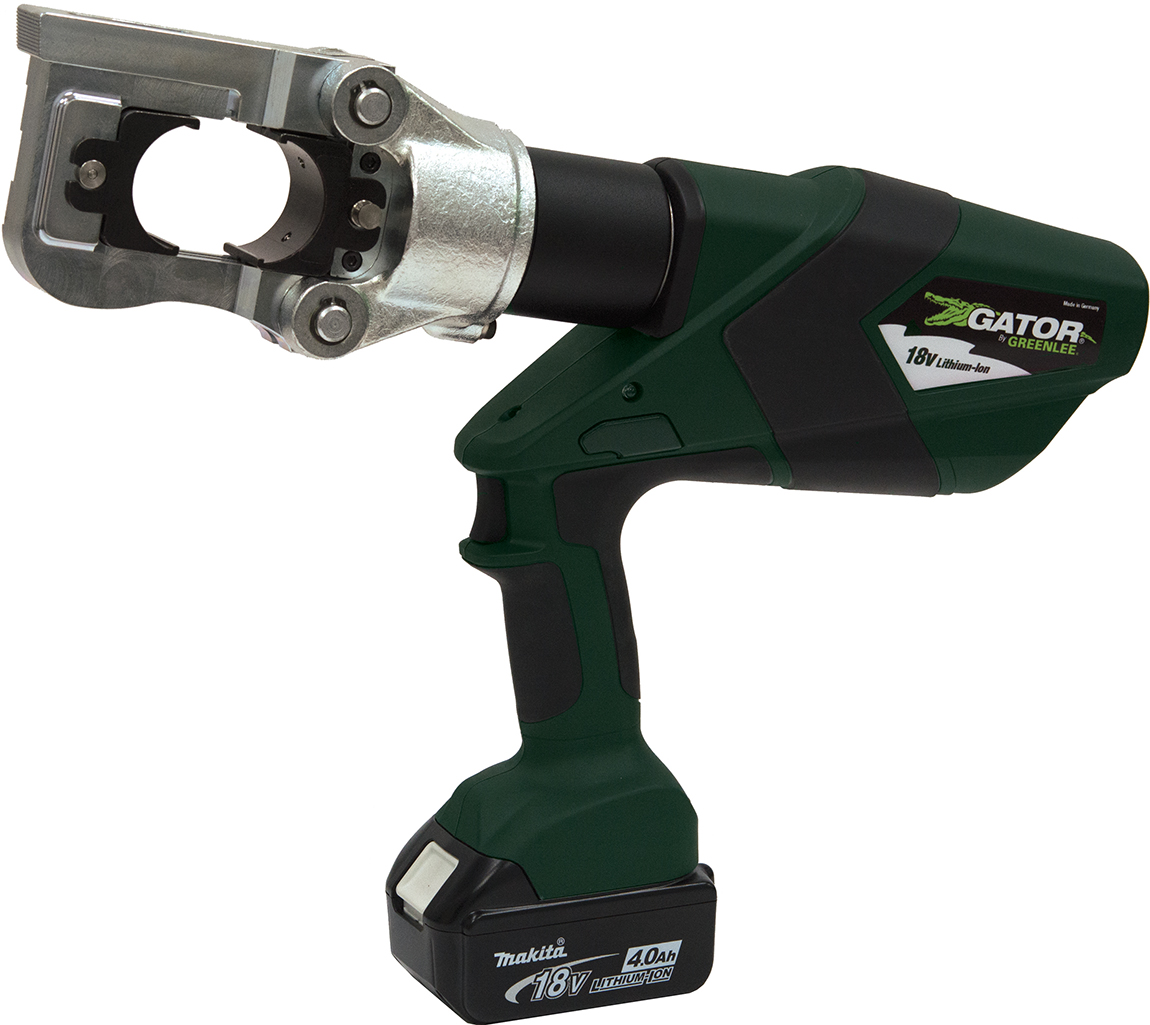

12 Ton Multi Tool, Li-Ion Standard 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. State of the art 18 V Lithium Ion (L...
12 Ton Multi Tool, Li-Ion Standard 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. State of the art 18 V Lithium Ion (Li-Ion) battery provides 70 percent more cycles per charge and faster cycle times. Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Optional CCX Blades and adapters. U.S. Patent #6,206,663, #6,532,790. When used with Greenlee KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. The tools also accept all industry U type dies. These tools drive knockout punches through 5-5/8" diameter.
150
- UPC
- 783310611486
- UNSPSC
- 27111518
- Country of Origin
- DE
- Type:
- Die style crimper/cutter
- Connector Type:
- Color-coded lugs and splices
- Crimping Capacity:
- 750 Kcmil (MCM) Cu & Al
- Crimping Force:
- 24,000 lbs. (106 kN) LB
- Handle Type:
- Pistol Style with over molded rubber grip
- Overall Length:
- 16.5 IN (420mm)
- Standard:
- C/US UL Listed
- Sub Brand:
- Gator
- Type:
- Die style crimper/cutter
- Wire Size:
- 8 AWG - 750 Kcmil Cu & Al
EK06ATCL11
$6,826.37 /ea
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 120V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
| Attributed Data | Included |
|---|---|
| Accessory | 52178 UPC 52178 120 V Charger Yes |
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion Yes |
| Battery Charge Time | 1 Hour Yes |
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Yes |
| Crimping Force | 12400.000 LB (55.000 KN) Yes |
| Overall Length | 14.000 IN (355.000 MM) Yes |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Yes |
| Weight | 12.000 LB (5.400 KG) Yes |
EK06ATCL12
$6,865.92 /ea
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 12V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
| Attributed Data | Included |
|---|---|
| Accessory | 52178 UPC 52178 120 V Charger Yes |
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion Yes |
| Battery Charge Time | 1 Hour Yes |
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Yes |
| Crimping Force | 12400.000 LB (55.000 KN) Yes |
| Overall Length | 14.000 IN (355.000 MM) Yes |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Yes |
| Weight | 12.000 LB (5.400 KG) Yes |
EK06ATCL22
$6,770.05 /ea
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
| Attributed Data | Included |
|---|---|
| Accessory | 52178 UPC 52178 120 V Charger Yes |
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion Yes |
| Battery Charge Time | 1 Hour Yes |
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Yes |
| Crimping Force | 12400.000 LB (55.000 KN) Yes |
| Overall Length | 14.000 IN (355.000 MM) Yes |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Yes |
| Weight | 12.000 LB (5.400 KG) Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
EK06ATCL11
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 120V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a vi...
$6,826.37 / EA
|
EK06ATCL12
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 12V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a vis...
$6,865.92 / EA
|
EK06ATCL22
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a vi...
$6,770.05 / EA
|
|
| Attributed Data | |||
| Accessory | 52178 UPC 52178 120 V Charger 52178 UPC 52178 120 V Charger | ||
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion 18 V, 3.0 AMP-HR Lithium-Ion | ||
| Battery Charge Time | 1 Hour 1 Hour | ||
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices | ||
| Crimping Force | 12400.000 LB (55.000 KN) 12400.000 LB (55.000 KN) | ||
| Overall Length | 14.000 IN (355.000 MM) 14.000 IN (355.000 MM) | ||
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger | ||
| Standard | C/US UL Listed C/US UL Listed | ||
| Sub Brand | Gator Gator | ||
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Battery Powered, Open Rubber Covered Head, Quad Point Dieless | ||
| Weight | 12.000 LB (5.400 KG) 12.000 LB (5.400 KG) | ||
