$11.63 / EA
Local stock: 0
Lead time:
over 7 working days
1-1/4" Set Screw C Type EMT Conduit Body
1-1/4" Set Screw C Type EMT Conduit Body
Topaz�s EMT set screw C Type Conduit Body is manufactured from copper free aluminum. C type conduit...150
Topaz�s EMT set screw C Type Conduit Body is manufactured from copper free aluminum. C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; flat back design for easy, flat mounting against surface. UL listed
- UPC
- 751338204409
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Die-Cast Aluminum
- Type:
- C Type Conduit Body
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- For Use With:
- EMT Conduit
- Form:
- C
- Height:
- 2.77 in
- Height (IN):
- 2.770 IN
- Hub Size:
- 1.25 in
- Label Description:
- EMT CONDUIT BODY- C TYPE
- Length:
- 8.528 IN
- Material:
- Die-Cast Aluminum
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 15.937
- Number of Conductors:
- 3
- Screw Material:
- Steel
- Size (IN):
- 1-1/4" IN
- Size (trade) (IN):
- 1-1/4" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- C Type Conduit Body
- WebShop Width (IN):
- 2.490 IN
- Width:
- 2.49 in
- Wire Size:
- 2 AWG
Recently Viewed
-
-
TP12-W
LEGRAND/PASS & SEYMOUR
Unfortunately, we do not have a description available for TP12-W. Please call (800) 462-7733 f...
See more details -

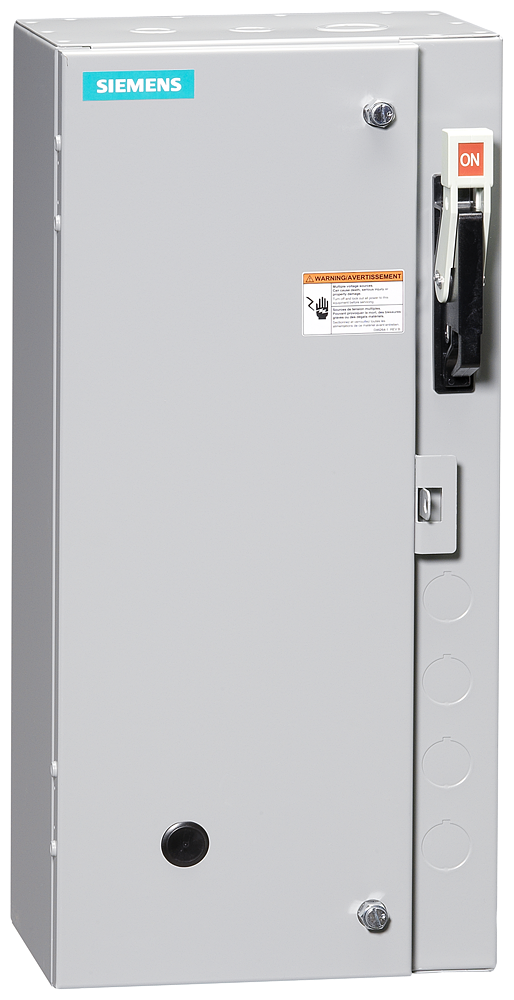

LEDB1C003120B
