EC4

SKU: EC4-TOPAZ

MPN: EC4

Key specs

View all
Material
Die-Cast Aluminum
Type
C Type Conduit Body

Description

Product overview

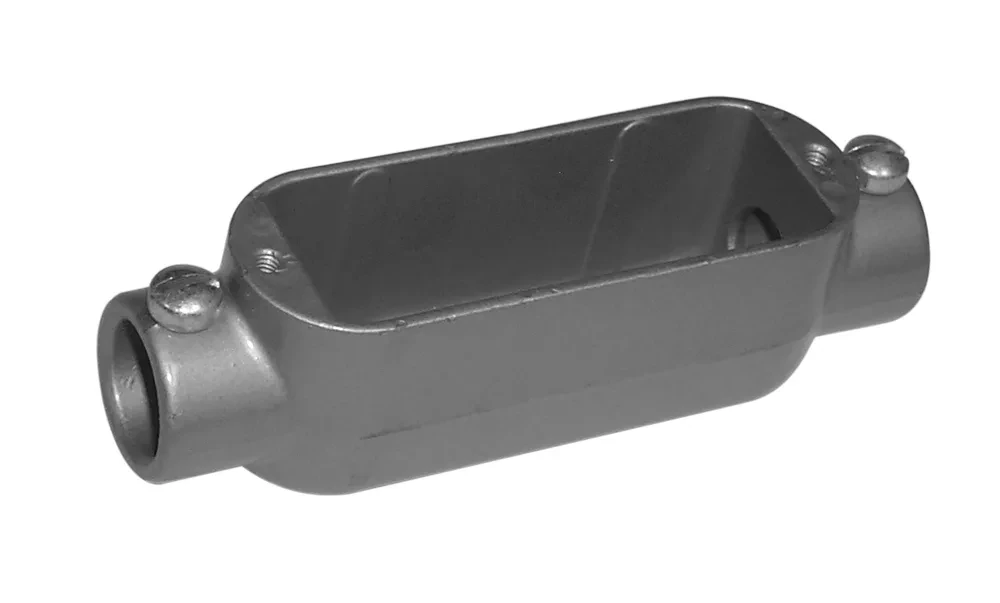

1-1/4" Set Screw C Type EMT Conduit Body

1-1/4" Set Screw C Type EMT Conduit Body

Manufacturer highlights

Topaz's EMT set screw C Type Conduit Body is manufactured from copper free aluminum. C type conduit bodies are engineered with a straight through conf...

Topaz's EMT set screw C Type Conduit Body is manufactured from copper free aluminum. C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; flat back design for easy, flat mounting against surface. UL listed

Additional manufacturer notes

Short name
TPZ
Feed description
TPZ EC4 1-1/4" EMT SS "C" 2/10-PK
Invoice description
1-1/4" EMT SS "C" 2/10-PK

Specifications

UPC
751338204409
UNSPSC
39131708
Country of Origin
MUL
Material
Die-Cast Aluminum
Type
C Type Conduit Body
Connection
Female Threaded
Connectors (IN)
Female Threaded IN
For Use With
EMT Conduit
Form
C
Height
2.77 in
Height (IN)
2.770 IN
Hub Size
1.25 in
Label Description
EMT CONDUIT BODY- C TYPE
Length
8.528 IN
Material
Die-Cast Aluminum
Mounting
Wall Mount
Nominal Length Inches
15.937
Number of Conductors
3
Screw Material
Steel
Size (IN)
1-1/4" IN
Size (trade) (IN)
1-1/4" IN
Standard
UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type
C Type Conduit Body
WebShop Width (IN)
2.490 IN
Width
2.49 in
Wire Size
2 AWG
Manufacturer keywords
1-1/4" EMT SS "C" 2/10-PK
