ECNR300
SKU: ECNR300
MPN: ECNR300
Key specs
View all- Amperage Rating
- 300 A
- Size
- 2.38 In Diameter X 8.63 In Length
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
Description
Product overview

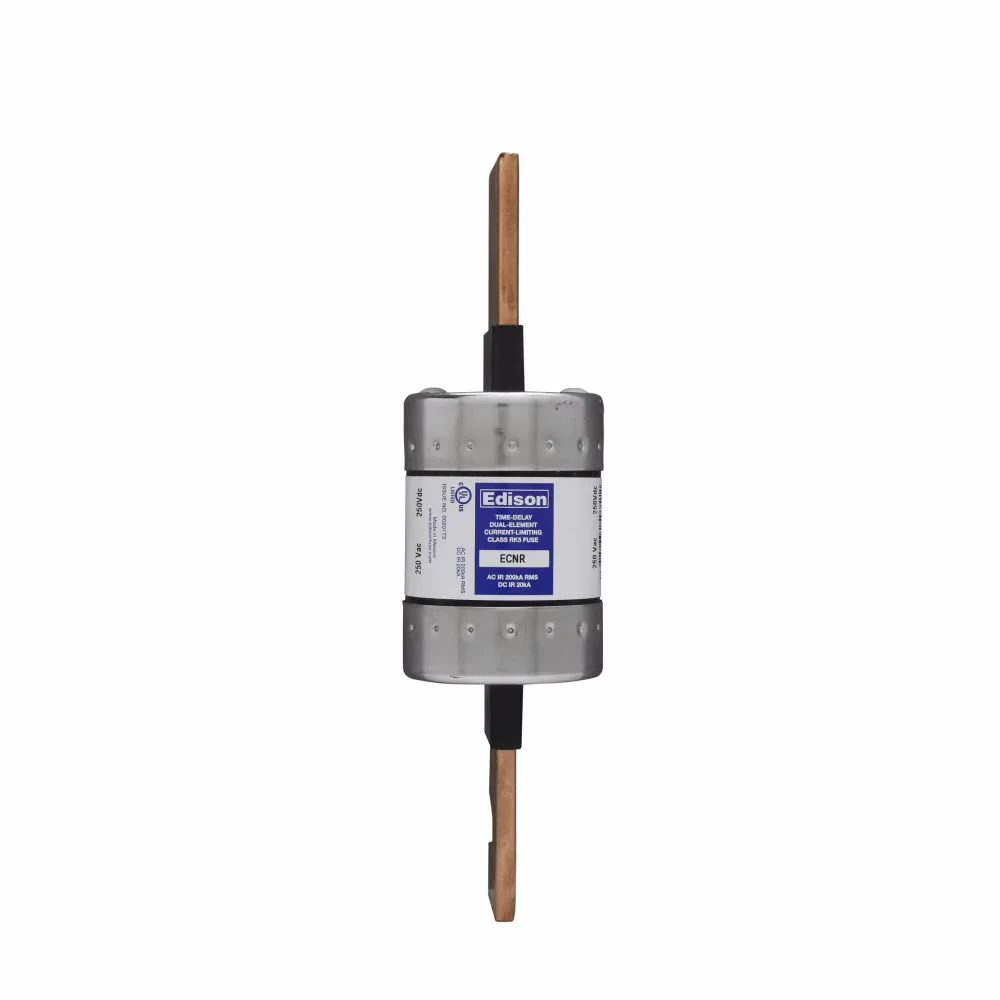

Eaton Edison ECNR fuse, Superior overload and cycling capabilities, 250 Vac, 125 Vdc, 300A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Eaton Edison ECNR fuse, Superior overload and cycling capabilities, 250 Vac, 125 Vdc, 300A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Manufacturer highlights
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, wi...
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- ECNR300 UL CLASS RK-5 TIME DELAY,
- Invoice description
- UL CLASS RK-5 TIME DELAY
Specifications
- UPC
- 782634507512
- UNSPSC
- 39121606
- Country of Origin
- MX
- Amperage Rating
- 300 A
- Size
- 2.38 In Diameter X 8.63 In Length
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
- Amperage Rating
- 300 A
- Class
- RK-5
- Connection
- Blade end x blade end
- Dimensions
- 3.0000 IN X 0.6250 IN X 0.6250 IN
- Element
- Dual
- Interrupt Rating
- 200 kAIC
- Response Time
- 10 S at 500%
- Size
- 2.38 In Diameter X 8.63 In Length
- Standard
- CE Marked
- Sub Brand
- Edison
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
