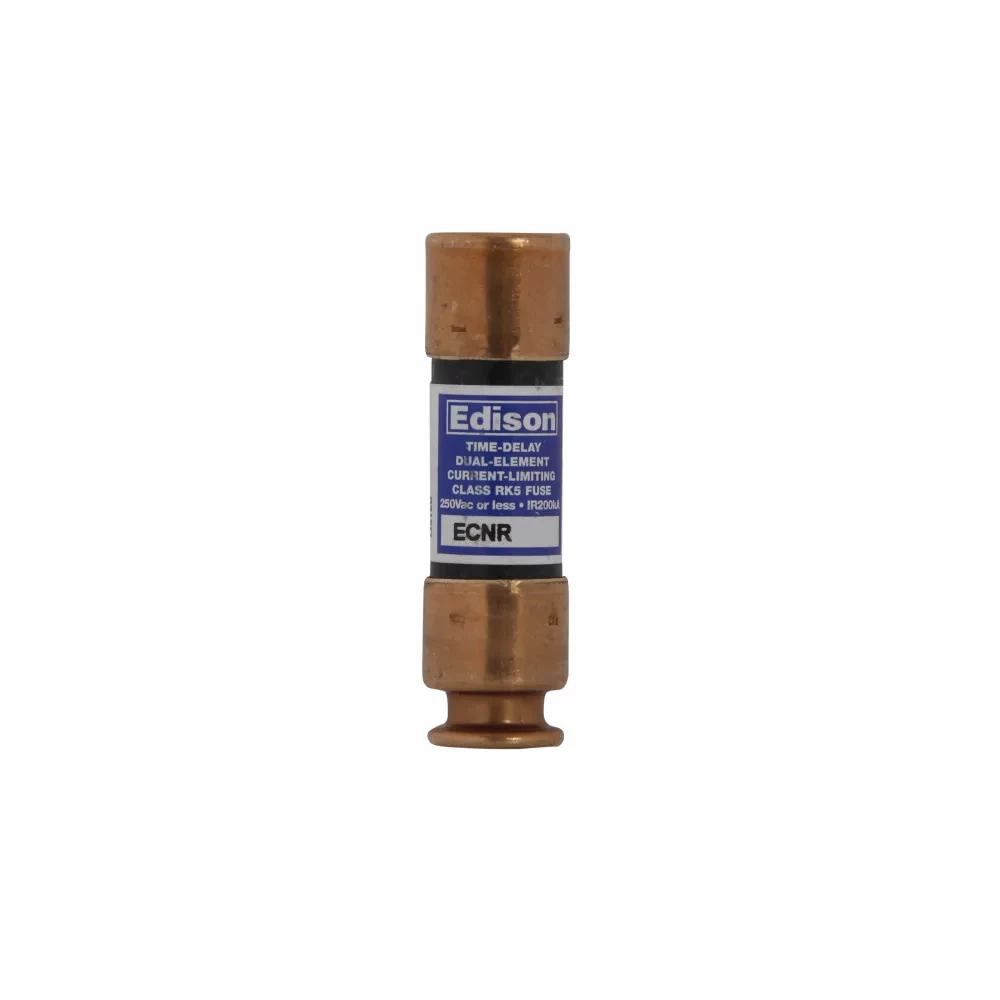

ECNR30-EDF
Eaton Edison ECNR fuse, Superior overload and cycling capabilities, 250 Vac, 125 Vdc, 30A, 200 kAIC, Non Indicating, Time delay, Current-lim...
$4.59 / EA
1 available
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
ECSR350
SKU: ECSR350
MPN: ECSR350
Key specs
View all- Amperage Rating
- 350 A
- Size
- 2.34 In Diameter X 11.63 In Length
- Type
- Fuse
- Voltage Rating
- 600 V
Description
Product overview
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 350A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 350A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Manufacturer highlights
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, wi...
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- ECSR350 UL CLASS RK-5 TIME DELAY,
- Invoice description
- UL CLASS RK-5 TIME DELAY
Specifications
- UPC
- 782634508526
- UNSPSC
- 39121606
- Country of Origin
- MX
- Amperage Rating
- 350 A
- Size
- 2.34 In Diameter X 11.63 In Length
- Type
- Fuse
- Voltage Rating
- 600 V
- Amperage Rating
- 350 A
- Class
- RK-5
- Connection
- Blade end x blade end
- Dimensions
- 5.0000 IN X 0.8100 IN X 0.8100 IN
- Element
- Dual
- Interrupt Rating
- 200 kAIC
- Response Time
- 10 S at 500%
- Size
- 2.34 In Diameter X 11.63 In Length
- Standard
- CE Marked
- Sub Brand
- Edison
- Type
- Fuse
- Voltage Rating
- 600 V
Similar items
Compare alternates in this category before ordering.
Similar item

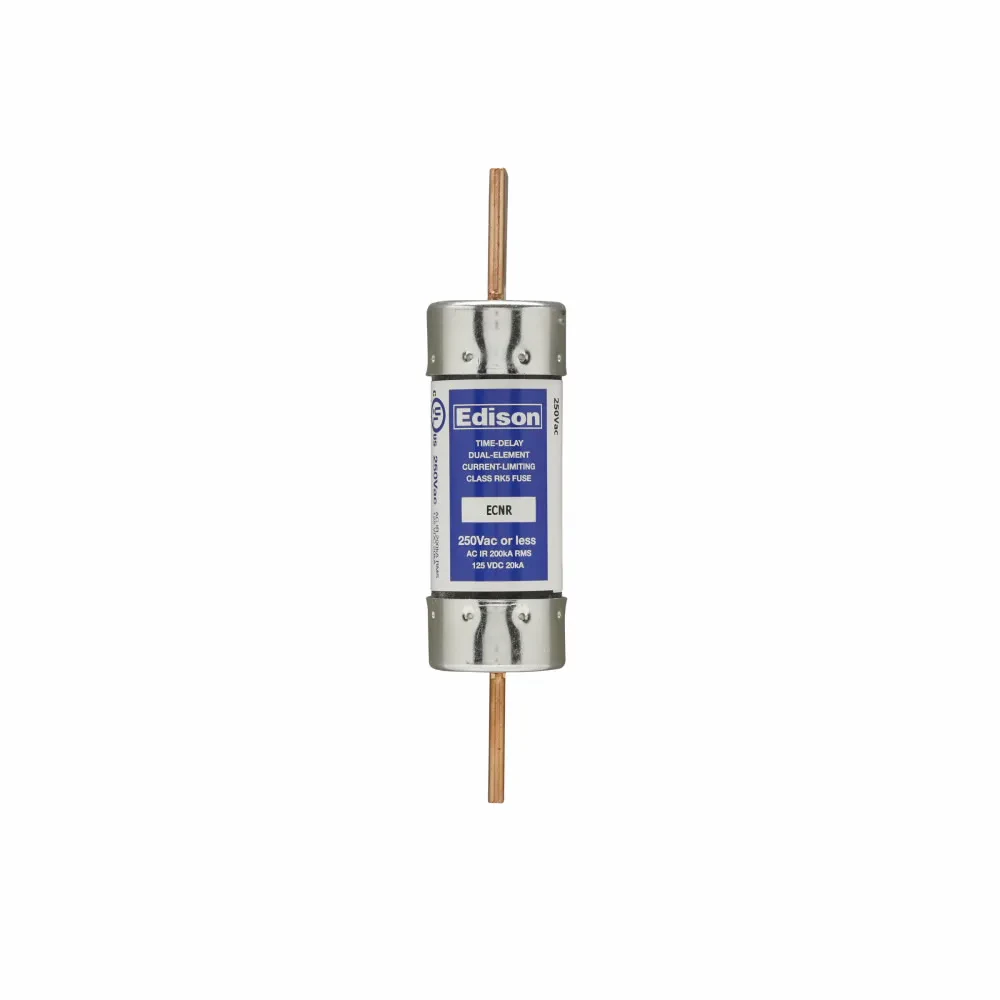

ECNR200-EDF
