$212.16 / EA

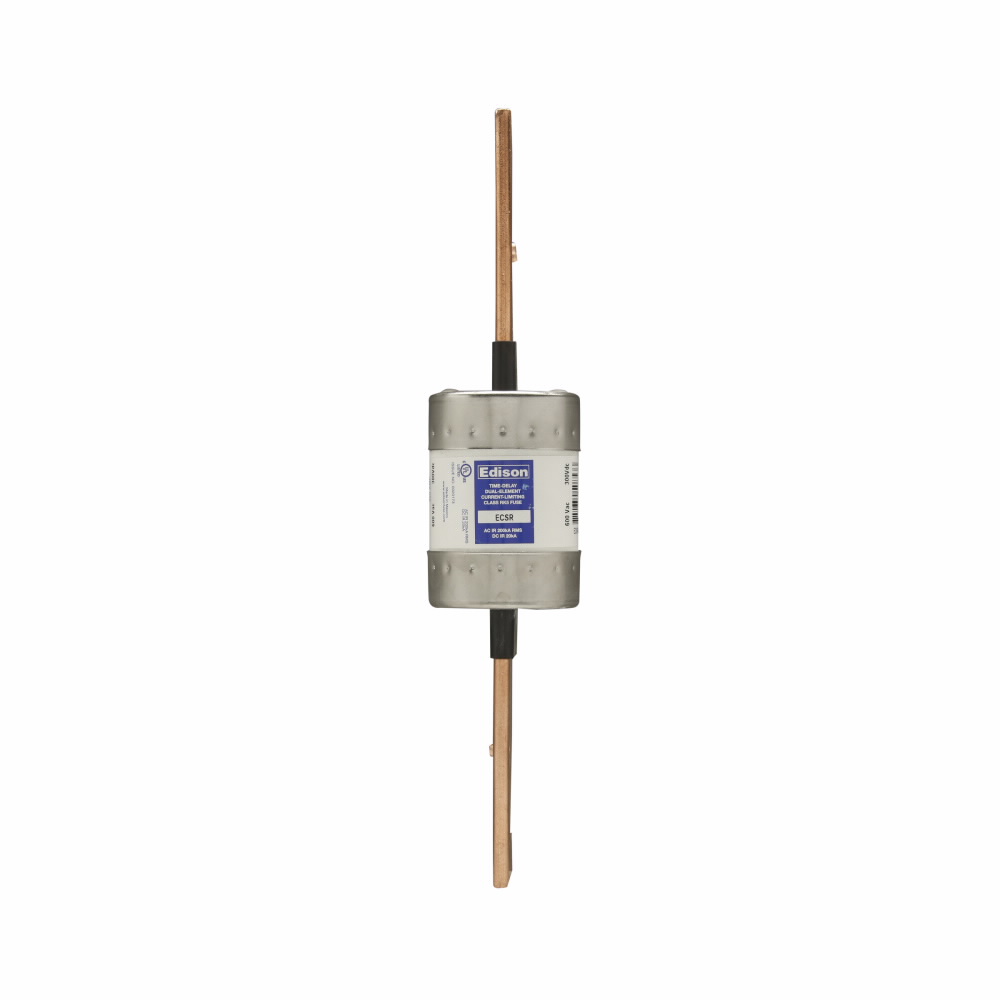

Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 300A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 300A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent pro...150
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
- UPC
- 782634508519
- UNSPSC
- 39121606
- Country of Origin
- MX
- Amperage Rating:
- 300 A
- Size:
- 2.34 In Diameter X 11.63 In Length
- Type:
- Fuse
- Voltage Rating:
- 600 V
- Amperage Rating:
- 300 A
- Class:
- RK-5
- Connection:
- Blade end x blade end
- Dimensions:
- 5.5000 IN X 1.6000 IN X 1.0600 IN
- Element:
- Dual
- Interrupt Rating:
- 200 kAIC
- Response Time:
- 10 S at 500%
- Size:
- 2.34 In Diameter X 11.63 In Length
- Standard:
- CE Marked
- Sub Brand:
- Edison
- Type:
- Fuse
- Voltage Rating:
- 600 V
