Call Us Today: (800) 462-7733
Dale Electric Supply Co Inc

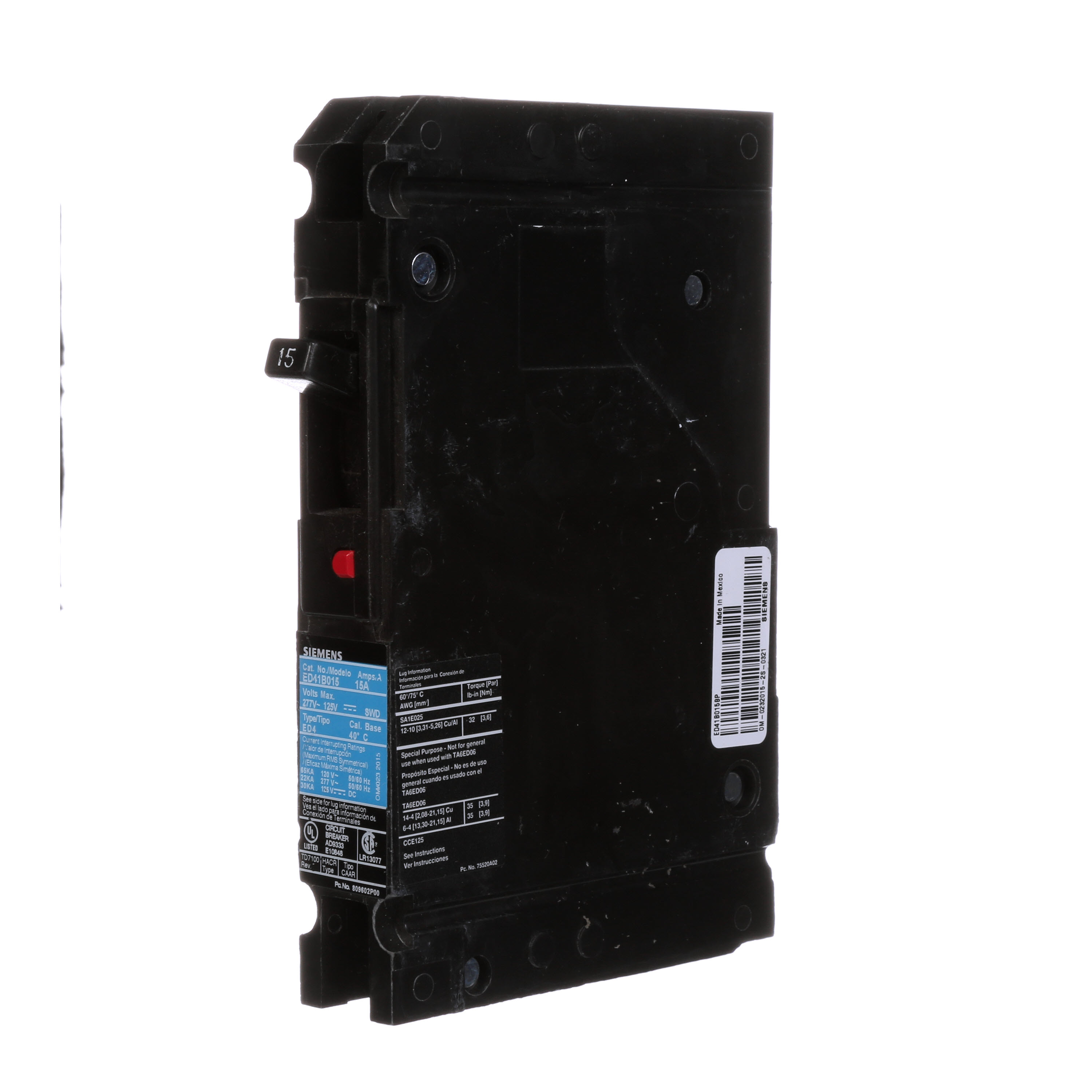

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 15A 1-POLE (22KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES VALUE PACK, LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 15A 1-POLE (22KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES VALUE PACK, LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

ED41B015BP

$503.01 / EA

manufacturer discounts
learn about discounts

  • $450.97 for $1,500.00+
  • $433.63 for $2,500.00+
  • $416.28 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 15A 1-POLE (22KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES VALUE PACK, LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 15A 1-POLE (22KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES VALUE PACK, LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.

150

UPC
783643003149
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
1
Type:
ED4
Voltage Rating:
277VAC OR 120VAC OR 125VDC
Actuator:
Varying
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
ED
Frequency Rating:
50/60 Hz
Height:
5 in
Interrupt Rating:
22KAIC
Length:
6 in
Load Rating:
N/A
Material:
N/A
Number Of Poles:
1
Operating Temperature:
40C
Standard:
HACR
Sub Brand:
Sentron
Trip Range:
N/A
Trip Type:
Thermal-Magnetic
Type:
ED4
Voltage Rating:
277VAC OR 120VAC OR 125VDC
Width:
1 in
