$6,240.63 / EA
manufacturer discounts
learn about discounts
- $5,422.89 for $500.00+
- $5,164.66 for $1,000.00+
- $4,992.50 for $2,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

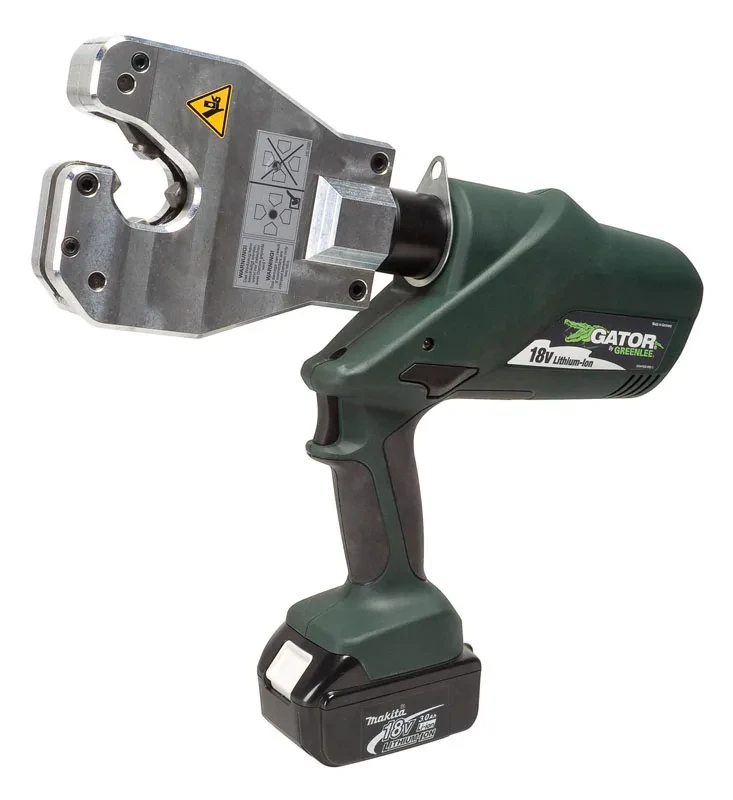

Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to...
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 230V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
150
- UPC
- 783310520603
- UNSPSC
- 27111518
- Country of Origin
- DE
- Type:
- Battery Powered, Open Rubber Covered Head, Quad Point Dieless
- Accessory:
- 52178 UPC 52178 120 V Charger
- Battery:
- 18 V, 3.0 AMP-HR Lithium-Ion
- Battery Charge Time:
- 1 Hour
- Crimping Capacity:
- 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices
- Crimping Force:
- 12400.000 LB (55.000 KN)
- Overall Length:
- 14.000 IN (355.000 MM)
- Replacement Part:
- 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
- Standard:
- C/US UL Listed
- Sub Brand:
- Gator
- Type:
- Battery Powered, Open Rubber Covered Head, Quad Point Dieless
- Weight:
- 12.000 LB (5.400 KG)
EK06ATCL11
$6,292.49 /ea
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 120V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
| Attributed Data | Included |
|---|---|
| Accessory | 52178 UPC 52178 120 V Charger Yes |
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion Yes |
| Battery Charge Time | 1 Hour Yes |
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Yes |
| Crimping Force | 12400.000 LB (55.000 KN) Yes |
| Overall Length | 14.000 IN (355.000 MM) Yes |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Yes |
| Weight | 12.000 LB (5.400 KG) Yes |
EK06ATCL12
$6,328.97 /ea
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 12V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.
| Attributed Data | Included |
|---|---|
| Accessory | 52178 UPC 52178 120 V Charger Yes |
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion Yes |
| Battery Charge Time | 1 Hour Yes |
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices Yes |
| Crimping Force | 12400.000 LB (55.000 KN) Yes |
| Overall Length | 14.000 IN (355.000 MM) Yes |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Yes |
| Weight | 12.000 LB (5.400 KG) Yes |

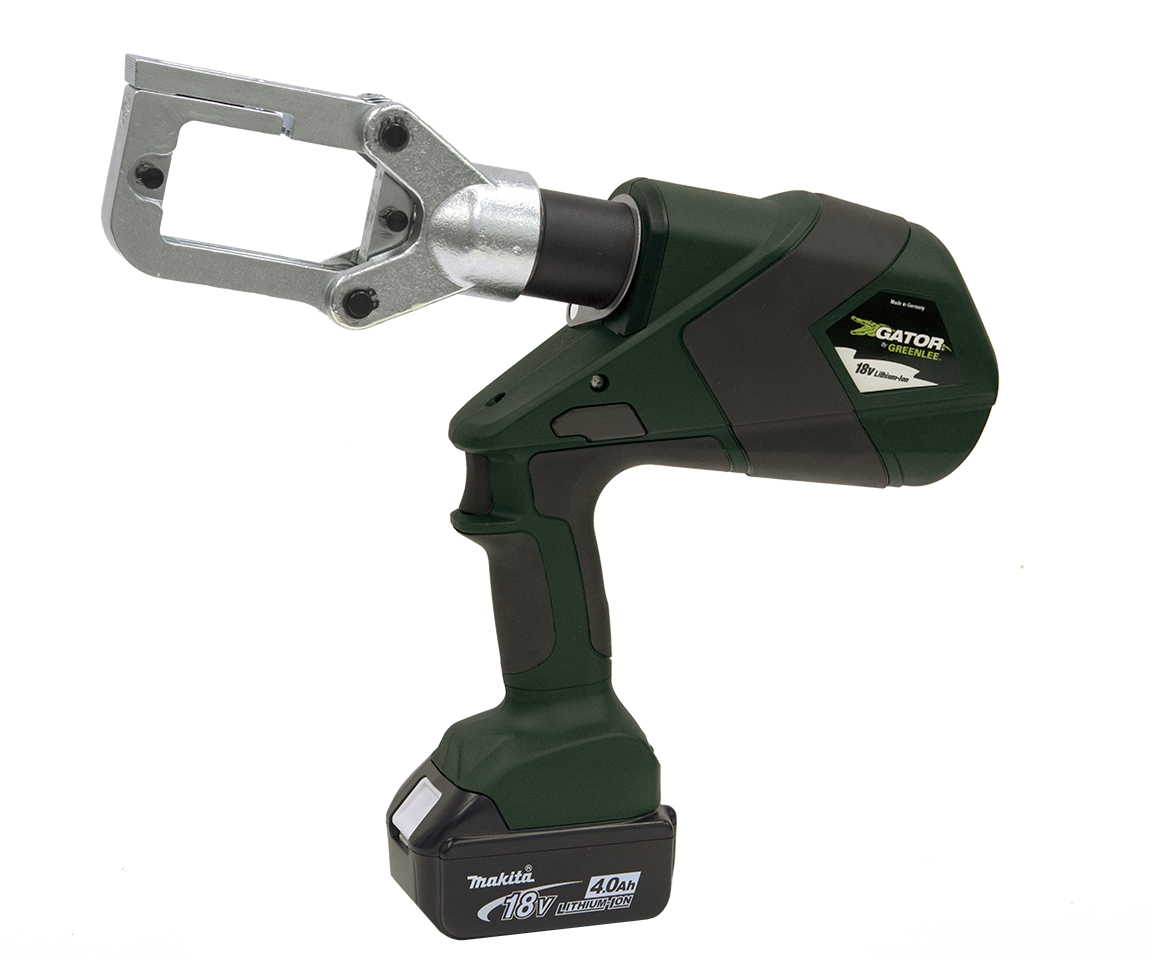

E6CCXLXB
$4,586.54 /ea
6 Ton Multi Tool, Li-Ion Standard Base Bare Tool. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V Lithium Ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger. Use optional CCX blades and adapters. U.S. Patent #6,206,663, #6,532,790. When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2" diameter.
| Attributed Data | Included |
|---|---|
| Connector Type | Color-coded lugs and splices Yes |
| Crimping Capacity | 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al Yes |
| Handle Type | Pistol Style with over molded rubber grip Yes |
| Overall Length | 14.75 IN (375mm) Yes |
| Standard | C/US UL Listed Yes |
| Sub Brand | Gator Yes |
| Type | Die style crimper/cutter Yes |
| Wire Size | 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
EK06ATCL11
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 120V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a vi...
$6,292.49 / EA
|
EK06ATCL12
Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 12V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a vis...
$6,328.97 / EA
|
E6CCXLXB
6 Ton Multi Tool, Li-Ion Standard Base Bare Tool. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool fe...
$4,586.54 / EA
|
|
| Attributed Data | |||
| Accessory | 52178 UPC 52178 120 V Charger 52178 UPC 52178 120 V Charger | ||
| Battery | 18 V, 3.0 AMP-HR Lithium-Ion 18 V, 3.0 AMP-HR Lithium-Ion | ||
| Battery Charge Time | 1 Hour 1 Hour | ||
| Connector Type | Color-coded lugs and splices Color-coded lugs and splices | ||
| Crimping Capacity | 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices 6 AWG - 500 KCMIL Copper Lugs And Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices | 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al | |
| Crimping Force | 12,000 lbs. (53 kN) LB 12,000 lbs. (53 kN) LB | 12400.000 LB (55.000 KN) 12400.000 LB (55.000 KN) | |
| Handle Type | Pistol Style with over molded rubber grip Pistol Style with over molded rubber grip | ||
| Overall Length | 14.000 IN (355.000 MM) 14.000 IN (355.000 MM) | 14.75 IN (375mm) 14.75 IN (375mm) | |
| Replacement Part | 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger | ||
| Standard | C/US UL Listed C/US UL Listed | ||
| Sub Brand | Gator Gator | ||
| Type | Battery Powered, Open Rubber Covered Head, Quad Point Dieless Battery Powered, Open Rubber Covered Head, Quad Point Dieless | Die style crimper/cutter Die style crimper/cutter | |
| Weight | 12.000 LB (5.400 KG) 12.000 LB (5.400 KG) | ||
| Wire Size | 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al | ||
