EK622PLX12

SKU: EK622PLX12

MPN: EK622PLX12

Key specs

View all
Type
Die style crimper

Description

Product overview

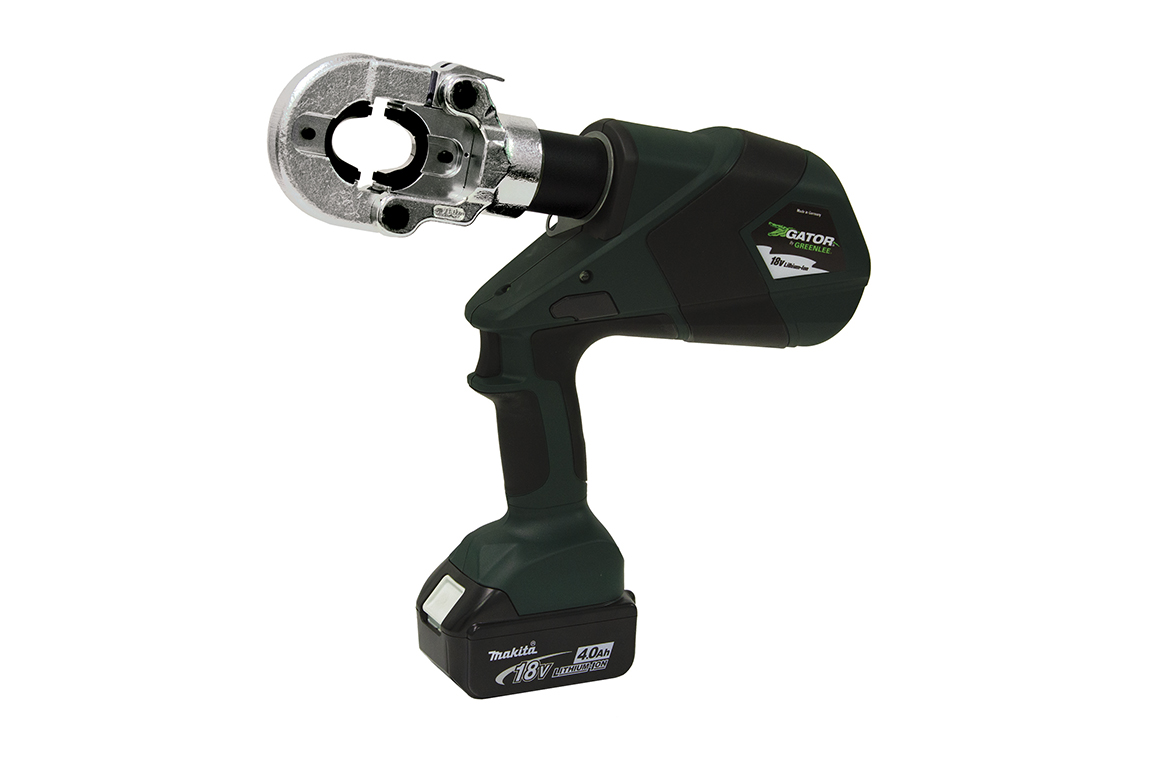

Gator® Battery Powered 6 Ton Crimping Tool Pistol Grip. 12V AC Adapter. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the...

Gator® Battery Powered 6 Ton Crimping Tool Pistol Grip. 12V AC Adapter. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. LED light provides the operator with the battery charge and tool maintenance status. In line tool style is light weight and very easy to control. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping or cutting cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Accepts Greenlee KC22 and KA22 series crimping dies. Includes 04292 die adapters which can be used with all industry "W" style crimping dies and Greenlee KD6 style dies.

Manufacturer highlights

Additional manufacturer notes

Short name
GRN
Feed description
GRN EK622PLX12 CRIMPER P, 6T LI, ST
Invoice description
CRIMPER P, 6T LI, STD, 12V

Specifications

UPC
783310609643
UNSPSC
27111518
Country of Origin
DE
Type
Die style crimper
Connector Type
Color-coded lugs and splices
Crimping Capacity
600 kcmil (MCM) Copper, 350 kcmil (MCM) Al
Crimping Force
12,000 lbs. (53 kN) LB
Handle Type
Pistol Style with over molded rubber grip
Overall Length
15.75 IN (438mm)
Standard
C/US UL Listed
Sub Brand
Gator
Type
Die style crimper
Wire Size
8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al
