Similar item
1005-KLEIN
Crimping and Cutting Tool for Connectors, Crimper crimps 10 to 22 AWG insulated and non-insulated terminals
$31.68 / EA
2 available
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
Videos & documents
Documents
EK6IDCVXB
SKU: EK6IDCVXB
MPN: EK6IDCVXB
Key specs
View all- Type
- 6 Ton Crimping
Description
Product overview

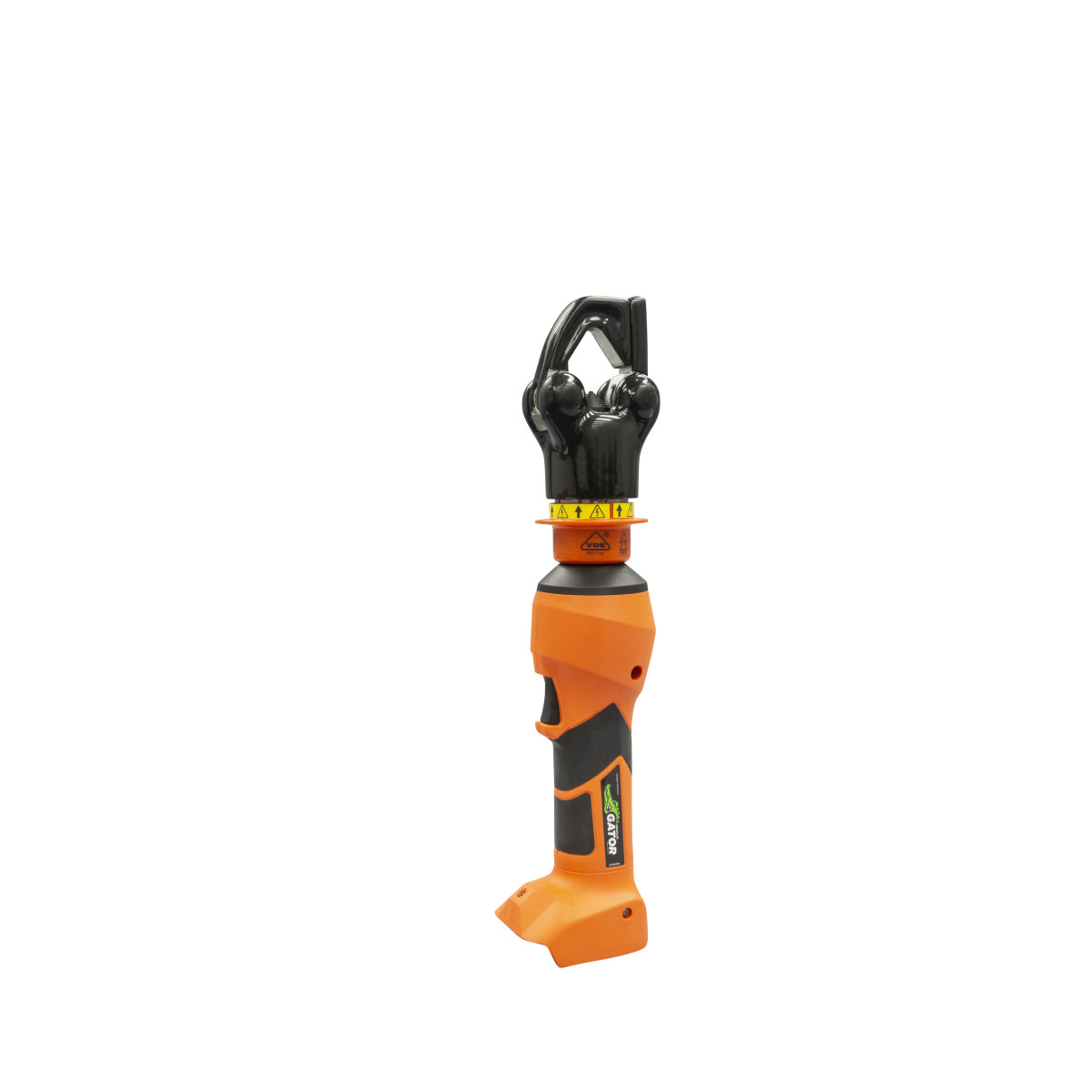

6 Ton Insulated Crimper with 6ID Head. 1000v Insulation. Brush guarded head - helps avoid accidental contact with conductors. Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending). 360° Rotating head - For improved agility in confined work spaces. Double -tap safety feature option -Prevents unintentional operation. Bluetooth® communication
6 Ton Insulated Crimper with 6ID Head. 1000v Insulation. Brush guarded head - helps avoid accidental contact with conductors. Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending). 360° Rotating head - For improved agility in confined work spaces. Double -tap safety feature option -Prevents unintentional operation. Bluetooth® communication
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN EK6IDCVXB CRIMPER, 6T V, 6ID, B
- Invoice description
- CRIMPER, 6T V, 6ID, BARE (PVC)
Specifications
- UPC
- 783310042662
- UNSPSC
- 27111518
- Country of Origin
- DEU
- Type
- 6 Ton Crimping
- Connector Type
- Color-coded lugs and splices
- Crimping Capacity
- Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al, Fine Strand, 8 AWG - 350 Kcmil CuDLO, 8 AWG - 373.3 Kcmil Cu
- Crimping Force
- Variable 3-6 Ton (30-60 kN)
- Handle Type
- In-Line Style with over molded rubber grip
- Overall Length
- 16 IN (406mm)
- Standard
- C/US UL Listed, IEC 62481-1, VDE, CSA, MET Tested
- Sub Brand
- Gator
- Type
- 6 Ton Crimping
Do you have a question about EK6IDCVXB?
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
1010-KLEIN
Long Nose Multi Tool Wire Stripper, Wire Cutters, Crimping Tool, Wire stripper easily cuts and strips 10-20 AWG solid and 12-22 AWG stranded...
$25.97 / EA *
* This is the minimum price that we are able to advertise. Add it to your cart to see our lower price, or call us at (800) 462-7733 .
Available to order
Similar item
1006
Crimping and Cutting Tool for Non-Insulated Terminals, Crimper crimps non-insulated 10 to 22 AWG solderless terminals and connectors
$41.37 / EA
1 available
Similar item
TM-6DF1000
Taskmaster Manual Hydraulic 6 Ton Crimping Tool
$4,390.22 / EA
Available to order
Similar item
N12ID
Dieless Indent Style Hydraulic Crimping Head. Does not require interchangeable crimping dies. Flip-open Crimping head rotates 350° to get...
$7,523.88 / EA
Available to order
Similar item
3005CR
Ratcheting Crimper, 10-22 AWG - Insulated Terminals, Crimps insulated terminals onto 10-22 AWG stranded copper wire
$35.04 / EA
Available to order
Specification comparison
Scan the attributes that differ across these alternatives.
1005-KLEIN View key specs Hide specs
- SKU
- 1005-KLEIN
- Price
-
$31.68 / EA
- Availability
- 2 available
- Cable Size
- —
- Color
- —
- Connector Type
- —
- Crimping Capacity
- 10-22 AWG Insulated and Non-Insulated Terminals
- Crimps
- Yes
- Cuts
- Yes
1010-KLEIN View key specs Hide specs
- SKU
- 1010-KLEIN
- Price
-
$25.97 / EA *
* This is the minimum price that we are able to advertise. Add it to your cart to see our lower price, or call us at (800) 462-7733 .
- Availability
- Available to order
- Cable Size
- —
- Color
- —
- Connector Type
- —
- Crimping Capacity
- 10-22 AWG Insulated, Non-Insulated Terminals, 7-8 mm Ignition Terminals
- Crimps
- Yes
- Cuts
- Yes
1006 View key specs Hide specs
- SKU
- 1006
- Price
-
$41.37 / EA
- Availability
- 1 available
- Cable Size
- —
- Color
- —
- Connector Type
- —
- Crimping Capacity
- 10-22 AWG Non-Insulated Terminals
- Crimps
- Yes
- Cuts
- Yes
TM-6DF1000 View key specs Hide specs
- SKU
- TM-6DF1000
- Price
-
$4,390.22 / EA
- Availability
- Available to order
- Cable Size
- —
- Color
- —
- Connector Type
- —
- Crimping Capacity
- —
- Crimps
- —
- Cuts
- —
N12ID View key specs Hide specs
- SKU
- N12ID
- Price
-
$7,523.88 / EA
- Availability
- Available to order
- Cable Size
- —
- Color
- —
- Connector Type
- —
- Crimping Capacity
- —
- Crimps
- —
- Cuts
- —
3005CR View key specs Hide specs
- SKU
- 3005CR
- Price
-
$35.04 / EA
- Availability
- Available to order
- Cable Size
- Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals
- Color
- Dark Blue
- Connector Type
- Insulated
- Crimping Capacity
- —
- Crimps
- Yes
- Cuts
- Yes
