Gator® 6 Ton Indent Crimper EK6IDLX with 12V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Dual stage telescopic cylinder. The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations. Secondly it crimps smaller cross sections up to 1/0 AWG. The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM. Compact design, low weight and heavy duty performance. The EK6ID offers all well known advantages of the Greenlee Gator line of products. Pressure sensor for the electronic control of crimping operation. Automatic retraction, ARS (Automatic Retraction Stop). Single trigger operation. Extreme Accountability: Risk of wrong selection of dies is eliminated. Clear marking of crimped connectors enables subsequent control. Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools. Gator Eye Compatibility.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

EK6IDLX12

Manufacturer
Greenlee Textron

$4,109.43 / EA

manufacturer discounts
learn about discounts

  • $3,570.95 for $500.00+
  • $3,400.91 for $1,000.00+
  • $3,287.54 for $2,000.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Gator® 6 Ton Indent Crimper EK6IDLX with 12V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Dual stage telescopic cylinder. The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and c...

Gator® 6 Ton Indent Crimper EK6IDLX with 12V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Dual stage telescopic cylinder. The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations. Secondly it crimps smaller cross sections up to 1/0 AWG. The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM. Compact design, low weight and heavy duty performance. The EK6ID offers all well known advantages of the Greenlee Gator line of products. Pressure sensor for the electronic control of crimping operation. Automatic retraction, ARS (Automatic Retraction Stop). Single trigger operation. Extreme Accountability: Risk of wrong selection of dies is eliminated. Clear marking of crimped connectors enables subsequent control. Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools. Gator Eye Compatibility.

150

UPC
783310610984
UNSPSC
27111518
Country of Origin
DE
Type:
Dieless style crimper
Connector Type:
Color-coded lugs and splices
Crimping Capacity:
Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al</li> Fine Strand, 350 Kcmil (MCM) Copper</li> DLO, 373.7 Kcmil (MCM) Copper
Crimping Force:
Variable 3-6 Ton (30-60 kN) LB
Handle Type:
In-Line Style with over molded rubber grip
Overall Length:
15.75 IN (400mm)
Standard:
C/US UL Listed
Sub Brand:
Gator
Type:
Dieless style crimper
Wire Size:
Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al</li>Fine Strand, 8 AWG - 350 Kcmil CuDLO, 8 AWG - 373.3 Kcmil Cu

Recently Viewed

  • placeholder image

    EK6IDLX12

    GREENLEE TEXTRON
    Gator® 6 Ton Indent Crimper EK6IDLX with 12V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED d...
    See more details
  • placeholder image

    IOP2P32N35I

    ADVANCE TRANSFORMER

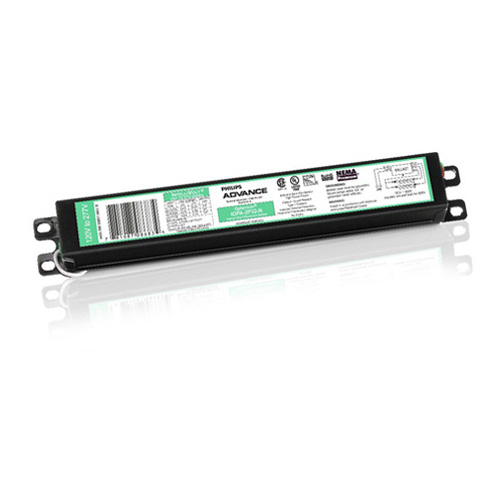

    Ballast, Lamp Type: T8, Number Of Lamps: 2, _BALLAST TYPE: Electronic Fluorescent, Voltage Rating: 120-277V, Wattage: 32 WTT, I
