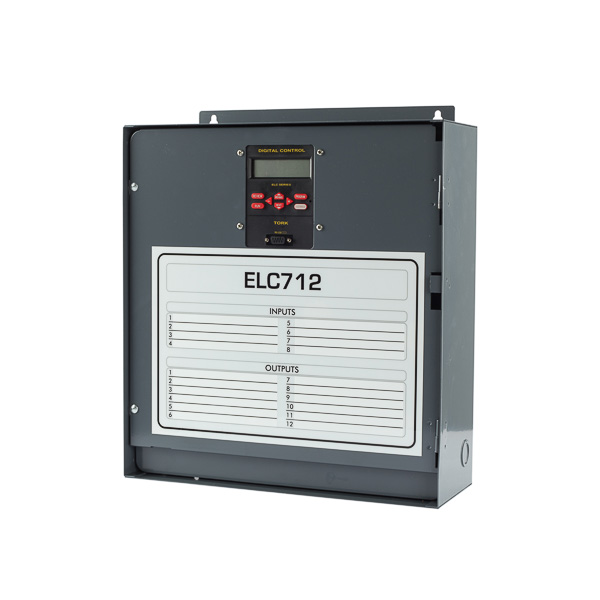

ELC712

Tork 12 Channel SPDT Energy and Lighting Control APPLICATIONS: HVAC Equipment, Indoor/Outdoor Lighting, Meets Indoor/Outdoor Lighting Energy Code Requirements FEATURES: INPUT VOLTAGE: 24/120/208-240/277, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF CHANNELS: 12 Channels TERMINAL RANGE: #10 - #16 AWG for line input #10 - #16 AWG for load output #14 - #22 AWG universal input POWER CONSUMPTION: 10VA Maximum OPERATING TEMPERATURE: - 20 degrees to 145 degrees F (-29 degrees C to +60 degrees C) SCHEDULING: 12... read more

Tork 12 Channel SPDT Energy and Lighting Control APPLICATIONS: HVAC Equipment, Indoor/Outdoor Lighting, Meets Indoor/Outdoor Lighting Energy Code Requirements FEATURES: INPUT VOLTAGE: 24/120/208-240/277, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF CHANNELS: 12 Channels TERMINAL RANGE: #10 - #16 AWG for line input #10 - #16 AWG for load output #14 - #22 AWG universal input POWER CONSUMPTION: 10VA Maximum OPERATING TEMPERATURE: - 20 degrees to 145 degrees F (-29 degrees C to +60 degrees C) SCHEDULING: 128 time based events allow individual programs for each day of the week at a minimum 1 minute apart. Event types include ON, OFF, Duration, or Duty Cycle. SENSOR EVENT: 32 sensor driven events allow individual programs for each day of the week. ASTRONOMIC: Adjustable 10 degrees - 70 degree Northern or Southern latitudes. Settings can be offset from both sunset and sunrise times. UNIVERSAL INPUT: 8 inputs may be assigned to any channel. SWITCHED INPUT: Accepts input from optional momentary or maintained switch. PHOTOSENSOR INPUT: Accepts input from optional sensor. USER DEFINED INPUT: Accepts user supplied 4-20 milliamp sensor. MOMENTARY CONTACT: May be configured for momentary ON/OFF operation to control latching contactors. The unit operates as a 6 channel unit. HOLIDAYS: 26 holidays may be set using 10 individual dates, 10 month type (last Monday in May), or 6 specific holidays with one of 3 independent holiday schedules. BLOCK HOLIDAY: 10 holiday blocks can be set for individual days or for duration of any number of days and may use one of 3 holiday schedules. PULSE/TIME DURATION: 4 different ON settings from 1 second to 23 hours, 59 minutes, 59 seconds. DUTY CYCLE: 4 different ON and OFF patterns from 1 second to 23 hours, 59 minutes, 59 seconds. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. REMOTE OVERRIDE: Universal input may be programmed for timed override from a momentary or maintained dry contact switch. MANUAL OVERRIDE: Keyboard button control until the next regularly scheduled ON or OFF, automatic operation then resumes. STAGGERED START: Optional stagger up time between channels, after a power outage- selectable from 5 seconds, 15 seconds, 30 seconds, 1 minute, 5 minutes, 10 minutes, and 15 minutes. CLOCK FORMAT: AM/PM or 24 hour format. POWER OUTAGE BACKUP: The program and tie of day are maintained for a minimum of 2 days by means of a capacitor. After two days, a lithium battery takes over and provides a minimum accumulated time of 1 year. The lithium battery should provide over 10 years protection. COMPUTER INTERFACE: Unit may be programmed with a PC. ENCLOSURE: Lockable hasp. Metal Indoor NEMA 1 BRAND EQUIVALENT: Intermatic ET91215CR MANUFACTURER: Tork, UPC: 786261825254 CONTACT RATINGS: GENERAL PURPOSE: 120 - 277 VAC NO: 20A NC: 10A BALLAST: 120 VAC NO: 20A NC: 10A 208-277 VAC NO: 10A NC: 3A TUNGSTEN: 120-277 VAC NO: 5A PILOT DUTY: 120 - 240 VAC NO: 470VA NC: 275VA MOTOR: 120 VAC NO: 1HP NC: 1/4HP 208-277 VAC NO: 2HP NC: 1/2HP read less
