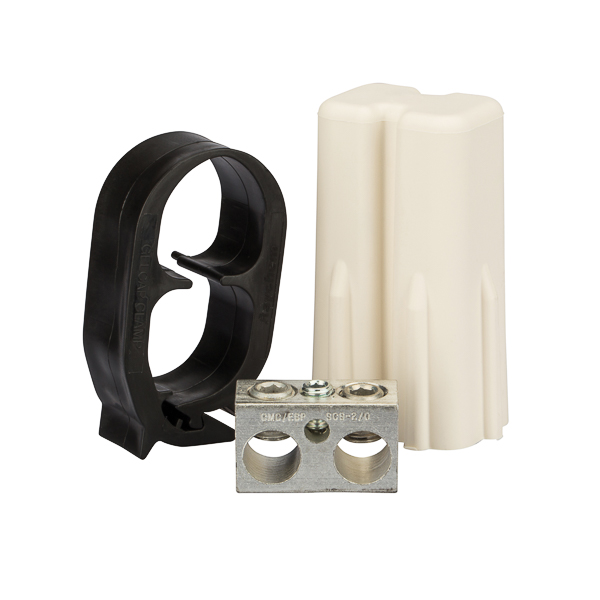

Easy-Splice Gel Stub Splice Kit with Connector Perfect for street light connections. Accepts wires from #14 to 2/0 AWG (feeder cable). Use the single port that accepts #14 to #6 AWG to power the light. Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance. The cap is clear to allow visual inspection of connector positioning during installation and connector performance during service life. Corrosion protection is provided by the sealant gel. APPLICATION: Gel stub splice kit insulates, seals and protects stub splice connections up to 1,000 volts. INSTALLATION: To install, simply push the cover down over the connection and snap the clamp closed. Kit includes a UL listed connector for use with copper and/ or aluminum conductors, a gel filled cap and a cap clamp. Temperature Rating: -40 degrees C to 90 degrees C.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

ESSLK-2/0

Manufacturer
Nsi Industries

$44.19 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Easy-Splice Gel Stub Splice Kit with Connector Perfect for street light connections. Accepts wires from #14 to 2/0 AWG (feeder cable). Use the single port that accepts #14 to #6 AWG to power the light. Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance. The cap is clear to allow visual inspection of connector positioning during installation and connector performance during service life. Corrosion protection is provided by the sealant gel. APP...

Easy-Splice Gel Stub Splice Kit with Connector Perfect for street light connections. Accepts wires from #14 to 2/0 AWG (feeder cable). Use the single port that accepts #14 to #6 AWG to power the light. Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance. The cap is clear to allow visual inspection of connector positioning during installation and connector performance during service life. Corrosion protection is provided by the sealant gel. APPLICATION: Gel stub splice kit insulates, seals and protects stub splice connections up to 1,000 volts. INSTALLATION: To install, simply push the cover down over the connection and snap the clamp closed. Kit includes a UL listed connector for use with copper and/ or aluminum conductors, a gel filled cap and a cap clamp. Temperature Rating: -40 degrees C to 90 degrees C.

150

UPC
662381168603
Color:
White
Type:
Gel Stub Splice Kit
Voltage Rating:
1k V
Cable Size:
(Hole A) - 14-2/0 AWG - (Hole B) - 6-14 AWG
Cable Type:
Class A-B
Color:
White
Number Of Cables:
3
Operating Temperature:
-40 C To 90 C
Standard:
cULus
Sub Brand:
Easy-Splice™
Type:
Gel Stub Splice Kit
Voltage Rating:
1k V
