$4.15 / EA
Local stock: 0
Lead time:
over 7 working days

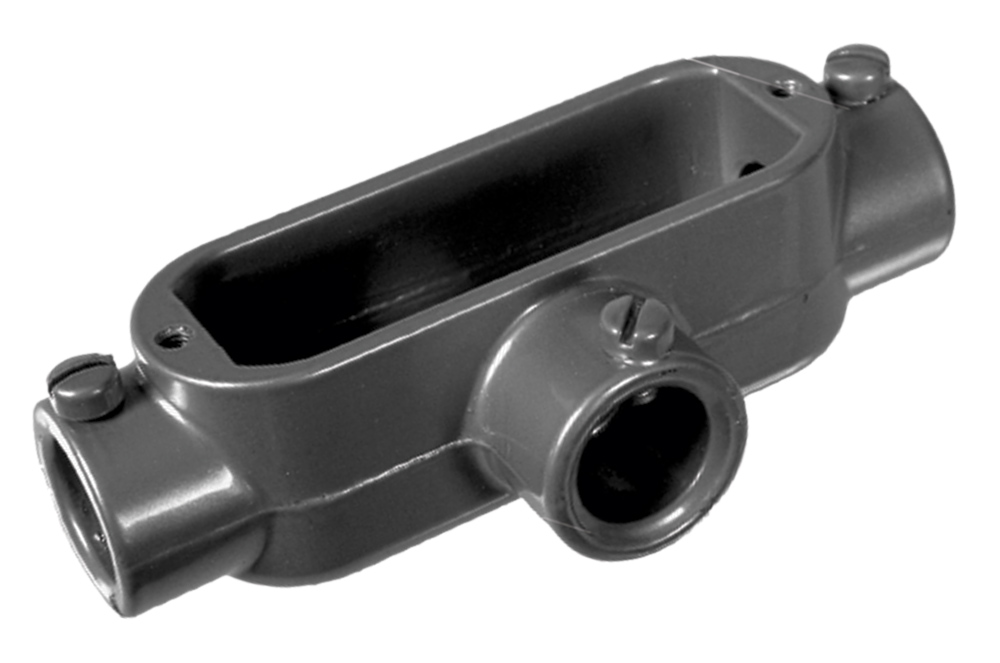

1/2" EMT Set Screw Type T Aluminum Conduit Body
1/2" EMT Set Screw Type T Aluminum Conduit Body
Topaz�s EMT set screw T Type Conduit Body is manufactured from copper free aluminum. T type conduit...150
Topaz�s EMT set screw T Type Conduit Body is manufactured from copper free aluminum. T type conduit bodies allow 3-way inline access in conduit systems, enable easy splicing and can correct and change direction of conduit runs. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; flat back design for easy, flat mounting against surface. UL listed.
- Set screw T type
- Suitable for use in concrete
- Set screw T type
- Suitable for use in concrete
- UPC
- 751338206908
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Die-Cast Aluminum
- Type:
- T Type Conduit Body
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- For Use With:
- EMT Conduit
- Form:
- T
- Height:
- 1.37 in
- Height (IN):
- 1.370 IN
- Hub Size:
- 0.5 in
- Label Description:
- EMT CONDUIT BODY- T TYPE
- Length:
- 4.72 in
- Material:
- Die-Cast Aluminum
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 6.2
- Number of Conductors:
- 1
- Screw Material:
- Steel
- Size (IN):
- 1/2" IN
- Size (trade) (IN):
- 1/2" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- T Type Conduit Body
- WebShop Width (IN):
- 2.030 IN
- Width:
- 2.03 in
- Wire Size:
- 6 AWG
