$329.42 / EA
Local stock: 0
Lead time:
over 7 working days

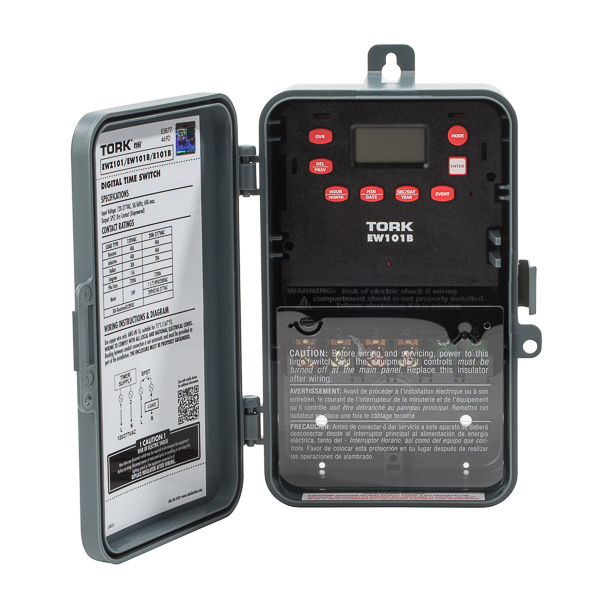

Tork 7 Day 1 Channel SPST Digital Time Switch APPLICATIONS: Outdoor Signs Heating and Air Conditioning Lighting Security FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 120-277 VAC 50/60Hz OUTPUT DRY CONTACTS: SPST POWER CONSUMPTION: 6VA Max. TIMING ACCURACY: Line Frequency SCHEDULING: 20 ON/OFF set points repeat each day. Minimum Setting 1 minute. NO. OF CHANNELS: 1 Channel DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Unti...
Tork 7 Day 1 Channel SPST Digital Time Switch APPLICATIONS: Outdoor Signs Heating and Air Conditioning Lighting Security FEATURES: INPUT SUPPLY: 120-277 VAC 50/60Hz INPUT VOLTAGE: 120-277 VAC 50/60Hz OUTPUT DRY CONTACTS: SPST POWER CONSUMPTION: 6VA Max. TIMING ACCURACY: Line Frequency SCHEDULING: 20 ON/OFF set points repeat each day. Minimum Setting 1 minute. NO. OF CHANNELS: 1 Channel DAYLIGHT SAVINGS: Automatic adjustment (can be omitted) LEAP YEAR: Automatic Compensation MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 4 days of real time backup. ENCLOSURE: Plastic Indoor/Outdoor NEMA 3R with lockable hasp. BRAND EQUIVALENT: Intermatic ET1705C, ET11705CR Paragon ET7004 MANUFACTURER: Tork, UPC: 786261824318 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Rating NO: 40A INDUCTIVE: 120-277VAC. Rating NO: 40A BALLAST: 120VAC. Rating NO: 30A 208-277VAC. Rating NO: 20A TUNGSTEN: 120VAC. Rating NO: 15A PILOT DUTY: 120-277VAC. Rating NO: 720VA MOTOR LOAD: 120VAC. Rating NO: 1HP 208VAC. Rating NO: 1.5 HP 240-277VAC. Rating NO: 2HP RESISTIVE: 28VDC. Rating NO: 30A
150
- UPC
- 786261824318
- Action:
- SPST
- Number Of Poles:
- 1
- Size:
- L=5.062 - H-8.312 - W=3.062 IN
- Type:
- 7 Day Time Switch - 1 Or 2 Channel
- Action:
- SPST
- Base:
- Screw
- Contact Rating:
- 120-277 VAC
- Enclosure:
- NEMA 3R Plastic Indoor-Outdoor
- Environmental Conditions:
- -40 to + 149 F
- Frequency Rating:
- 50-60 Hz
- Initiation:
- Contact
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Temperature:
- -40 to + 149 F
- Phase:
- 1
- Size:
- L=5.062 - H-8.312 - W=3.062 IN
- Standard:
- cULus
- Sub Brand:
- Digital Time Controls
- Timing Range:
- 0-168 h
- Type:
- 7 Day Time Switch - 1 Or 2 Channel
