FNQ-2
SKU: FNQ-2
MPN: FNQ-2
Key specs
View all- Amperage Rating
- 2 A
- Material
- Nickel-plated bronze endcap
- Size
- 13/32 In Diameter X 1-1/2 In Length
- Type
- Fuse
- Voltage Rating
- 500 VAC
Description
Product overview
Eaton Bussmann series FNQ fuse, Time-delay Midget fuse, Motor control transformers, circuits with in-rush currents, 2 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 500 Vac, Nickel-plated bronze endcap, Standard, 500 V
Eaton Bussmann series FNQ fuse, Time-delay Midget fuse, Motor control transformers, circuits with in-rush currents, 2 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 500 Vac, Nickel-plated bronze endcap, Standard, 500 V
Manufacturer highlights
Bussmann offers the broadest selection of Supplemental and Midget fuses in both time-delay and fast-acting designs with voltages as high as 600Vac and...
Bussmann offers the broadest selection of Supplemental and Midget fuses in both time-delay and fast-acting designs with voltages as high as 600Vac and 600Vdc.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS FNQ-2 BUSS MIDGET FUSE
- Invoice description
- BUSS MIDGET FUSE
Specifications
- UPC
- 051712786027
- UNSPSC
- 39121609
- Country of Origin
- MX
- Amperage Rating
- 2 A
- Material
- Nickel-plated bronze endcap
- Size
- 13/32 In Diameter X 1-1/2 In Length
- Type
- Fuse
- Voltage Rating
- 500 VAC
- Amperage Rating
- 2 A
- Class
- Supplemental
- Connection
- Ferrule End X Ferrule End
- Dimensions
- 1.5000 IN X 0.4100 IN X 0.4100 IN
- Interrupt Rating
- 10000 Amp (RMS Symmetrical)
- Material
- Nickel-plated bronze endcap
- Size
- 13/32 In Diameter X 1-1/2 In Length
- Standard
- RoHS Compliant,CE Marked
- Sub Brand
- Bussmann Series
- Type
- Fuse
- Voltage Rating
- 500 VAC
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
MEN5-EDF
Eaton Edison MEN fuse, 250V, 5A, 10 kAIC at 125 Vac, Non Indicating, Time delay, Fiber tube
$6.43 / EA
3 available
Similar item
FNQ-20
Eaton Bussmann series FNQ fuse, Time-delay Midget fuse, Motor control transformers, circuits with in-rush currents, 20 A, Non-indicating, Fe...
$12.87 / EA
13 available
Similar item
FNQ-30
Eaton Bussmann series FNQ fuse, Time-delay Midget fuse, Motor control transformers, circuits with in-rush currents, 30 A, Non-indicating, Fe...
$12.87 / EA
4 available
Similar item
FNM-10-BUSS
Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 10 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,200 AIC at...
$4.47 / EA
11 available
Similar item

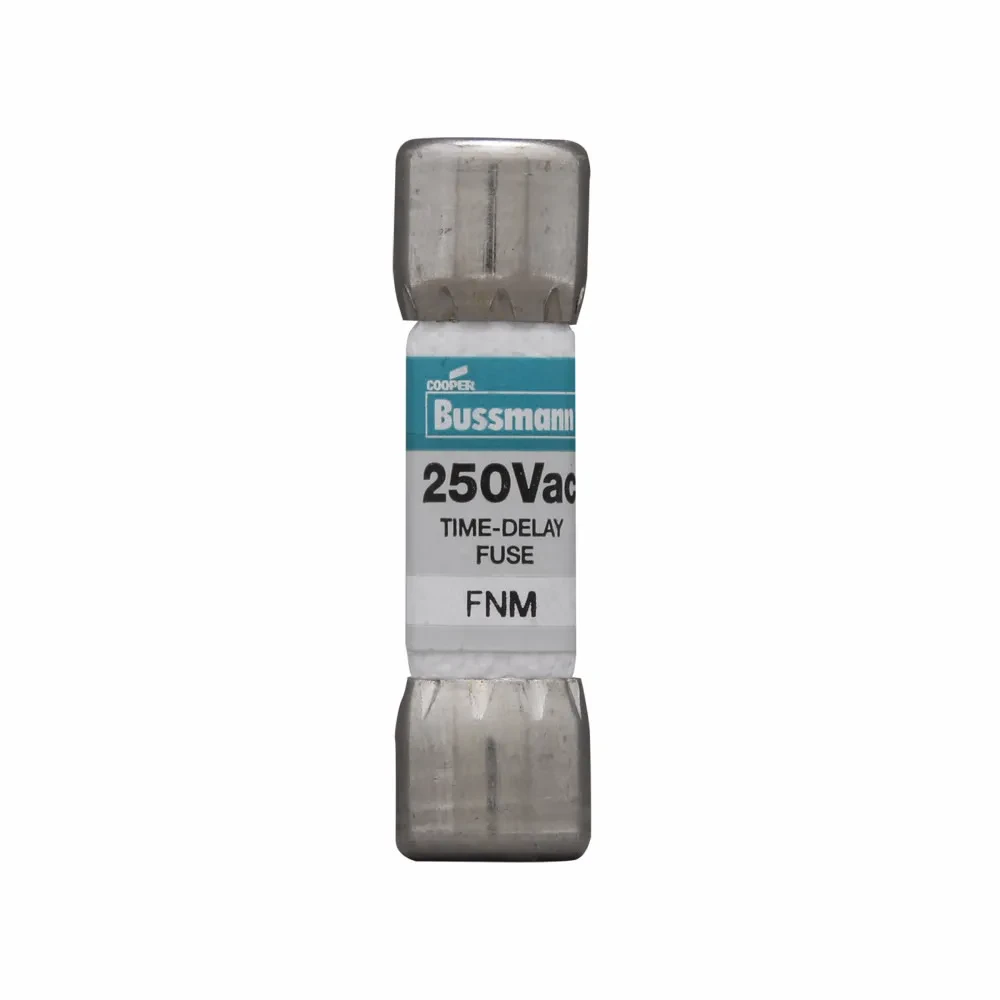

FNM-1/2-BUSS
