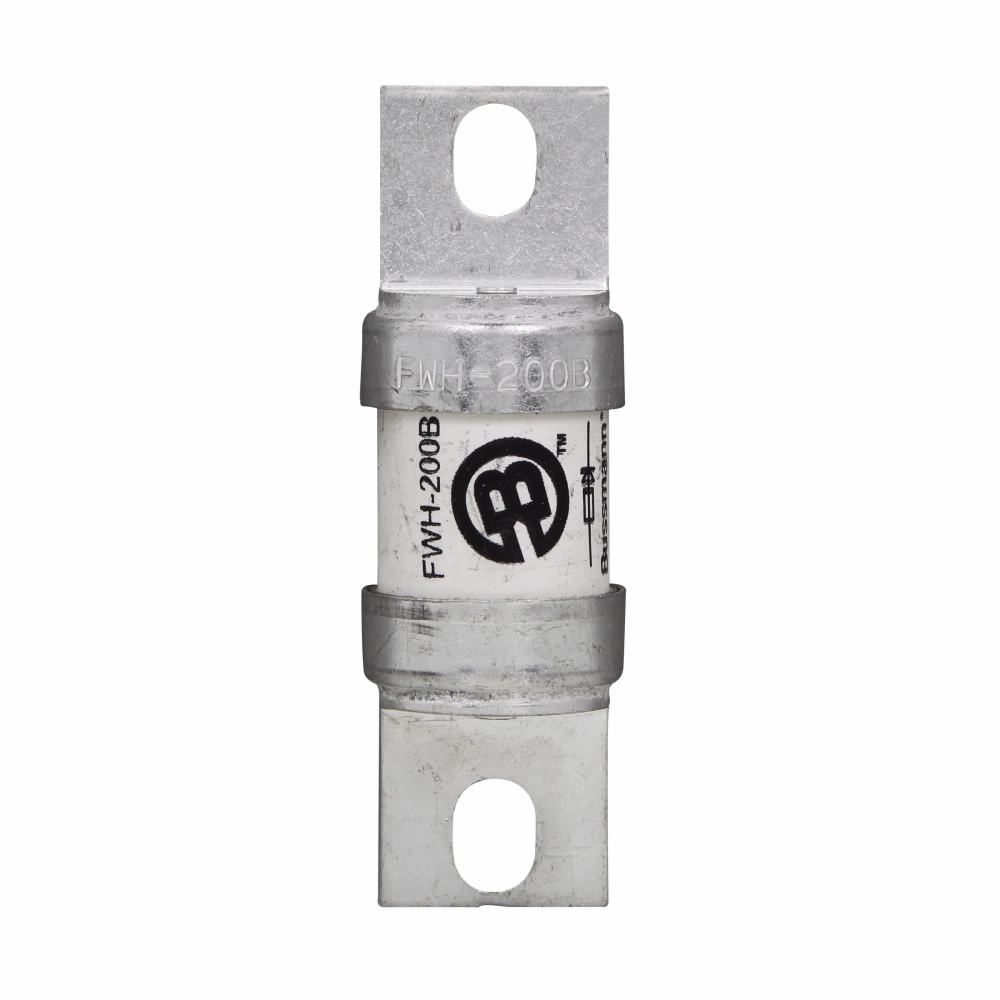

FWH-200B
SKU: FWH-200B-EDF
MPN: FWH-200B
Key specs
View all- Amperage Rating
- 200 A
- Material
- Ceramic
- Size
- 1.156 In Diameter X 3.625 In Length
- Type
- High speed cylindrical fuse
- Voltage Rating
- 500 V
Description
Product overview
Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic
Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (UL), 200A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, None, High speed fuse, Blade end X blade end, Class aR, Stud, White, Ceramic
Manufacturer highlights
Eatons Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable spe...
Eatons Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
Additional manufacturer notes
- Feed description
- BUSS FWH-200B 200A 500V AC TAG FUSE
- Invoice description
- 200A 500V AC TAG FUSE
Specifications
- UPC
- 051712795869
- UNSPSC
- 39121628
- Country of Origin
- IN
- Amperage Rating
- 200 A
- Material
- Ceramic
- Size
- 1.156 In Diameter X 3.625 In Length
- Type
- High speed cylindrical fuse
- Voltage Rating
- 500 V
- Amperage Rating
- 200 A
- Class
- Class aR
- Connection
- Blade end x blade end
- Dimensions
- 3.5827 IN X 1.1811 IN X 1.1811 IN
- Interrupt Rating
- 200 kAIC at 300 Vdc50 kAIC at 300 Vdc
- Material
- Ceramic
- Mounting
- Stud
- Size
- 1.156 In Diameter X 3.625 In Length
- Standard
- UL Recognized ,CSA Certified,RoHS Compliant,CE Marked
- Sub Brand
- Bussmann Series
- Type
- High speed cylindrical fuse
- Voltage Rating
- 500 V
