FXD63B175L

SKU: FXD63B175L

MPN: FXD63B175L

Key specs

View all
Material
N/A
Number Of Poles
3
Type
FXD6
Voltage Rating
600 V

Description

Product overview

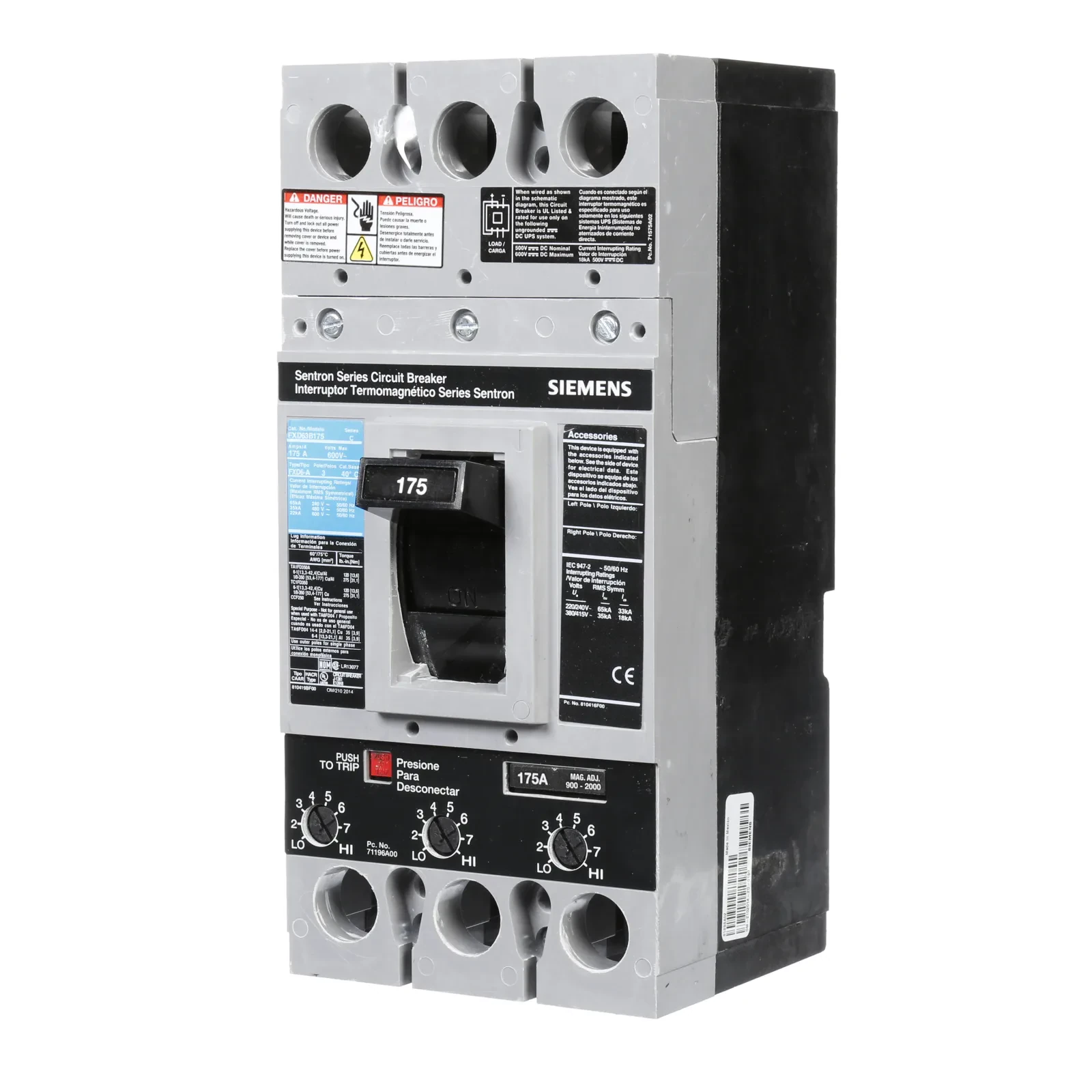

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 175A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 175A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

Manufacturer highlights

Additional manufacturer notes

Feed description
S-A FXD63B175L BRKR FD6 3P 600V 175
Invoice description
BRKR FD6 3P 600V 175A FX LUG

Specifications

UPC
783643005945
Material
N/A
Number Of Poles
3
Type
FXD6
Voltage Rating
600 V
Actuator
Varying
Auxiliary Contacts
N/A
Connection
Line/Load lugs installed
Enclosure
Varying
Environmental Conditions
N/A
Frame
FD
Frequency Rating
50/60 Hz
Height
11.3 in
Interrupt Rating
22KAIC
Length
6.900
Load Rating
N/A
Material
N/A
Number Of Poles
3
Operating Temperature
40C
Standard
HACR
Sub Brand
Sentron
Trip Range
900-2000
Trip Type
Thermal-Magnetic
Type
FXD6
Voltage Rating
600 V
Width
5.600

Rate this product

Do you have a question about FXD63B175L?

Videos & documents

Documents

Brochure Url Usage Guide

FXD63B175L

$7,188.07 / EA
