GL1N-38
SKU: GL1N-38
MPN: GL1N-38
Key specs
View all- Color
- Green
- Material
- Copper
- Size
- L=2.36 - W=.670 - OD=.470 - ID=.360
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

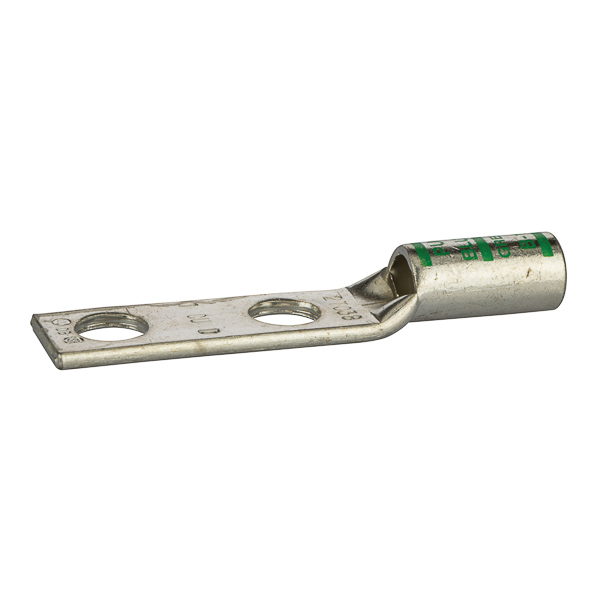

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL1N-38 CU CMP Lug Short 1 AWG
- Invoice description
- CU CMP Lug Short 1 AWG 3/8 Bolt-1 Spac
Specifications
- UPC
- 662381338129
- Color
- Green
- Material
- Copper
- Size
- L=2.36 - W=.670 - OD=.470 - ID=.360
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- # 1 AWG (STR)
- Color
- Green
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Hole
- Number Of Holes
- 2
- Size
- L=2.36 - W=.670 - OD=.470 - ID=.360
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
