Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$83.24 / EA
Local stock: 0
Lead time:
over 7 working days

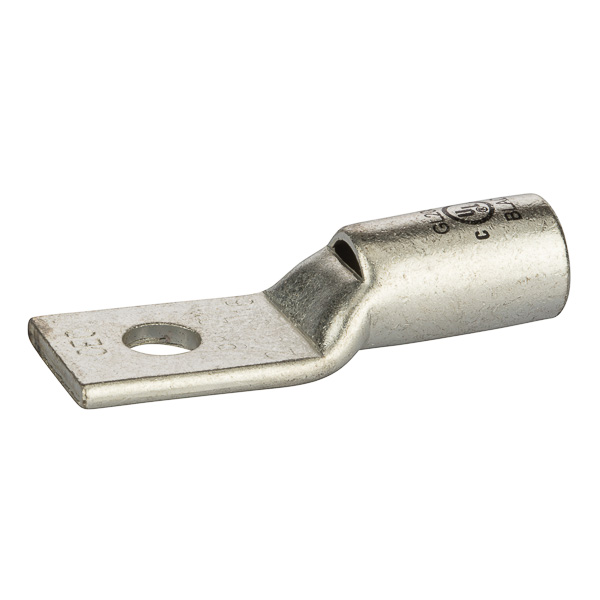

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 2/0 AWG - 5/16" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 2/0 AWG - 5/16" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381036315
- Color:
- Black
- Material:
- Copper
- Size:
- L=2.24 - W=.810 - OD=.560 - ID=.440
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 2/0 AWG (STR)
- Color:
- Black
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 5/16 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=2.24 - W=.810 - OD=.560 - ID=.440
- Standard:
- UL486
- Stud Size:
- 0.3125 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
