Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$91.29 / EA
Local stock: 0
Lead time:
over 7 working days

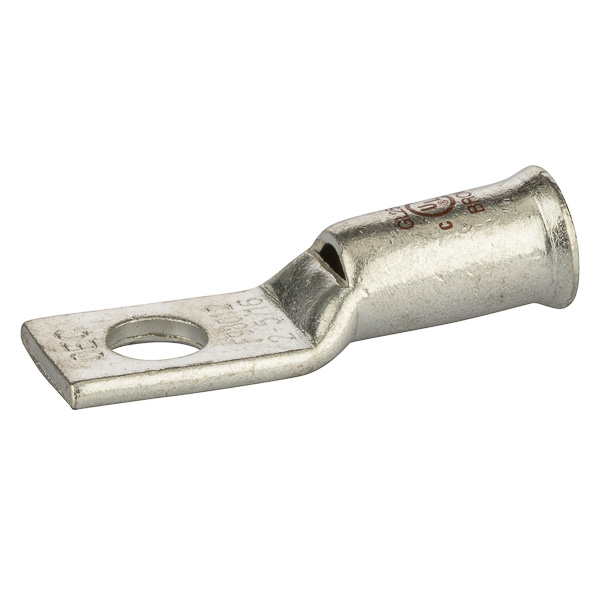

1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable2 AWG- 5/16" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Ra...
1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable2 AWG- 5/16" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
150
- UPC
- 662381036704
- Color:
- Brown
- Material:
- Copper
- Size:
- L=1.80 - W=.600 - OD=.420 - ID=.310
- Type:
- Short Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
- Cable Size:
- # 2 AWG (STR)
- Color:
- Brown
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 5/16 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=1.80 - W=.600 - OD=.420 - ID=.310
- Standard:
- UL486
- Stud Size:
- 0.3125 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
