GL2N-38
SKU: GL2N-38
MPN: GL2N-38
Key specs
View all- Color
- Brown
- Material
- Copper
- Size
- L=2.83 - W=.600 - OD=.420 - ID=.310
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

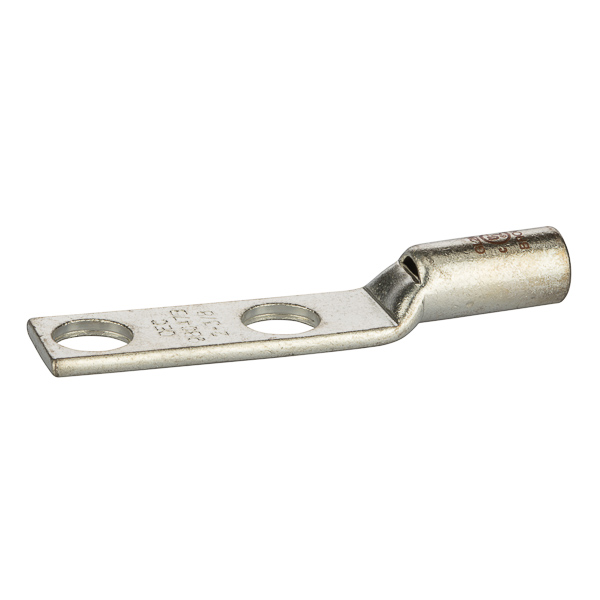

2HoleShort Barrel Copper Compression Lug w/ PeepHole2AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2HoleShort Barrel Copper Compression Lug w/ PeepHole2AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL2N-38 CU CMP Lug Short 2 AWG
- Invoice description
- CU CMP Lug Short 2 AWG 3/8 Bolt 1 Spac
Specifications
- UPC
- 662381338099
- Color
- Brown
- Material
- Copper
- Size
- L=2.83 - W=.600 - OD=.420 - ID=.310
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- # 2 AWG (STR)
- Color
- Brown
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Holes
- Number Of Holes
- 2
- Size
- L=2.83 - W=.600 - OD=.420 - ID=.310
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
