GL338
SKU: GL338
MPN: GL338
Key specs
View all- Color
- White
- Material
- Copper
- Size
- L=2.15 - W=.530 - OD=.380 - ID=.280
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

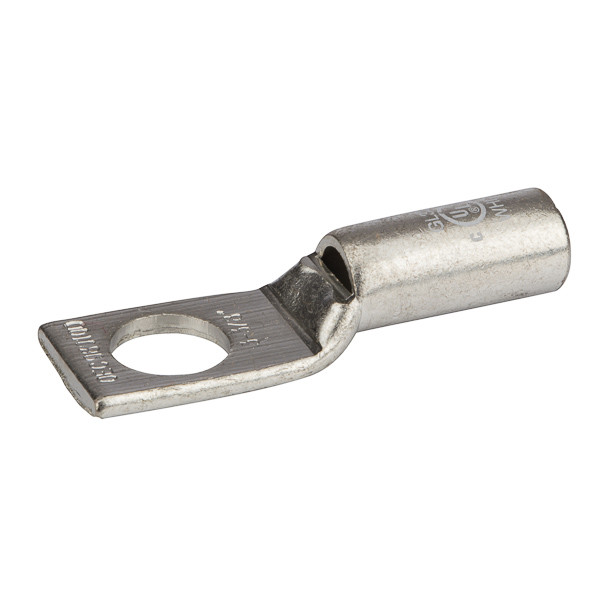

1 HoleShort Barrel Copper Compression Lug w/ PeepHole3 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole3 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL338 CU CMP Lug Short 3 AWG 3/
- Invoice description
- CU CMP Lug Short 3 AWG 3/8 Bolt Size
Specifications
- UPC
- 662381336972
- Color
- White
- Material
- Copper
- Size
- L=2.15 - W=.530 - OD=.380 - ID=.280
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- # 3 AWG (STR)
- Color
- White
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=2.15 - W=.530 - OD=.380 - ID=.280
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
