Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
GL35048
SKU: GL35048
MPN: GL35048
Key specs
View all- Color
- Red
- Material
- Copper
- Size
- L=2.61 - W=1.28 - OD=.870 - ID=.700
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

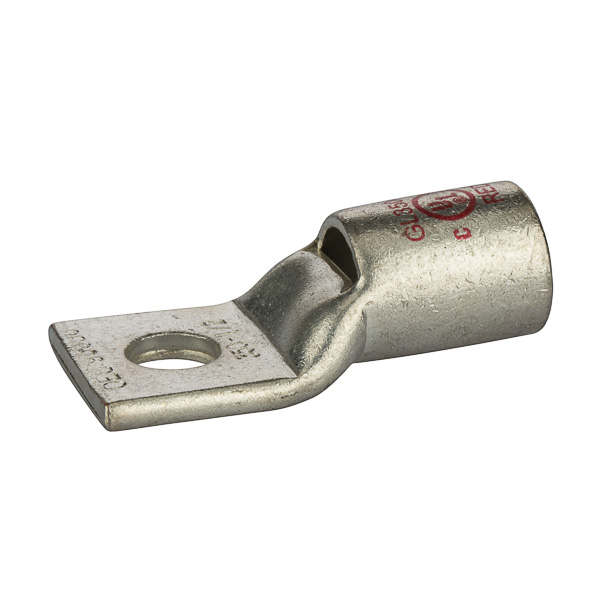

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 350 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 350 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL35048 CU CMP Lug Short 350 MC
- Invoice description
- CU CMP Lug Short 350 MCM 1/2 Bolt Size
Specifications
- UPC
- 662381036162
- Color
- Red
- Material
- Copper
- Size
- L=2.61 - W=1.28 - OD=.870 - ID=.700
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 350 MCM (STR)
- Color
- Red
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 1/2 Mounting Hole
- Number Of Holes
- 1
- Size
- L=2.61 - W=1.28 - OD=.870 - ID=.700
- Standard
- UL486
- Stud Size
- 0.5 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
